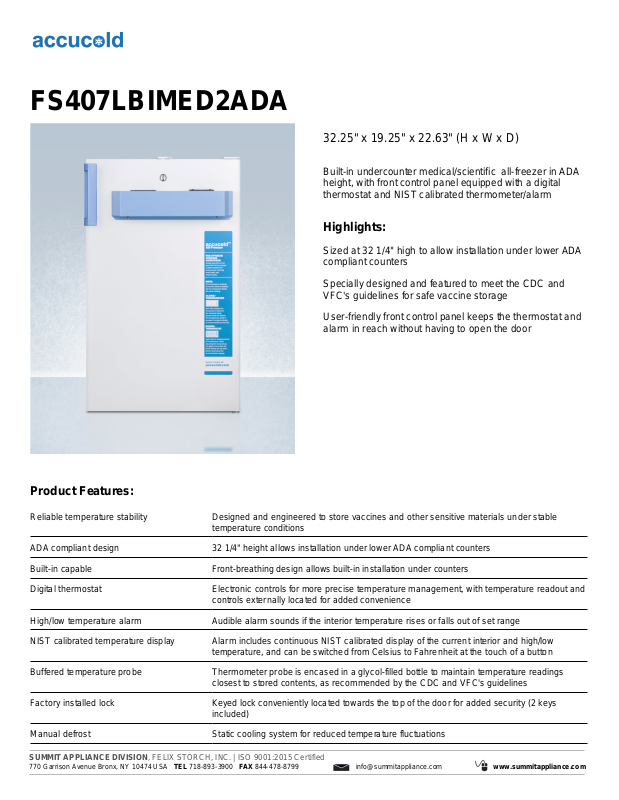

AccuCold FS407LBIMED2ADA Specifications

FS407LBIMED2ADA

32.25" x 19.25" x 22.63" (H x W x D)

Built-in undercounter medical/scientific all-freezer in ADA
height, with front control panel equipped with a digital
thermostat and NIST calibrated thermometer/alarm

Highlights:

Sized at 32 1/4" high to allow installation under lower ADA
compliant counters

Specially designed and featured to meet the CDC and
VFC's guidelines for safe vaccine storage

User-friendly front control panel keeps the thermostat and
alarm in reach without having to open the door

Product Features:

Reliable temperature stability Designed and engineered to store vaccines and other sensitive materials under stable

temperature conditions
ADA compliant design 32 1/4" height allows installation under lower ADA compliant counters
Built-in capable Front-breathing design allows built-in installation under counters
Digital thermostat Electronic controls for more precise temperature management, with temperature readout and

controls externally located for added convenience
High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display Alarm includes continuous NIST calibrated display of the current interior and high/low

temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings

closest to stored contents, as recommended by the CDC and VFC's guidelines
Factory installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys

included)
Manual defrost Static cooling system for reduced temperature fluctuations

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FS407LBIMED2ADA Specifications:

Overview

Height of Cabinet 32.25" (82 cm)
Width 19.25" (49 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.6
Weight 70.0 lbs. (32 kg)
Shipping Weight 73.0 lbs. (33 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 26.5" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4
Compressor Step Height 8.63" (22 cm)
Compressor Step Width 14.0" (36 cm)
Compressor Step Depth 7.0" (18 cm)

ETL-C
