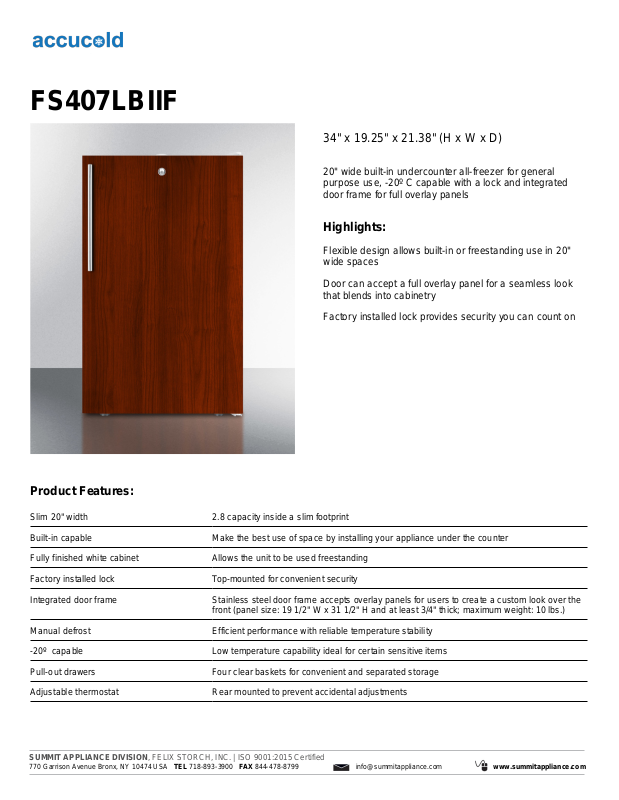

Accucold FS407LBIIF Specification Sheet

FS407LBIIF

34" x 19.25" x 21.38" (H x W x D)

20" wide built-in undercounter all-freezer for general
purpose use, -20º C capable with a lock and integrated
door frame for full overlay panels

Highlights:

Flexible design allows built-in or freestanding use in 20"
wide spaces

Door can accept a full overlay panel for a seamless look
that blends into cabinetry

Factory installed lock provides security you can count on

Product Features:

Slim 20" width 2.8 capacity inside a slim footprint
Built-in capable Make the best use of space by installing your appliance under the counter
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Top-mounted for convenient security
Integrated door frame Stainless steel door frame accepts overlay panels for users to create a custom look over the

front (panel size: 19 1/2" W x 31 1/2" H and at least 3/4" thick; maximum weight: 10 lbs.)

Manual defrost Efficient performance with reliable temperature stability

-20º capable Low temperature capability ideal for certain sensitive items
Pull-out drawers Four clear baskets for convenient and separated storage
Adjustable thermostat Rear mounted to prevent accidental adjustments

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FS407LBIIF Specifications:

Overview

Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4

ETL-C
