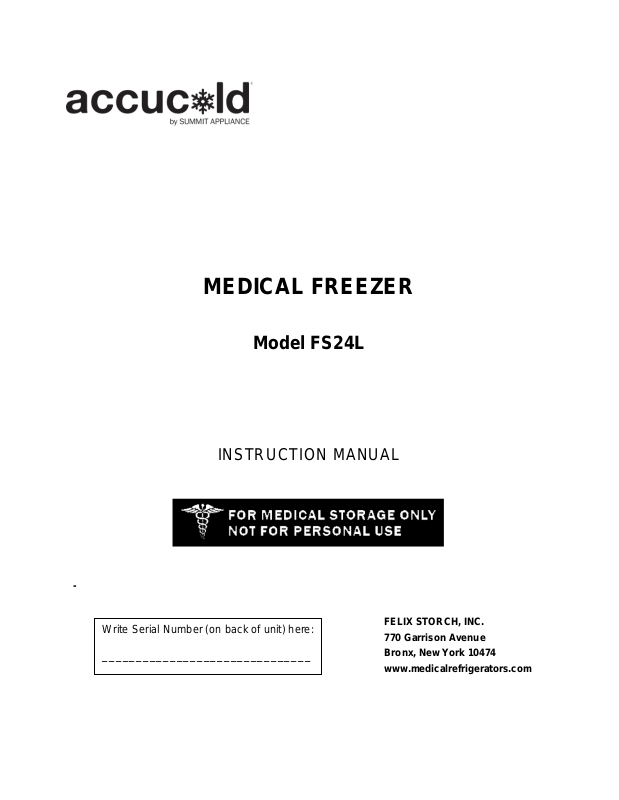

FELIX STORCH, INC.

Write Serial Number (on back of unit) here:

MEDICAL FREEZER

Model FS24L

INSTRUCTION MANUAL

_______________________________

770 Garrison Avenue Bronx, New York 10474 www.medicalrefrigerators.com

Important Safeguards ....................................................................... 2 – 3

Installation Instructions .................................................................... 4 – 5

Before using your freezer ................................................................ 4

Installing your freezer ...................................................................... 4

Electrical connection ................................................................. 4 - 5

Reversing the door swing of your appliance ................................... 5

Operation .................................................................................................. 6

Setting the temperature control ....................................................... 6

Care and Maintenance ...................................................................... 6 – 7

Defrosting your freezer ................................................................... 6

Cleaning your freezer ...................................................................... 6

Vacation time .................................................................................. 7

Moving your freezer ........................................................................ 7

Energy-saving tips .......................................................................... 7

Problems with your Freezer .................................................................... 8

Limited Warranty ................................................................................... 11

IMPORTANT SAFEGUARDS

Before the appliance is used, it must be properly pos itioned and installed as described in this manual, so read the manual carefully. To reduc e the risk of fire, electrical shock or injury when using the appliance, follow basic precautions, including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• It is recommended that a separate circuit, servi ng onl y your appliance, be provided. Use receptacles that cannot be turned off by a switch or pull chain.

• Never clean freezer parts with flammable flui ds. These fumes can create a fire hazard or explosion.

• Do not store or use gasoline or other flammable vapors and liquids inside or in the vicinity of this or any other appliance. The fumes can create a fire hazard or expl osion.

• Do not use inflammable sprays in the vicinity of the appliance.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the

unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect power bef ore cleaning or servicing. Failure to do so can

result in electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

• DANGER! Risk of child entrapment!

Child entrapment and suffocation are not problem s of the past. Junked or abandoned appliances are still dangerous, even if they wil l " jus t sit in the garage a few days."

√ Before you throw away your old refrigerator or freezer: Take off the doors. Leave the

shelves in place so that children may not easily climb inside.

√ Never allow children to operate, play with, or crawl inside the appliance.

• Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an area protec ted from the elements, such as wind, rain, water spray or drips.

• The freezer should not be located next to ovens, radiators or other sources of high heat.

• The freezer must be installed with all electrical , water and drain connections in accordance with

state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and l ocal codes and ordinances is required.

• Do not kink or pinch the power supply cord of the freezer.

• The fuse (or circuit breaker) size should be 15 amperes.

• It is important for the appliance to be leveled in order to work properly. You may need to make

several adjustments to level it.

• Check for leaks after connection.

• This appliance is not intended for use by persons (including children) with reduced phys ical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• IMPORTANT: Do not use mechanical devices or other m eans to accelerate the defrosting process, other than those recommended by the manufacturer.

• IMPORTANT: Do not damage the refrigerant circ uit .

• IMPORTANT: Do not use electrical appliances inside the storage compartment of the appliance

unless they are of the type recommended by the manufacturer.

• Do not use solvent-based cleaning agents or abrasi ves on the interior. These cleaners may damage or discolor the interior.

MODEL FS24L IS DESIGNED FOR MEDICAL OR PHARMACEUTICAL USE ONLY. IT IS NOT

•

INTENDED FOR USE AS A HOUSEHOLD FREEZER.

intended purpose.

Do not use this apparatus for other than its

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS



 Before Using Your Freezer

• Remove the exterior and interior packing.

• Before connecting the freezer to the power source, l et it stand upright for approximately 2

hours. This will reduce the possibili ty of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm wat er using a soft cloth.

 Installing Your Freezer

• This appliance is designed to be free standing only, and should not be recessed or built-in.

• Place your freezer on a surface that is strong enough to suppor t it when it is full y loaded. To

level your appliance, adjust the leveling l eg at the bottom of the freezer.

• Allow about 5” (12 cm) of spac e at the back and sides of the appliance an d 4” (10 cm ) at the

top. This will allow the proper air circulation t o cool the compressor.

• Locate the appliance away from di rect sunlight and sources of heat (oven, heater, radiat or,

etc.). Direct sunlight may affect the acrylic coati ng and heat sources may increase electrical consumption. Extremely cold ambient temperatures may also cause the freezer not to perform properly.

• Avoid locating the appliance in moist areas.

• Plug the appliance into an exclusive, properly installed and grounded wall outlet. Do not

under any circumstances cut or remove the third (ground) pron g from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours

before placing items inside the cabinet.

 Electrical Connection

Improper use of the grounded plug can result in t he ris k of electrical shock. If the power cord is damaged, have it replaced by an authorized servi ce center.

Warning

• This appliance should be properly grounded for your safety. The power cord is equipped

with a three-pin plug that mates with standard three-prong wall outlets to minimize the possibility of electrical shock.

• Do not under any circumstances cut or remove the third groun d prong from the power cord

supplied.

• This freezer requires a standard 115Volts AC ~ 60Hz electrical outlet with three-prong

grounded receptacle.

• To prevent accidental injury, the cord should be s ecured behind the appliance and not left

exposed or dangling.

• Never unplug the freezer by pulling the power cord. Always grip the plug firmly and pull

straight out from the receptacle.

• Do not use an extension cord with this appliance. If the power cord is too short, have a

qualified electrician or service technician install an outlet near the appliance.

 Reversing the Door Swing of Your Appliance

This freezer has the capability of the door opening from ei ther the left or right side. The unit is delivered to you with the door opening from the lef t side. Should you desire to reverse the opening direction, you can refer to the diagram below. If you have a problem, call ACCUCOLD® Customer Service at 1-800-932-4267.

OPERATION

 Setting the Temperature Control

• To control the internal temperature, adjust the control dial according to the ambient temperature or intended use of the freezer.

• The first time you turn the unit on, set the temperature control to Max.

• The range of the temperature control is from position OFF to Max. After 24 to 48 hours,

adjust the temperature control to the setting that best suits your needs. The setting of Normal should be appropriate for most circ ums tances.

NOTE: If the freezer is unplugged, has lost power, or is turned off , you must wait 3 to 5 minutes

before restarting the unit. If you attempt to rest art before this time delay, the freezer will not start.

CARE AND MAINTENANCE

 Defrosting Your Freezer

• This appliance requires manual defrosting. Before defrosting the unit, remove the contents of the freezer, then set the thermostat to OFF (the compressor will stop working). Leave the door open until ice and frost are completely melt ed. To speed up defrosting, you can place a container of warm water (about 125°F) into the c abinet . Soak up the melt water with clean toweling or a sponge and be sure the interior is dry before turning the thermostat back to its normal setting.

• NOTE: It is not advisable to heat the interior of t he freez er directly with hot water or a hair dryer while defrosting since this can deform the cabi net interior.

• Never use a sharp or metallic object to help rem ove the ice from the walls of the freezer as this can damage the evaporator coils and invalidate your warranty. Ins tead, use the plastic scraper included with the freezer.

 Cleaning Your Freezer

• Turn the temperature control to OFF, unplug the f reezer and remove the contents , including shelves and trays.

• Wash the inside surfaces with a warm wat er and baking soda solution. The solution sh ould consist of about 2 tablespoons of baking soda to a quart of water.

• Wash the shelves and trays with a mild detergent solution.

• The outside of the freezer should be cleaned with mild detergent and warm water.

• Wring excess water out of the sponge or cloth before cleaning the area of the controls, or

any electrical parts.

• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

 Vacation Time

• Short vacations: Leave the freezer operating during vacations of less than three weeks.

• Long vacations: If the freezer will not be used for several months, remove contents and unplug

the power cord. Clean and dry the interior thoroughly. To prevent odor and m old growth, leave the door open slightly, blocking it open if necessary.

 Moving Your Freezer

• Remove all stored items.

• Securely tape down all loose items, such as shelves, inside your freezer.

• Turn the leveling screw up to the base to avoid damage.

• Tape the door shut.

• Be sure the freezer stays secure in the upright position during trans portation. Also protect

the outside of the freezer with a blanket or similar item.

 Energy-Saving Tips

• The freezer should be located in the coolest area of the room, away from heat-producing appliances, and out of the direct sunlight.

• Let warm items cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor to run longer.

• Be sure to package stored items properly and wipe containers dry before pl acing them in the freezer. This cuts down on frost build-up inside the appliance.

• Freezer shelves should not be lined w it h alumi num f oil, wax pa per, or p ape r t oweli ng. Li ners interfere with cold air circulation, making the f reezer less efficient.

• Organize and label items to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

PROBLEMS WITH YOUR FREEZER

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you c an sol ve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE

Freezer does not operate. Not plugged in.

Circuit breaker has tripped or fuse has blown. The freezer temperature control is set at OFF.

Turns on and off frequently. The room temperature is warmer than normal.

A large number of items have been added to

the freezer. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The freezer does not have the correct

clearances.

Vibrations Check to be sure the appliance is level. The freezer seems to make too much noise. A rattling noise may come from the flow of the

refrigerant, which is normal. As each cycle ends, you may hear gurgling

sounds caused by the flow of refrigerant in

your freezer. Contraction and expansion of the inside walls

may cause popping and crackling noises. The freezer is not level.

The door will not close properly. The freezer is not level.

The door was reversed and not properly

installed. The gasket is dirty. Shelves, bins, or baskets are out of position.

If your appliance shows other symptoms than those described above, or if you have checked all items listed as the cause and the problem sti ll exi sts, then call ACCUCOLD® Customer Service at

1-800-932-4267

NOTES

For parts and accessory ordering,

LIMITED WARRANTY

WARNING! This product may contain chemicals known to the state of California to

ONE YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purc hase, when thi s appliance is operat ed and maintained according to instruct ions attached t o or furnished with the product , warrantor will p ay for factory-specified parts and repair labor to correct defect s in materials or workmanship. Service must be provided by a designated service company. Outside the 48 st ates, all parts are warranted for one ye ar from manufacturing defects. Plastic parts, shelves and cabinets ar e warranted to be manufactured to commercially acc eptable standards, and are not covered from damage during handling or breakage.

5 YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.

2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instr uct you how to use your appliance, to replace or repair fuses or to correct wiring or p l um bing.

2. Service calls to repair or replace appliance light bulbs or br oke n shelves. Consumable parts (such as filters) are excluded from warranty covera ge.

3. Damage resulting from accident , alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by wa rrantor.

4. Replacement parts or repair labor co sts for units operated outside the United States.

5. Repairs to parts or systems resulti ng from unauthorized modifications made to the appliance.

6. Expenses for travel and transportation for product service in remote locations.

7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not inst alled in accordance with published inst all ation instructions.

DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTI AL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

cause cancer or birth defects or other reproductive harm. For more information, visit: www.summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in concentrations higher than threshold limits: NONE.

FELIX STORCH, INC. 770 Garrison Avenue Bronx, NY 10474 Phone: (718) 893-3900 Fax: (844) 478-8799 www.medicalrefrigerators.com

troubleshooting and helpful hints, visit :

www.summitappliance.com/support
