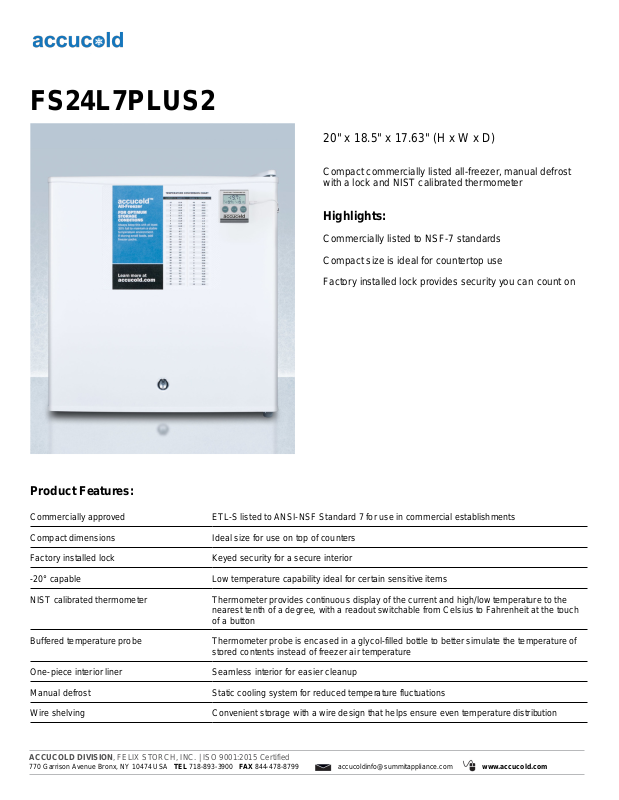

AccuCold FS24L7PLUS2 Brochure

FS24L7PLUS2

20" x 18.5" x 17.63" (H x W x D)

Compact commercially listed all-freezer, manual defrost
with a lock and NIST calibrated thermometer

Highlights:

Commercially listed to NSF-7 standards
Compact size is ideal for countertop use
Factory installed lock provides security you can count on

Product Features:

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Compact dimensions Ideal size for use on top of counters
Factory installed lock Keyed security for a secure interior

-20° capable Low temperature capability ideal for certain sensitive items
NIST calibrated thermometer Thermometer provides continuous display of the current and high/low temperature to the

nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch
of a button

Buffered temperature probe Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of

stored contents instead of freezer air temperature
One-piece interior liner Seamless interior for easier cleanup
Manual defrost Static cooling system for reduced temperature fluctuations
Wire shelving Convenient storage with a wire design that helps ensure even temperature distribution

ACCUCOLD DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.accucold.com

FS24L7PLUS2 Specifications:

Overview

Height of Cabinet 19.63" (50 cm)
Height to Hinge Cap 20.0" (51 cm)
Width 18.5" (47 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 35.0 lbs. (16 kg)
Shipping Weight 55.0 lbs. (25 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)

ETL-C
