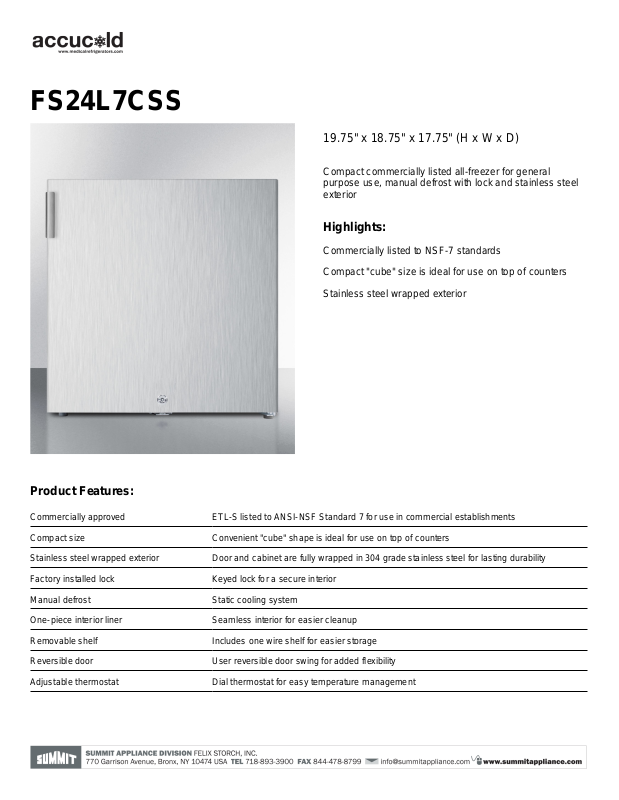

AccuCold FS24L7CSS Instruction Manual

FS24L7CSS

19.75" x 18.75" x 17.75" (H x W x D)

Compact commercially listed all-freezer for general
purpose use, manual defrost with lock and stainless steel
exterior

Highlights:

Commercially listed to NSF-7 standards
Compact "cube" size is ideal for use on top of counters
Stainless steel wrapped exterior

Product Features:

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Compact size Convenient "cube" shape is ideal for use on top of counters
Stainless steel wrapped exterior Door and cabinet are fully wrapped in 304 grade stainless steel for lasting durability
Factory installed lock Keyed lock for a secure interior
Manual defrost Static cooling system
One-piece interior liner Seamless interior for easier cleanup
Removable shelf Includes one wire shelf for easier storage
Reversible door User reversible door swing for added flexibility
Adjustable thermostat Dial thermostat for easy temperature management

FS24L7CSS Specifications:

Overview

Height to Cabinet 19.75"
Height to Hinge Cap 20.0"
Width 18.75"
Depth 17.75"
Depth with Handle 18.5"
Depth with door at 90° 34.75"
Capacity 1.4 cu.ft.
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 41.0 lbs.
Shipping Weight 65.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 14.38"
Interior Width 13.5"
Interior Depth 13.25"
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
Level Legs 2
Compressor Step Height 8.5"
Compressor Step Width 13.5"
Compressor Step Depth 6.0"

ETL-C
