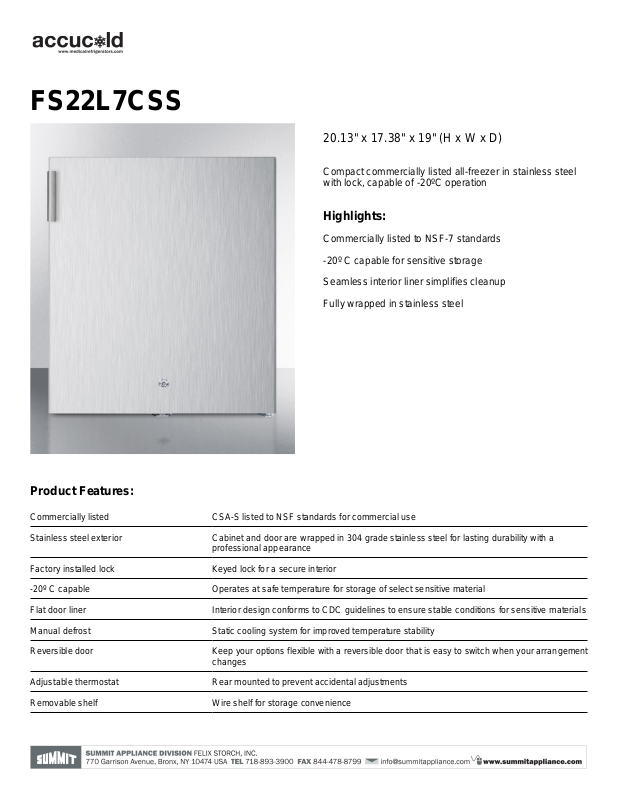

Accucold FS22L7CSS Specification Sheet

FS22L7CSS

20.13" x 17.38" x 19" (H x W x D)

Compact commercially listed all-freezer in stainless steel
with lock, capable of -20ºC operation

Highlights:

Commercially listed to NSF-7 standards

-20º C capable for sensitive storage
Seamless interior liner simplifies cleanup
Fully wrapped in stainless steel

Product Features:

Commercially listed CSA-S listed to NSF standards for commercial use
Stainless steel exterior Cabinet and door are wrapped in 304 grade stainless steel for lasting durability with a

professional appearance

Factory installed lock Keyed lock for a secure interior

-20º C capable Operates at safe temperature for storage of select sensitive material
Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Manual defrost Static cooling system for improved temperature stability
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement

changes
Adjustable thermostat Rear mounted to prevent accidental adjustments
Removable shelf Wire shelf for storage convenience

FS22L7CSS Specifications:

Overview

Height 20.13"
Height to Hinge Cap 20.5"
Width 17.38"
Depth 19.0"
Capacity 1.42 cu.ft.
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety CSA
Canadian Electrical

Safety
Sanitation CSA-S
Energy Usage/Year 272.0kWh/year
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs.
Shipping Weight 55.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 14.63"
Interior Width 12.38"
Interior Depth 14.5"
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.67 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0"
Compressor Step Width 12.38"
Compressor Step Depth 6.0"

CSA
