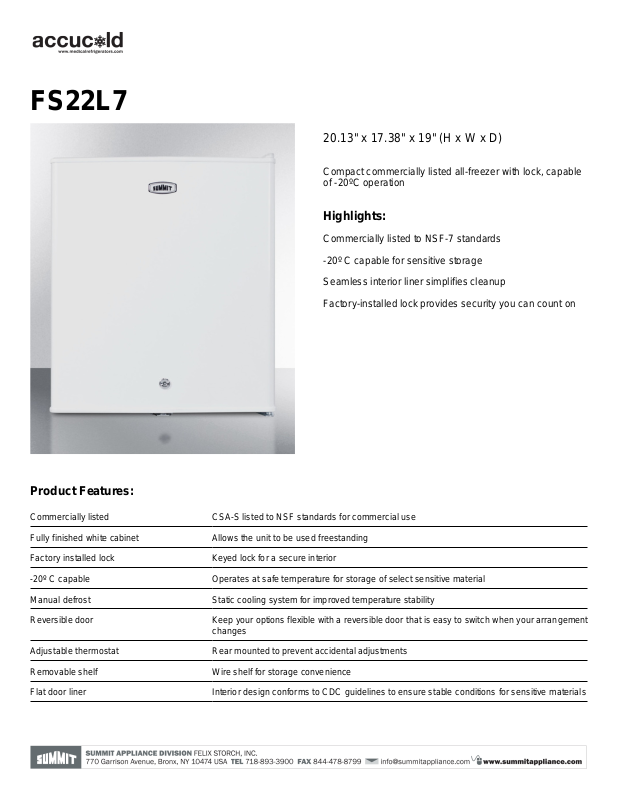

Accucold FS22L7 Specification Sheet

FS22L7

20.13" x 17.38" x 19" (H x W x D)

Compact commercially listed all-freezer with lock, capable
of -20ºC operation

Highlights:

Commercially listed to NSF-7 standards

-20º C capable for sensitive storage
Seamless interior liner simplifies cleanup
Factory-installed lock provides security you can count on

Product Features:

Commercially listed CSA-S listed to NSF standards for commercial use
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Keyed lock for a secure interior

-20º C capable Operates at safe temperature for storage of select sensitive material
Manual defrost Static cooling system for improved temperature stability
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement

changes
Adjustable thermostat Rear mounted to prevent accidental adjustments
Removable shelf Wire shelf for storage convenience
Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

FS22L7 Specifications:

Overview

Height 20.13"
Height to Hinge Cap 20.5"
Width 17.38"
Depth 19.0"
Capacity 1.42 cu.ft.
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety CSA
Canadian Electrical

Safety
Sanitation CSA-S
Energy Usage/Year 272.0kWh/year
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs.
Shipping Weight 55.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 14.63"
Interior Width 12.38"
Interior Depth 14.5"
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.67 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0"
Compressor Step Width 12.38"
Compressor Step Depth 6.0"

CSA
