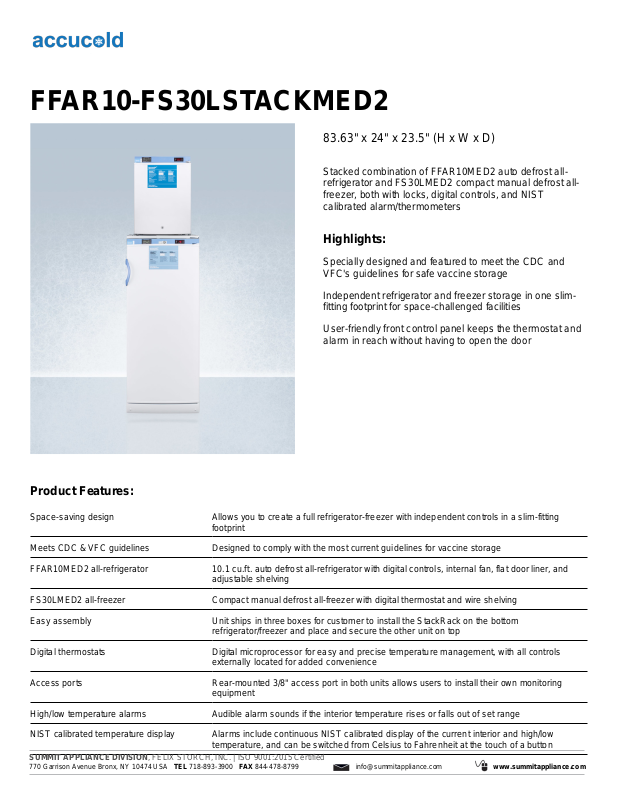

AccuCold FFAR10FS30LSTACKMED2 Specifications

FFAR10-FS30LSTACKMED2

83.63" x 24" x 23.5" (H x W x D)

Stacked combination of FFAR10MED2 auto defrost all­refrigerator and FS30LMED2 compact manual defrost all­freezer, both with locks, digital controls, and NIST
calibrated alarm/thermometers

Highlights:

Specially designed and featured to meet the CDC and
VFC's guidelines for safe vaccine storage

Independent refrigerator and freezer storage in one slim­fitting footprint for space-challenged facilities

User-friendly front control panel keeps the thermostat and
alarm in reach without having to open the door

Product Features:

Space-saving design Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting

footprint
Meets CDC & VFC guidelines Designed to comply with the most current guidelines for vaccine storage
FFAR10MED2 all-refrigerator 10.1 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and

adjustable shelving
FS30LMED2 all-freezer Compact manual defrost all-freezer with digital thermostat and wire shelving
Easy assembly Unit ships in three boxes for customer to install the StackRack on the bottom

refrigerator/freezer and place and secure the other unit on top
Digital thermostats Digital microprocessor for easy and precise temperature management, with all controls

externally located for added convenience
Access ports Rear-mounted 3/8" access port in both units allows users to install their own monitoring

equipment
High/low temperature alarms Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display Alarms include continuous NIST calibrated display of the current interior and high/low

temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FFAR10-FS30LSTACKMED2 Specifications:

Overview

Height of Cabinet 83.63" (212 cm)
Width 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 12.1 cu.ft. (343

Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Factory

Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Capacity 10.1 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature

Range
Refrigerator - Refrigerant

Type
Refrigerator - Refrigerant

Amount
Freezer - Interior Height 18.5" (47 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 1.8 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 2

Reversible

48.25" (123 cm)

2ºC to 8ºC

R134a

3.0 oz.

Thermostat Type Digital
Fan Type Interior
Freezer - Temperature

Range
Freezer - Refrigerant Type R600a
Freezer - Refrigerant

Amount

L)

-20º to -15ºC

0.8 oz.
