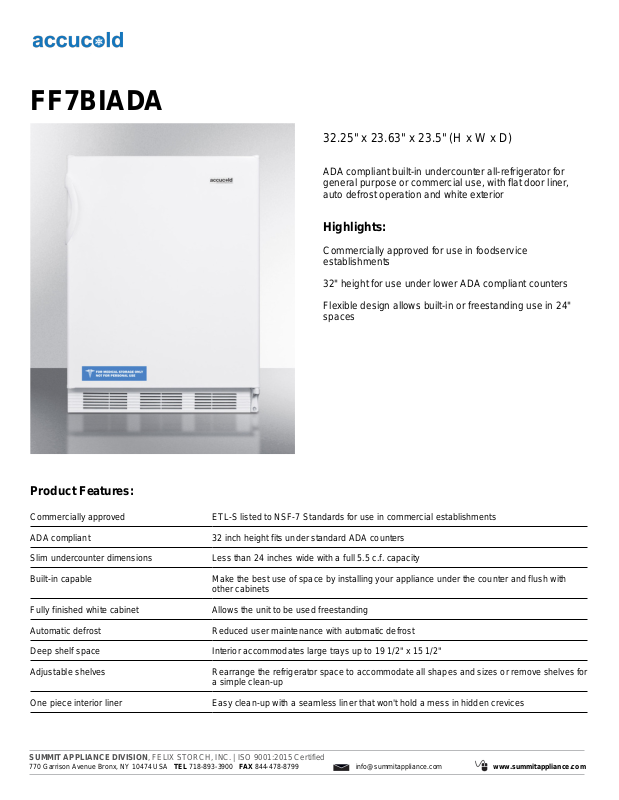

Accucold FF7BIADA Specification Sheet

FF7BIADA

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
general purpose or commercial use, with flat door liner,
auto defrost operation and white exterior

Highlights:

Commercially approved for use in foodservice
establishments

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces

Product Features:

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
ADA compliant 32 inch height fits under standard ADA counters
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Automatic defrost Reduced user maintenance with automatic defrost
Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"
Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF7BIADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 104.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)

ULC

Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
