AccuCold FF7BBISSTBADA, FF6BBI7IFADA, ALB753LBLSSHV User Manual

Write Model and Serial Numbers here:

FELIX STORCH, INC.

BUILT-I N ALL-REFRIGERATORS

RÉFRIGÉRATEURS ENCASTRÉS

Models / Modèles: FF6BI series FF7BI series ( SCR600LBI series

(ACCUCOLD®)

ACCUCOLD®)

(ACCUCOLD®)

SCR600BLBI series (SUMMIT Commercial)

CM411L

Instruction Manual / Mode d’emploi

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS

AVANT L’EMPLOI, LIRE ET SUIVRE LES RÈGLES DE SÉCURITÉ

Écrire numéros de modèle et de série ici:

Model/Modèle: ____________________ Serial No./Série: ___________________

ET INSTRUCTIONS D'UTILISATION

770 Garrison Avenu e

Bronx, NY 10474

www.summitappliance.com

IMPORTANT SAFEGUARDS

Your safety and the safety of others ar e very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words ”DANGER” or “WARNING”.

DANGER means that failure to heed this safety statement may result in severe personal injury or death.

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Safety messages wi ll al e rt you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

Before the refrigerator is used, i t mus t be properl y positioned a nd insta lled as described in this m anual, so read the manual car efully. To reduce the risk of fire, electrical s hock or injur y whe n using th e appliance, follow basic precautions, including the following:

• Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• It is recommended that a separate circuit, serving only your refrigerator, be provided. Use receptacles that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.

• Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so

can result in electrical shock or death.

• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

• Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60

F (32°C). This unit must be installed in an area protected from the elements, such as wind,

90 rain, water spray or drips.

• The appliance should not be located next to ovens, radiators or other sources of high heat.

• The appliance must be installed with all electrica l con n ec tions in ac cor danc e with state and

local codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.

• Do not kink or pinch the power supply cord of the appliance.

• The fuse (or circuit breaker) size should be 15 amperes.

• It is important for the refrigerator to be leveled in order to work properly. You may need to

make several adjustments to level it.

• Never allow children to operate, play with or crawl inside the refrigerator.

• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may

damage or discolor the interior.

• Do not use this apparatus for other than its intended purpose.

THE FF6BI AND FF7BI SERIES MODELS, AS WELL AS MODEL SCR60 0L BI, A RE DESIGNED FOR MEDICAL OR PHARMACEUTICAL USE ONLY. THEY ARE NOT INTENDED FOR USE AS HOUSEHOLD REFRIGERATORS. MODEL SCR600BLBI IS DESIGNED AS A COMMERCIAL BEVERAGE MERCHANDISER.

F (16°C) and below

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few days.”

• Before you throw away your old refrigerator or freezer: Take off the doors. Leave the shelves or drawers in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the refrigerator/freezer.

THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

- SAVE THESE INSTRUCTIONS -

Table of Contents

Temperature control dial Door with storage

Front ventilation

Leveling legs

Adjustable shelves Defrost water

NOTE: Model FF6LBI has a lock located on the front

Handle

Crisper and

glass cover

FF6BI and

Important Safeguards .................................................................................................... 1 - 2

Location of Parts ............................................................................................................ 3 - 4

Technical Information ......................................................................................................... 5

Installation Instructions ................................................................................................. 6 - 8

Before Using Your Appliance .......................................................................................... 6

Installing the Refrigerator ............................................................................................... 6

Electrical Connection / Extension Cord ...................................................................... 6 - 7

Reversing the Door Swing ......................................................................................... 7 - 8

Door Handle Installation .................................................................................................. 8

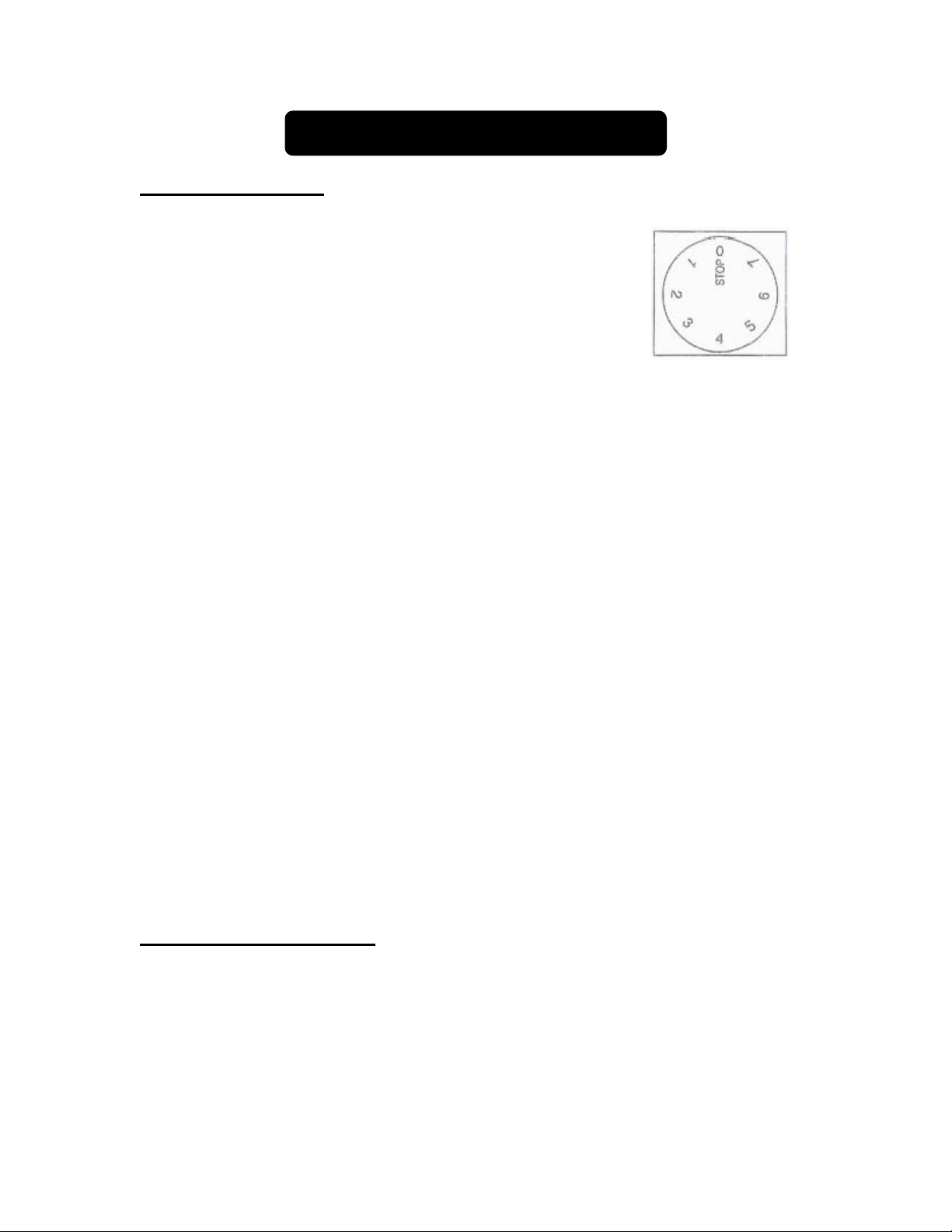

Operating Your Refrigerator ............................................................................................... 9

Temperature Control Defrosting Your Appliance

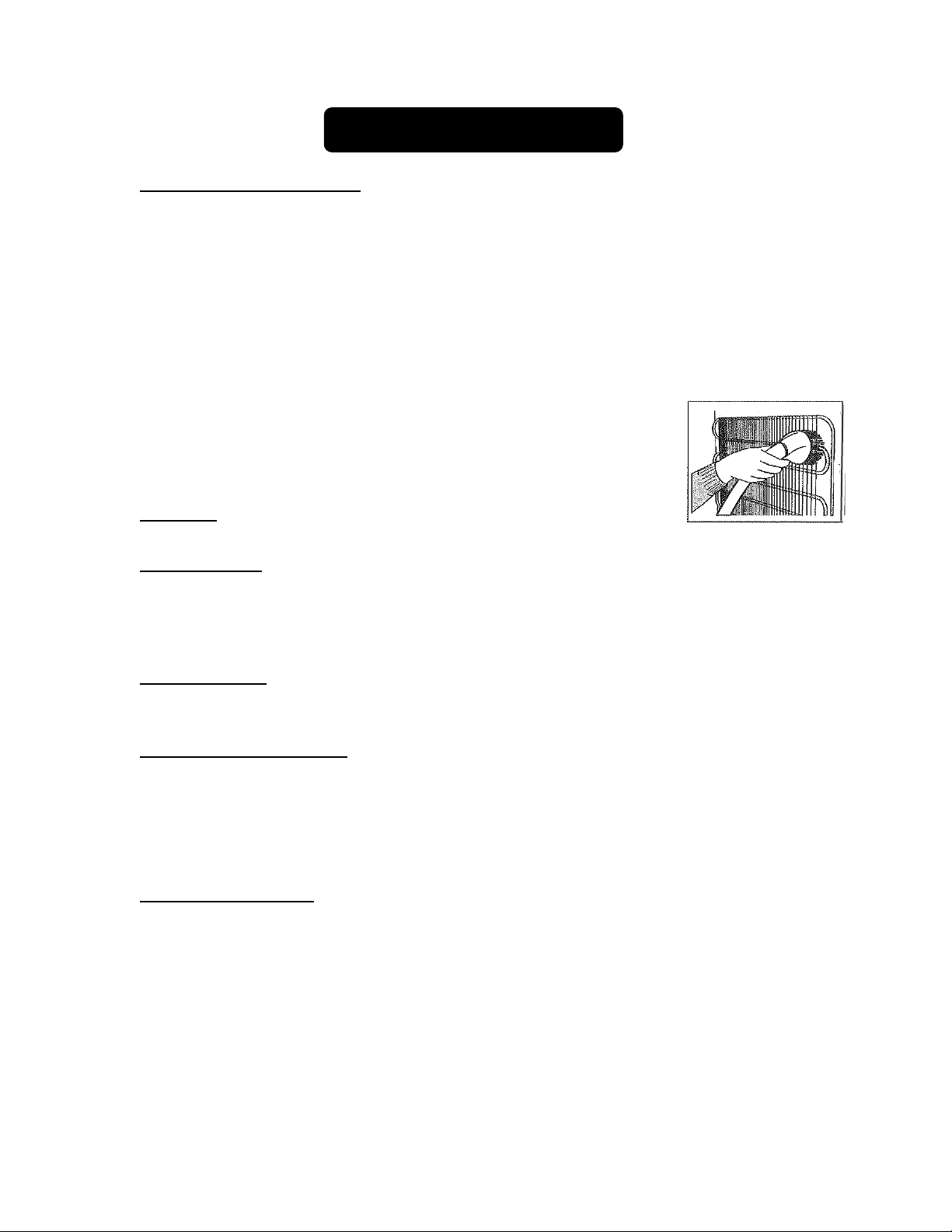

Care and Maintenance ...................................................................................................... 10

Cleaning Your Appliance / Power Failure / Vacation Time / Moving your Appliance / Energy-Saving Tips

Troubleshooting ................................................................................................................ 11

Limited Warranty ............................................................................................................... 12

French version of this manual ................................................................................... 14 - 27

FF6BBI series

slots (kick plate)

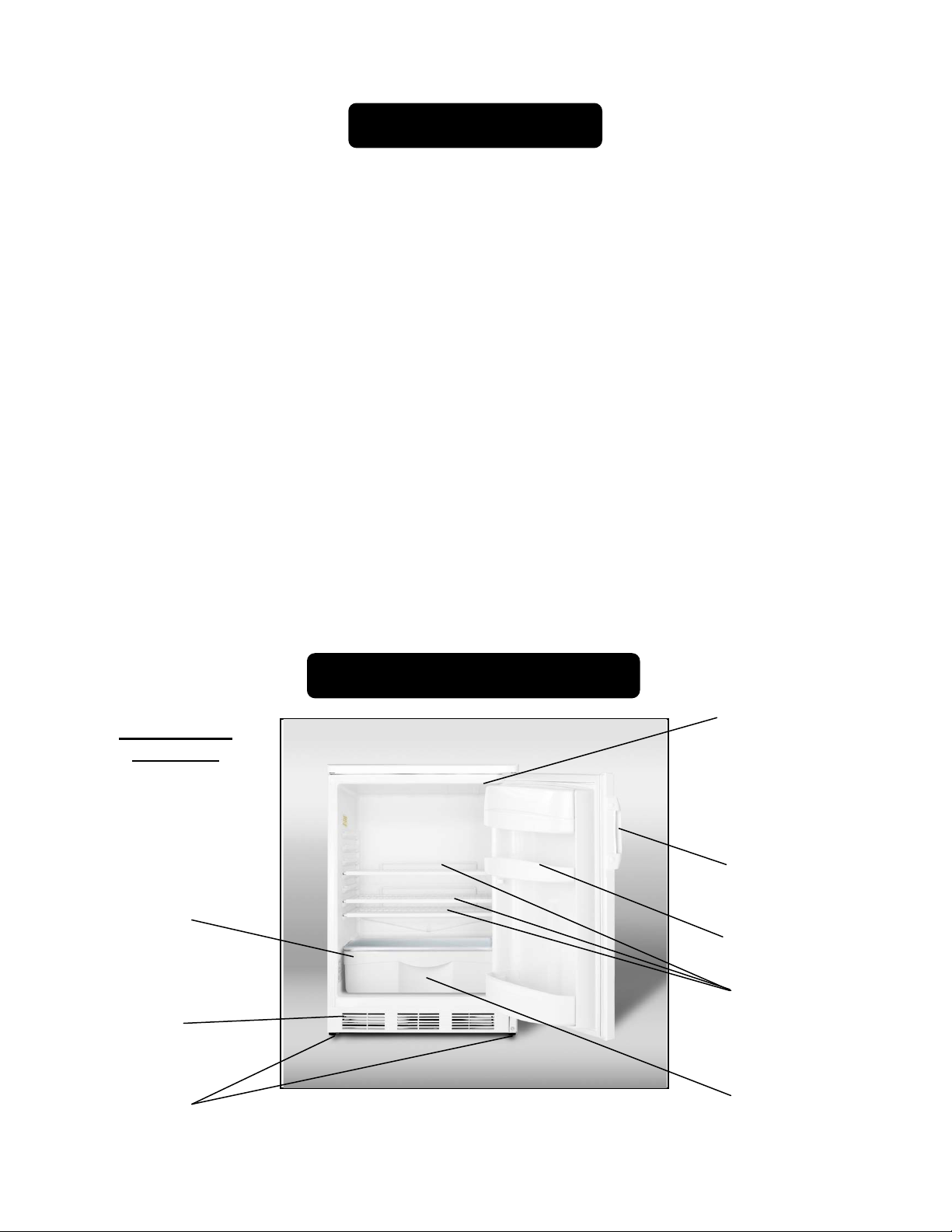

Location of Parts

(thermostat) and interior light

compartments

(wire for FF6BI & FF6LBI; glass for FF6BBI)

outlet

(behind crisper)

of the door, near the top center.

Temperature control dial

Door

Front ventilation

Leveling legs

Adjustable shelves

(wire for FF7BI & FF7LBI;

glass for FF7BBI &

FF7LBLBI)

Defrost water

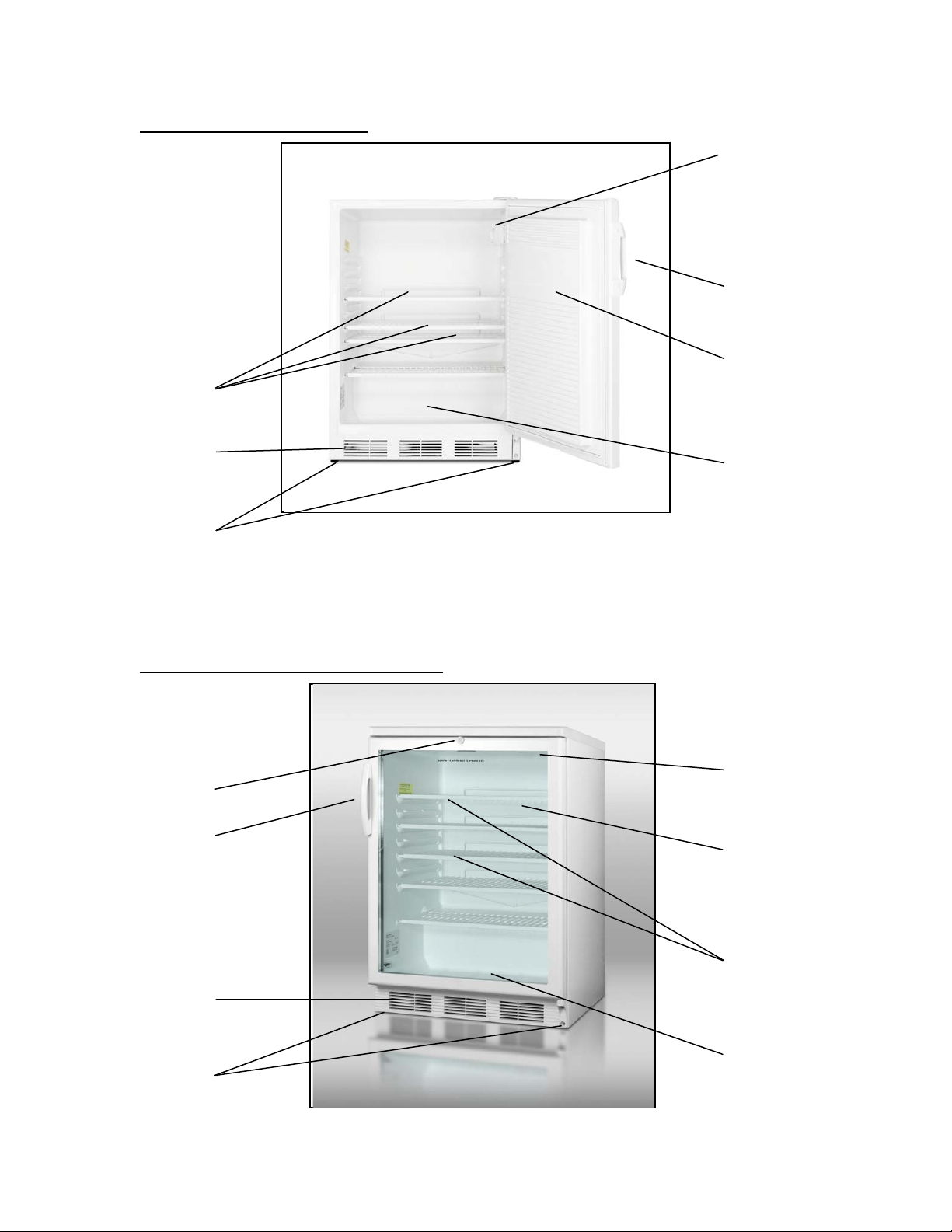

NOTE: Lock on models FF7LBI and FF7LBLBI is located

FF7BI and

FF7LBLBI series

Glass door

Front ventilation

Leveling legs

Adjustable shelves Defrost water

Handle

SCR600LBI and

slots (kick plate)

on the front of the door, near the top center.

(thermostat), light switch

and interior light

Handle

outlet

SCR600BLBI series

Lock

slots (kick plate)

Temperature control dial (thermostat), light switch and interior light

(wire for SCR600LBI; glass for SCR600BLBI)

outlet

Model Numbers and Descriptions

Capacity

Technical Information

FF6BI (white with wire shelves and no lock; door storage) FF6LBI (white with wire shelves and lock; door storage) FF6BBI (black with glass shelves and no lock; door storage)

FF7BI (white with wire shelves and no lock; flat door liner) FF7LBI (white with wire shelves and lock; flat door liner) FF7BBI (black with glass shelves and no lock; flat door liner) FF7LBLBI (black with glass shelves and lock; flat door liner) SCR600LBI (white with wire shelves and lock; glass door) SCR600BLBI (black with glass shelves and lock; glass door)

5.5 cu. ft.

Electrical Input Rated Current Refrigerant Installation Unit Dimensions

(W x D x H)

115V AC/60Hz

1.0A R134a (1.8 oz.) Built-in or Freestanding

23.63" x 23.5" x 33.5"

NOTES: 1. FF6BI and FF7BI series models and SCR600LBI are suitable for storing

vaccines, pharmaceuticals and other temperature-sensitive materials. They can also store foodstuffs at an ideal temperature. However, they are not designed for household use since they utilize an oversized commercial compressor. Model SCR600BLBI is designed as a commercial beverage merchandiser.

2. Specifications are subject to change without notice.

Installation Instructions

Before Using Your Appliance

• Remove the exterior and interior packing.

• CAUTION: After unpacking you MUST allow this applian ce t o st and upright for at least 2

hours to allow the lubricant and r ef r igerant to drain back into the compressor and stabilize. Failure to do so may adversely affect performance and the lifetime of this unit.

• Remove the shelves and clean them and the interior surfaces of the unit with

lukewarm water using a soft cloth.

Installing the Refrigerator

• Place the unit on a floor that is strong enough to support the appliance when it is fully

loaded. To level the unit, adjust the two leveling legs at the front.

• Your appliance can be installed either free-standing, recessed or built into an

enclosure. When installing as a free-standing unit, allow at least 2” (51m m) of space at the sides, top and rear of the unit to allow for proper air circulation to cool the compressor and condenser. Even when built in, the unit requires at least 2” of clearance at the back, 1/8” (3mm) at both sides and 1/16” (1.6mm) at the top. Take care that the air vents at the front of the appliance are never covered or blocked in any way.

• Locate the unit away from direct sunlight and sources of heat (oven, heater, radiator,

etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extremely cold ambient temperatures may also affect the unit's performance.

• Avoid locating the unit in moist areas. Too much moisture in the air will cause frost to

form quickly on the evaporator, requiring more frequent defrosting of the interior.

• Plug the unit into an exclusive, properly installed and grounded wall outlet. Do not

under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or authorized service center.

Electrical Connection :

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a three-prong plug which mates with a standard three-prong wall outlet to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

To prevent accidental injury, the cord should be secured behind the unit and not left exposed or dangling.

The unit should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevents overloading house wiring circuits that could cause a fire hazard from overheated wires. Never unplug the unit by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately any power cord that has become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the unit, be careful not to damage the power cord.

Extension Cord

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

Reversing the Door Swing (select models only)

If you find the direction of opening the door of the appliance inconvenient, you can change it. Holes on the opposite side have already been prepared at the factory.

This appliance can be opened from either the right side or the left. By default, the door hinge is on the right side. If you prefer it on the left, please follow the appropriate instructions:

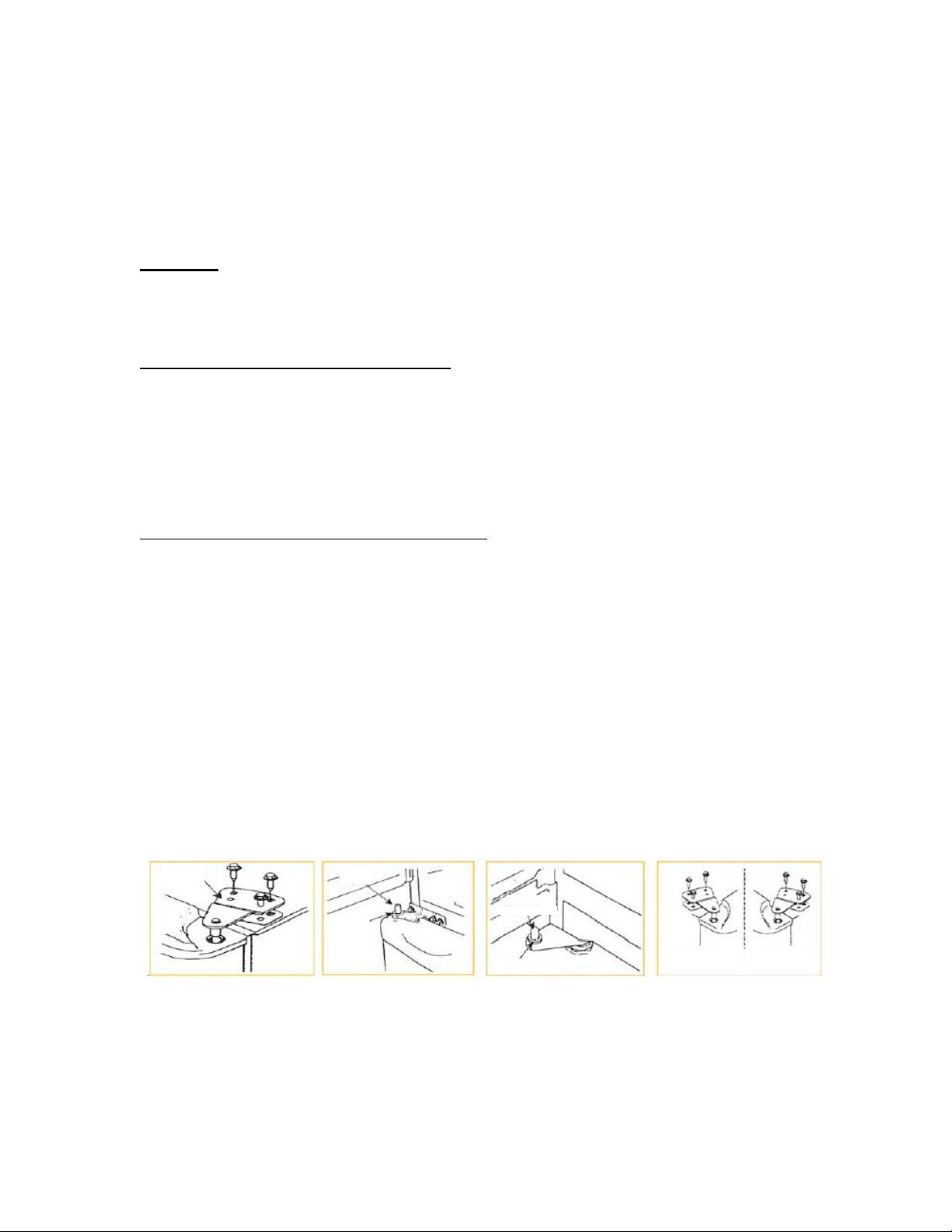

For models FF6BBI, FF7BI and FF7BBI

1. Take off the upper hinge cover from the door and remove the screws that hold the top hinge.

2. Lift the hinge straight up to free the hinge pin from the socket in the top of the door.

3. Lift the door up and away to free its bottom socket from the hinge pin.

4. Remove the screws to the bottom hinge.

5. Remove the decorative caps from the opposit e side and plug the holes from the original side with the decorative caps.

6. Move the bottom hinge to the opposite side and tighten the screws. Use any lock washers or nuts if they were installed in the original installation.

7. Replace door onto the hinge pin on the bottom hinge. Place top hinge pin into door. Insert screws into the top hinge and tighten.

If you notice the door not hanging straight, loosen the top hinge screws, adjust the door until it is level and tighten the screws.

For models FF6BI, FF6LBI, FF7LBI, FF7LBLBI, SCR600LBI and SCR600BLBI

Models FF6BI, FF6LBI,

NOTES: See illustration below. All of the parts that are removed must be kept for the reinstallation of the door.

1. Unscrew the lower hinge and take off the door.

2. Push the kick plate to the right in the new position.

3. Undo the upper hinge fastener and fix it to the opposite side of the housi n g, where you have already removed and replaced the fastener with the hole to the opposite side.

4. Put the door on the upper hinge fastener.

5. Fix the lower hinge in the new position.

6. Unscrew the handle and place it on the opposite side.

7. Some screws are covered with caps. Take off these caps before undoing the screws.

8. Check the door gasket. It should not be creased and should seal well.

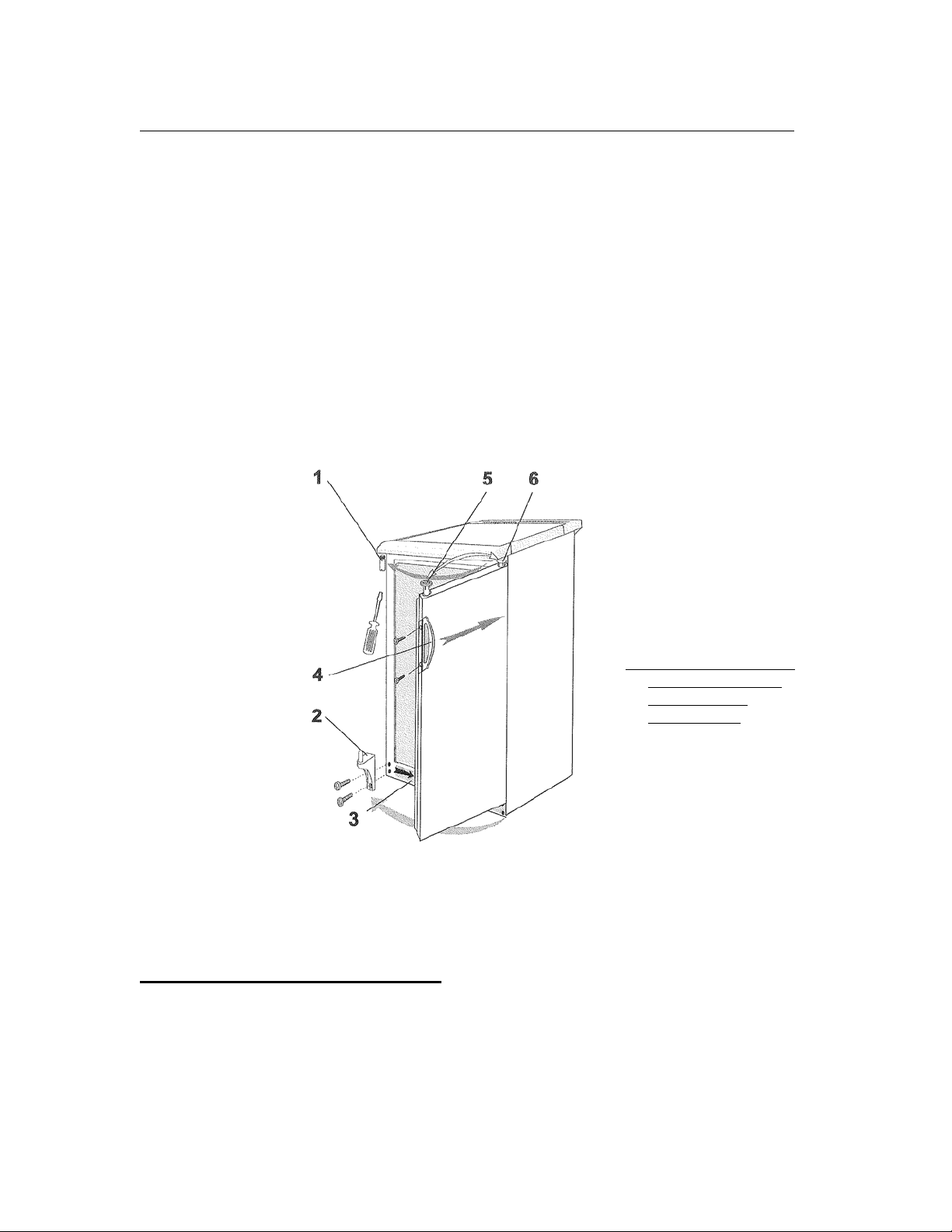

1. Upper hinge fastener 4. Handle

2. Lower hinge 5. Door hinge fixture

3. Kick plate 6. Door hinge fixture plug

Door Handle Installation

FF7LBI, FF7LBLBI, SCR600LBI and SCR600BLBI

The door has two screw holes on each side, allowing you to install a handle (included). To do so, align the handle with the screw holes on the side you prefer. Fix the handle in place with the included screws, then cover the screw heads with the handle seal (included).
