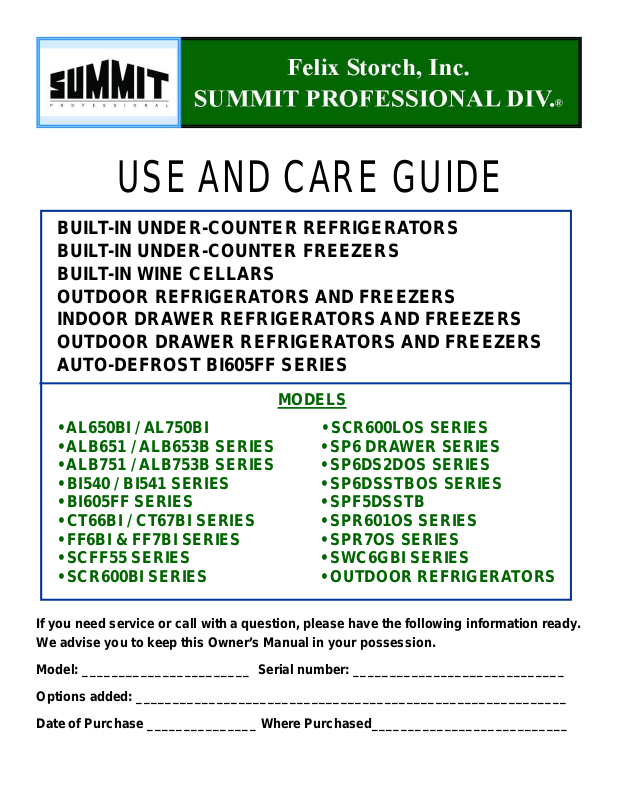

AccuCold FF6L7SSHVADA User Manual
USE AND CARE GUIDE
BUILT-IN UNDER-COUNTER REFRIGERATORS
BUILT-IN UNDER-COUNTER FREEZERS
BUILT-IN WINE CELLARS
OUTDOOR REFRIGERATORS AND FREEZERS
INDOOR DRAWER REFRIGERATORS AND FREEZERS
OUTDOOR DRAWER REFRIGERATORS AND FREEZERS
AUTO-DEFROST BI605FF SERIES
MODELS
• AL650BI / AL750BI • SCR600LOS SERIES
• ALB651 / ALB653B SERIES • SP6 DRAWER SERIES
• ALB751 / ALB753B SERIES • SP6DS2DOS SERIES
• BI540 / BI541 SERIES • SP6DSSTBOS SERIES
• BI605FF SERIES • SPF5DSSTB
• CT66BI / CT67BI SERIES • SPR601OS SERIES
• FF6BI & FF7BI SERIES • SPR7OS SERIES
• SCFF55 SERIES • SWC6GBI SERIES
• SCR600BI SERIES • OUTDOOR REFRIGERATORS
If you need service or call with a question, please have the following information ready.
We advise you to keep this Owner’s Manual in your possession.
Model: _______________________ Serial number: _____________________________
Options added: ___________________________________________________________
Date of Purchase _______________ Where Purchased___________________________
Felix Storch, Inc.
Page 2
SUMMIT PROFESSIONAL DIV.
APPLIANCE SAFETY
Your safety and the safety of others are very important to us.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages. You can be killed or seriously injured if you do not follow these instructions.
Safety messages will tell you what the potential hazard is, how to reduce the chance of injury, and what
can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS!
WARNING: To reduce the risk of fire, electric shock or injury when
using your refrigerator/freezer, follow these basic precautions:
Plug into a grounded 3-prong outlet.
Do not remove ground prong, nor use a 3/2 adapter.
Do not use an extension cord.
Use care not to plug into outlets controlled by wall switches.
Disconnect power before servicing.
After servicing, replace all parts and panels before operating.
Use nonflammable cleaners.
Keep flammable materials and vapors, such as gasoline, away from appliances.
Use two or more people to move and install appliance.
Drawer refrigerators are provided with anti-tip brackets. Always install prior to use.
Proper Disposal of Your Old Appliance
Old appliances can represent a suffocation hazard to children.
Remove doors from your old appliance.
Leave shelves in place.
If an old appliance contains refrigerants, it must be recycled by a licensed service or
disposal company.
Felix Storch, Inc.
SUMMIT PROFESSIONAL DIV. Page 3
INSTALLATION INSTRUCTIONS
UNPACKING Excessive Weight Hazard!
Use two or more people to move and install your appliance.
Failure to do so can result in back or other injury.
ALLOW APPLIANCE TO SIT UPRIGHT FOR 24 HOURS BEFORE TURNING ON, TO ALLOW THE
COMPRESSOR LUBRICANT TO DRAIN.
1. Remove packaging materials.
2. Remove tape and glue residue from surfaces before turning on the appliance. Rub a small amount of liquid
dish soap over the adhesive with your fingers. Rinse with warm water and dry.
3. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue.
These products can damage the surface of your appliance.
4. When Moving Your Appliance
Your appliance is heavy. When moving the appliance for cleaning or service, be sure to protect the floor.
Always pull the appliance straight out when moving it. Do not wiggle or “walk” the appliance when trying to
move it, because floor damage can occur.
5. Clean Before Using
After you remove all of the packaging materials, clean the inside of your appliance before using it. See the
cleaning instructions in Appliance Care.
6. All upright models have level legs in the front and many also have them in the rear. Level as necessary for
best operation.
7. If your appliance has casters, after moving into place, lock the brakes on those casters supplied with brakes.
Always unlock before moving the appliance for cleaning.
Keep flammable materials and vapors, such as gasoline, away from appliances. Failure to do so can result in
explosion or fire.
:
LOCATION REQUIREMENTS
IMPORTANT: Do not install the appliance near an oven, radiator, or other heat source, nor in a location where the
temperature will fall below 45°F (7°C). Do not place in direct sunlight.
Check the strength of the floor before installing your appliance. It should hold the weight of a fully-loaded
appliance. Your product is designed to be installed under the counter in a 24-inch opening. When installing,
provide the following clearances to ensure the best operation and proper ventilation: 3/16” on both sides, 2” at
the rear and 1/16” at the top. Be sure that airflow under the appliance is not blocked. If the appliance is going to
be placed against a wall, if possible, leave extra space on the hinge side so the door can open wider than its
width (to make it easier to remove shelves or storage bins).
NOTE: This appliance may be installed side by side with another appliance. Allow the same clearances as
described in the paragraph above.
Felix Storch, Inc.
Page 4
SUMMIT PROFESSIONAL DIV.
INSTALLATION INSTRUCTIONS
CHOOSING THE RIGHT PLACE
Place the appliance in a dry and regularly ventilated place. It is recommended that this appliance always be operated
in an ambient temperature of at least 60°F and under 85°F. The appliance may be exposed to lower or higher
temperatures but only for a short period of time and the temperature should never be lower than 45°F. Never place the
appliance near heat-emitting devices (e.g., oven, radiator, water heater) and do not expose it to direct sunlight.
RECOMMENDED GROUNDING METHOD
A 115 Volt (AC only) 60 Hz grounded electrical supply equipped with a 15- or 20- amp fuse or circuit breaker is required.
It is recommended that a separate circuit serving only your appliance be provided. Use outlets that cannot be turned
off by a switch or pull chain. Connect this appliance to a 3-prong power supply outlet that has a ground terminal. If you
only have a 2-prong outlet, have it replaced by a qualified technician with an outlet that meets the local codes. DO NOT
USE AN EXTENSION CORD. Required nominal voltage and frequency are indicated on the rating plate. The connection
to the power supply and grounding has to be made according to current standards and regulations. The appliance can
resist temporary voltage fluctuations from -15 to +10%.
FOR OUTDOOR MODELS ONLY
Electrical Shock Hazard! Plug into a grounded 3-prong outlet. Do not remove ground prong. Do not use an adapter.
Do not use an extension cord. Failure to follow these instructions can result in fire or electrical shock.
Many outdoor outlets are controlled by wall switches. Turning power off and then on again may cause the GFCI switch
to trip.
A GFCI (ground fault circuit interrupter) is built into every line cord. Do not defeat or bypass this important safety
feature. The line cord supplied with this appliance is specially designed for outdoor use. Use only a factory-supplied
replacement cord with a GFCI in the event the cord becomes damaged.
You may purchase these cords from either our sales or service department at
(service).
They can also be ordered online from www.summitapplianceparts.com
718-893-3900 (sales) or 718-328-8700
ENERGY SAVING TIPS
The more airflow you can provide around an appliance, the less energy it will use.
If your appliance needs defrosting, keep ice build-up to less than 1/2 inch.
Keep doors or drawers open a minimum of time, and shut securely.
LEVELING YOUR APPLIANCE
1. Locate the two front leveling legs, which may be taped among the packing materials. In most models these legs are
already mounted into the underside of the appliance.
2. Screw these legs into the front holes on the bottom of the appliance. The back of the appliance rests on two fixed
supports. (Built-in models also have rear level legs that can provide more precise leveling).
3. Adjust the front legs just enough to lift the cabinet up off the floor.
4. Place a leveling tool on top of the appliance: first side to side, then front to back. Turn leg counter-clockwise to
raise a corner. Turn leg clockwise to lower a corner.
5. Repeat Step 4 until appliance is level.
6. After appliance is fully loaded, recheck with level as in Step 4.
7. If your appliance is equipped with casters, the two front casters have brakes to prevent rolling. Keep brakes locked,
and unlock for moving only.
Felix Storch, Inc.
SUMMIT PROFESSIONAL DIV.
Page 5
APPLIANCE USE
In order to ensure proper temperature, you need to permit proper airflow in the appliance. Do not block any air
vents. If the vents are blocked, airflow will be prevented, and temperature and moisture problems may occur.
Always position contents to allow some airflow between shelves or baskets.
Allow the appliance to cool at least 6 to 8 hours before adding contents. Allow 24 hours for temperature to
stabilize.
NOTE: When the appliance is first started, the compressor will run constantly until the appliance is cold. It may
take 6 to 8 hours (or longer), depending on room temperature and the number of times the appliance door is
opened. After the appliance is cooled, the compressor will turn on and off as needed to keep the appliance at
the proper temperature.
The outside of your appliance may feel warm. This is normal. The appliance’s design and main function is to
remove heat from packages and air space inside the appliance. The heat is transferred to the room air, making
the outside of the appliance feel warm. In some models the condenser that gets warm is inside the side walls,
making these walls warm to the touch.
REVERSING THE DOOR SWING (Selected models)
If you find the direction of opening the door on your appliance inconvenient, on some models you can change it.
Holes on the opposite side have already been prepared in the factory. On models with our wrapped stainless
steel door and 12-inch pro handle (suffix SSTB, SSVH, SSHV or CSS, or with optional handles “TB” or “SH” ), you
must order these with either a right hand or left hand door swing in advance. These doors cannot be reversed.
Models with suffix SSHH, BIFR, BIIF and CSSHH can be reversed.
TO REVERSE YOUR DOOR
Take off the upper hinge cover from the door and remove the screws that hold the top hinge.
Lift the hinge straight up to free the hinge pin from the socket in the top of the door.
Lift the door up and away to free its bottom socket from the hinge pin.
Remove the screws to the bottom hinge.
Remove the decorative caps from the opposite side and plug the holes from the original side with the
decorative caps.
Move the bottom hinge to the opposite side and tighten the screws. Use any lock washers or nuts if they were
included in the original installation.
Replace door onto the hinge pin on the bottom hinge. Place top hinge pin into door. Insert screws into top
hinge and tighten.
If you notice the door is not hanging straight, loosen the top hinges, adjust the door until it is level and tighten
the screws.
