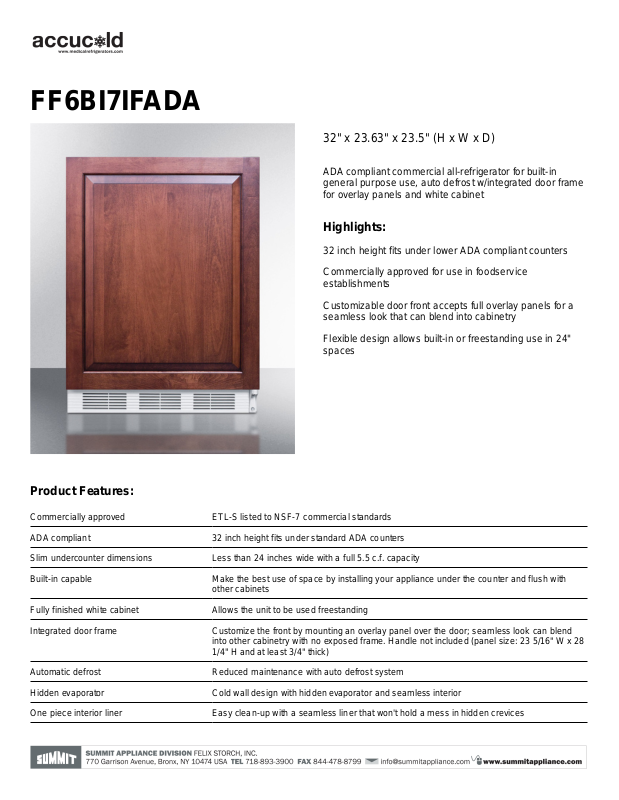

AccuCold FF6BI7IFADA Specifications

FF6BI7IFADA

32" x 23.63" x 23.5" (H x W x D)

ADA compliant commercial all-refrigerator for built-in
general purpose use, auto defrost w/integrated door frame
for overlay panels and white cabinet

Highlights:

32 inch height fits under lower ADA compliant counters
Commercially approved for use in foodservice

establishments
Customizable door front accepts full overlay panels for a

seamless look that can blend into cabinetry
Flexible design allows built-in or freestanding use in 24"

spaces

Product Features:

Commercially approved ETL-S listed to NSF-7 commercial standards
ADA compliant 32 inch height fits under standard ADA counters
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Integrated door frame Customize the front by mounting an overlay panel over the door; seamless look can blend

into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28

1/4" H and at least 3/4" thick)
Automatic defrost Reduced maintenance with auto defrost system
Hidden evaporator Cold wall design with hidden evaporator and seamless interior
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

FF6BI7IFADA Specifications:

Overview

Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.5"
Depth with door at 90° 45.63"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 106.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory

Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 27.75"

ULC

Reversible

Interior Width 20.0"
Interior Depth 17.5"
Compressor Step

Height
Compressor Step Width 20.0"
Compressor Step Depth 6.0"

7.0"
