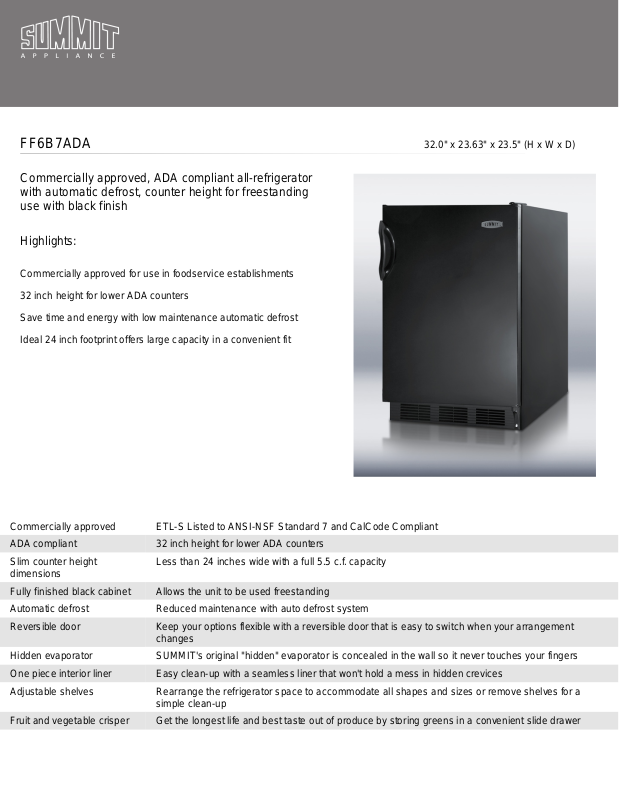

AccuCold FF6B7ADA User Manual

FF6B7ADA 32.0" x 23.63" x 23.5" (H x W x D)

Commercially approved, ADA compliant all-refrigerator
with automatic defrost, counter height for freestanding
use with black finish

Highlights:

Commercially approved for use in foodservice establishments
32 inch height for lower ADA counters
Save time and energy with low maintenance automatic defrost
Ideal 24 inch footprint offers large capacity in a convenient fit

Commercially approved ETL-S Listed to ANSI-NSF Standard 7 and CalCode Compliant
ADA compliant 32 inch height for lower ADA counters
Slim counter height

dimensions
Fully finished black cabinet Allows the unit to be used freestanding
Automatic defrost Reduced maintenance with auto defrost system
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement

Hidden evaporator SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Less than 24 inches wide with a full 5.5 c.f. capacity

changes

simple clean-up

Specifications:

Height 32.0"
Width 23.63"
Depth 23.5"
Capacity 5.5 cu.ft.
Ext Depth with Handle 25.13"
Interior Height 1 27.75"
Interior Width 1 20.0"
Interior Depth 1 17.0"
Comp Step Height 7.0"
Comp Step Width 20.0"
Comp Step Depth 6.0"
Shipping Weight 102.0 lbs.
US Electrical Safety UL
Amps 1.3
Canadian Electrical Safety ULC
Energy Usage/Year 405.0 kWh/year
Reversible Yes
Door Swing RHD
Crisper Quantity 1
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Opaque
Full Door Shelf Quantity 3
Defrost Type Automatic
Depth with door at 90° 46.13"
Height to Hinge Cap 32.25"
Thermostat Type Dial
Light true
Freon Type R134a
High Side PSI 285.0
Freon Oz 1.8
Level Legs Quantity 4
Low Side PSI 70.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
