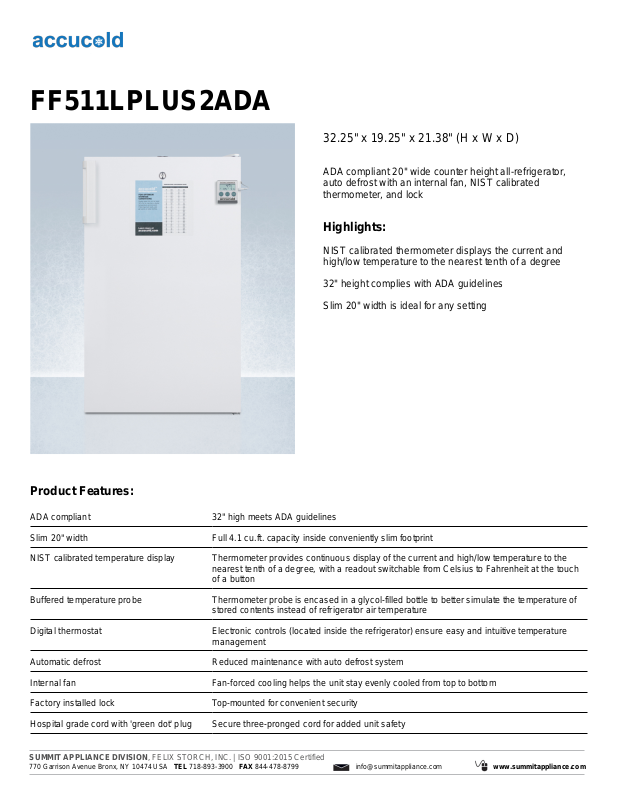

AccuCold FF511LPLUS2ADA Instruction Manual

FF511LPLUS2ADA

32.25" x 19.25" x 21.38" (H x W x D)

ADA compliant 20" wide counter height all-refrigerator,
auto defrost with an internal fan, NIST calibrated
thermometer, and lock

Highlights:

NIST calibrated thermometer displays the current and
high/low temperature to the nearest tenth of a degree

32" height complies with ADA guidelines
Slim 20" width is ideal for any setting

Product Features:

ADA compliant 32" high meets ADA guidelines
Slim 20" width Full 4.1 cu.ft. capacity inside conveniently slim footprint
NIST calibrated temperature display Thermometer provides continuous display of the current and high/low temperature to the

nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch
of a button

Buffered temperature probe Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of

stored contents instead of refrigerator air temperature

Digital thermostat Electronic controls (located inside the refrigerator) ensure easy and intuitive temperature

management
Automatic defrost Reduced maintenance with auto defrost system
Internal fan Fan-forced cooling helps the unit stay evenly cooled from top to bottom
Factory installed lock Top-mounted for convenient security
Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF511LPLUS2ADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor

Warranty
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2 to 8ºC / 36 to 46ºF

Dimensions

Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)

ETL-C

1 Year

Compressor Step
Height

Compressor Step
Width

Compressor Step
Depth

8.0" (20 cm)

17.0" (43 cm)

6.75" (17 cm)
