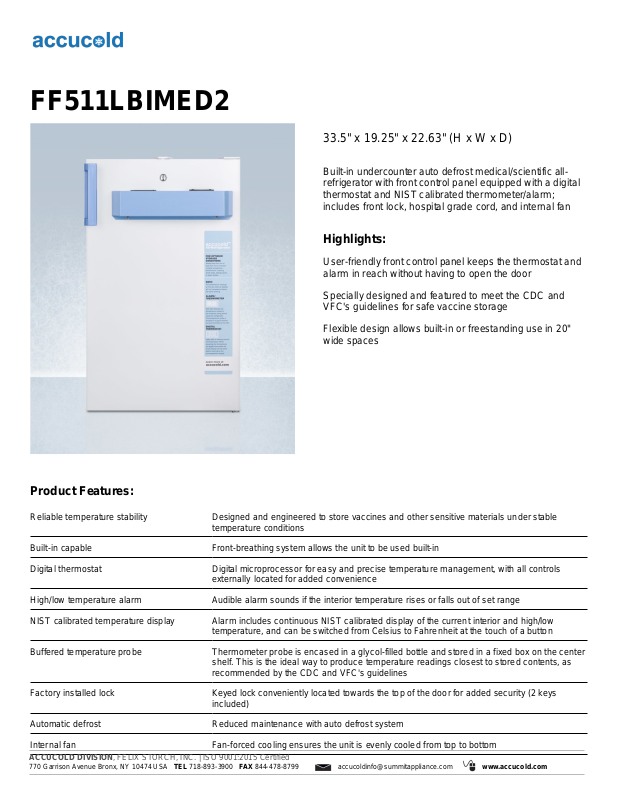

AccuCold FF511LBIMED2 Specs

FF511LBIMED2

33.5" x 19.25" x 22.63" (H x W x D)

Built-in undercounter auto defrost medical/scientific all­refrigerator with front control panel equipped with a digital
thermostat and NIST calibrated thermometer/alarm;
includes front lock, hospital grade cord, and internal fan

Highlights:

User-friendly front control panel keeps the thermostat and
alarm in reach without having to open the door

Specially designed and featured to meet the CDC and
VFC's guidelines for safe vaccine storage

Flexible design allows built-in or freestanding use in 20"
wide spaces

Product Features:

Reliable temperature stability Designed and engineered to store vaccines and other sensitive materials under stable

temperature conditions
Built-in capable Front-breathing system allows the unit to be used built-in
Digital thermostat Digital microprocessor for easy and precise temperature management, with all controls

externally located for added convenience
High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display Alarm includes continuous NIST calibrated display of the current interior and high/low

temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center

shelf. This is the ideal way to produce temperature readings closest to stored contents, as

recommended by the CDC and VFC's guidelines
Factory installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys

included)
Automatic defrost Reduced maintenance with auto defrost system
Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

ACCUCOLD DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.accucold.com

FF511LBIMED2 Specifications:

Overview

Height of Cabinet 33.5" (85 cm)
Width 19.25" (49 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 40.75" (104 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 70.0 lbs. (32 kg)
Shipping Weight 90.0 lbs. (41 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and

Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2º to 8ºC

Dimensions

Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 8.0" (20 cm)

ETL-C

Exterior

Compressor Step Width 15.75" (40 cm)
Compressor Step Depth 6.5" (17 cm)

ACCUCOLD DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.accucold.com
