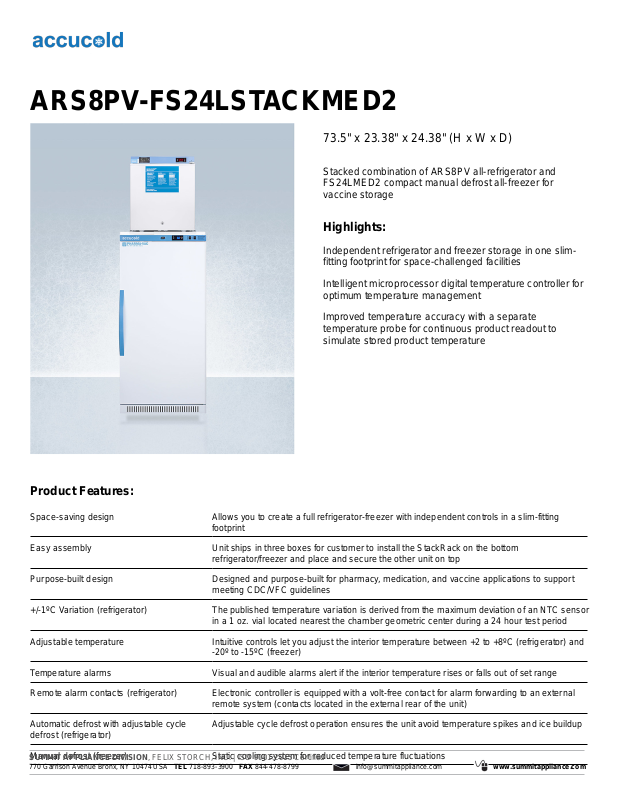

AccuCold ARS8PVFS24LSTACKMED2 Specifications

ARS8PV-FS24LSTACKMED2

73.5" x 23.38" x 24.38" (H x W x D)

Stacked combination of ARS8PV all-refrigerator and
FS24LMED2 compact manual defrost all-freezer for
vaccine storage

Highlights:

Independent refrigerator and freezer storage in one slim­fitting footprint for space-challenged facilities

Intelligent microprocessor digital temperature controller for
optimum temperature management

Improved temperature accuracy with a separate
temperature probe for continuous product readout to
simulate stored product temperature

Product Features:

Space-saving design Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting

footprint

Easy assembly Unit ships in three boxes for customer to install the StackRack on the bottom

refrigerator/freezer and place and secure the other unit on top

Purpose-built design Designed and purpose-built for pharmacy, medication, and vaccine applications to support

meeting CDC/VFC guidelines

+/-1ºC Variation (refrigerator) The published temperature variation is derived from the maximum deviation of an NTC sensor

in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Adjustable temperature Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and

-20º to -15ºC (freezer)
Temperature alarms Visual and audible alarms alert if the interior temperature rises or falls out of set range
Remote alarm contacts (refrigerator) Electronic controller is equipped with a volt-free contact for alarm forwarding to an external

remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle
defrost (refrigerator)

Manual defrost (freezer) Static cooling system for reduced temperature fluctuations

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

ARS8PV-FS24LSTACKMED2 Specifications:

Overview

Height of Cabinet 73.5" (187 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 46.5" (118 cm)
Capacity 9.4 cu.ft. (266 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Factory

Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 8.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 7
Refrigerator - Temperature

Range
Refrigerator - Refrigerant

Type
Refrigerator - Refrigerant

Amount
Freezer - Interior Height 14.38" (37 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.25" (34 cm)
Freezer - Capacity 1.4 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1

Reversible

41.25" (105 cm)

2 to 8ºC

R600a

1.73 oz.

Thermostat Type Digital
Fan Type Interior
Freezer - Temperature

Range
Freezer - Refrigerant Type R134a
Freezer - Refrigerant

Amount

-20º to -15ºC

1.5 oz.
