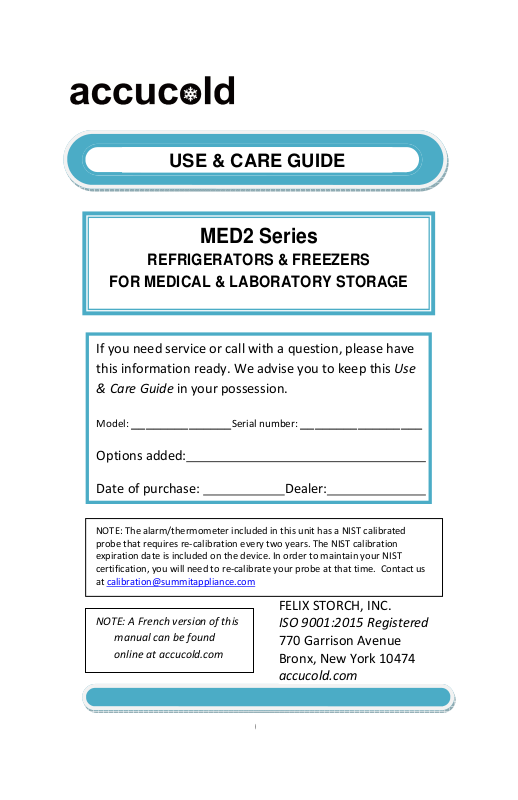

AccuCold ARG8PVFS24LSTACKMED2, ARG6PVVT65MLSTACKMED2, ARS8PVFS24LSTACKMED2, ARS6PVVT65MLSTACKMED2 User Manual
If you need service or call with a question, please have
Date of purchase:
Dealer:
FELIX STORCH, INC.
accucold
.com
NOTE: The alarm/thermometer included in this unit has a NIST calibrated
USE & CARE GUIDE
MED2 Series
REFRIGERATORS & FREEZERS
FOR MEDICAL & LABORATORY STORAGE
this information ready. We advise you to keep this Use
& Care Guide in your possession.
Model:
______________
Options added:
probe that requires re-calibration every two years. The NIST calibration
expiration date is included on the device. In order to maintain your NIST
certification, you will need to re-calibrate your probe at that time. Contact us
at calibration@summitappliance.com
NOTE: A French version of this
manual can be found
online at accucold.com
Serial number:
_________________
ISO 9001:2015 Registered
770 Garrison Avenue
Bronx, New York 10474
0
Model Numbers
MODELS
All-Refrigerators
•
FFAR24LMED2
Compact all-refrigerator with automatic defrost operation
•
FF28LWHMED2
Countertop all-refrigerator with automatic defrost operation
•
FF511LBIMED2 / FF511LBIMED2ADA
Undercounter all-refrigerator with automatic defrost operation
•
FF511LBI7MED2 / FF511LBI7MED2ADA
Commercially listed undercounter all-refrigerator with automatic defrost operation
•
FF7LBIMED2 / FF7LBIMED2ADA
Undercounter all-refrigerator with automatic defrost operation
•
FFAR10MED2
Mid-sized all-refrigerator with automatic defrost operation
•
SCR600LBIMED2 / SCR600LBIMED2ADA
Undercounter glass door all-refrigerator with automatic defrost operation
All-Freezers:
•
FS24LMED2
Compact all-freezer with manual defrost operation
•
FS24L7MED2
Commercially listed compact all-freezer with manual defrost operation
•
FS30LMED2
Countertop all-freezer with manual defrost operation
•
FS30L7MED2
Commercially listed countertop all-freezer with manual defrost operation
•
FS407LBIMED2 / FS407LBIMED2ADA
Undercounter all-freezer with manual defrost operation
•
FS407LBI7MED2 / FS407LBI7MED2ADA
Commercially listed undercounter all-freezer with manual defrost operation
•
VT65MLBIMED2 / VT65MLBIMED2ADA
Undercounter all-freezer with manual defrost operation
•
VT65MLBI7MED2 / VT65MLBI7MED2ADA
Commercially listed undercounter all-freezer with manual defrost operation
1
Table of Contents
Model Numbers ......................................................................... 1
Appliance Safety ....................................................................... 3
Proper disposal of an old appliance ..................................... 3
Installation Instructions ........................................................... 4
Key Eject lock ....................................................................... 4
Location Requirements ...................................................... 5 – 6
Location ................................................................................ 5
Recommended grounding method ....................................... 5
Leveling your appliance ....................................................... 6
When using the appliance .................................................... 6
Energy-saving tips ................................................................ 6
Appliance Care .................................................................... 7 – 8
Defrosting ............................................................................. 7
Cleaning your appliance ....................................................... 7
Changing the light bulb ........................................................ 8
Loss of power ....................................................................... 8
Moving the appliance ........................................................... 8
Temperature Selection and Monitoring .......................... 9 – 11
Digital thermostat .................................................................. 9
Thermometer/alarm ...................................................... 10 –12
Keypad Lock ........................................................................... 13
Operation of Specific Models ................................................ 14
Troubleshooting ..................................................................... 15
Limited Warranty .................................................................... 16
2
Appliance Safety
We have provided many important safety messages in this manual and on your
You can be seriously injured or even killed if you don’t follow instructions.
Safety messages will tell you what the potential hazard is, how to reduce the
structions are not followed.
Keep flammable materials and vapors, such as gasoline, away from
Old appliances can represent a suffocation hazard to children.
so children cannot easily climb inside
If an old appliance contains refrigerants, it must be recycled by a licensed
IMPORTANT SAFETY INSTRUCTIONS
he risk of fire, electric shock
when using your appliance, follow these basic precautions:
Your safety and the safety of others are very important to us.
appliance. Always read and obey all safety messages.
chance of injury, and what can happen if the in
WARNING: To reduce t
•
Plug into a grounded 3-prong outlet.
•
Do not remove ground prong, nor use a 3/2 adapter.
•
Do not use an extension cord.
•
Be sure not to plug into outlets controlled by wall switches.
•
Disconnect power before servicing.
•
After servicing, replace all parts and panels before operating.
•
Use nonflammable cleaners.
•
appliances.
•
Use two or more people to move and install appliance.
Proper disposal of an old appliance:
DANGER! Risk of child entrapment!
• Remove doors from your old appliance.
• Leave shelves in place
or disposal company.
or injury
.
service
3
Installation Instructions
Use two or more people to move and install your appliance.
Failure to do so can result in back or other injury.
UPRIGHT FOR 24 HOURS BEFORE TURNING ON, TO
Remove tape and glue residue from surfaces before turning on the appliance. Rub a
ingers. Rinse with warm
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to
remove tape or glue. These products can damage the surface of your appliance.
vy. When moving the appliance for cleaning or service, be sure to
protect the floor. Always pull the appliance straight out when moving it. Do not wiggle or
“walk” the appliance when trying to move it, because floor damage can occur.
ter you remove all of the packaging materials, clean the inside of your appliance
If your appliance has casters, after moving into place, lock the brakes on those casters
supplied with brakes. Always unlock before moving the appliance for cleaning.
the lock while turning. The lock is
If the key is lost, contact your dealer or SUMMIT APPLIANCE for a replacement. Always
give the model and serial number of your appliance when requesting a replacement
www.summitappliance.com/support
cannot be reversed in the
When ordering in the future, always specify whether you need a right hand or left
hand (option “LHD”) door swing. All units ship with a right hand door swing unless specified
Excessive Weight Hazard !
ALLOW APPLIANCE TO SIT
ALLOW THE COMPRESSOR LUBRICANT TO DRAIN.
1.
Remove packaging materials.
2.
small amount of liquid dish soap over the adhesive with your f
water and dry.
3.
4.
When Moving Your Appliance:
Your appliance is hea
5.
Clean Before Using:
Af
before using it. See cleaning instructions in Appliance Care.
6.
Some upright models have leveling legs. Level as necessary for best
operation.
7.
Key Eject lock (some models):
To lock or unlock the appliance, you must hold the key in
spring loaded, so the key cannot be left in the lock.
Keys for most models can be ordered online at
A NOTE ABOUT DOOR SWING:
Due to their wiring and controls, the doors on all MED2 units
field.
differently at the time of order.
4
key.
Location Requirements
materials and vapors, such as gasoline, away
from appliances. Failure to do so can result in fire, explosion or
Do not install the appliance near an oven, radiator, or other heat
ill fall below 40°F (5°C). Do not
Check the strength of the floor before installing your appliance. It should hold the
cm) of airspace at the top
” between the back of the appliance
a wall, leave extra
space on the hinge side so the door can open wider than its width.
cm) clearance at the top and sides and a ¼” (0.64 cm)
IF YOUR MODEL HAS THE LETTERS “BI”
AND REQUIRE
WHERE AT
electrical shock or
or circuit breaker is required. It is recommended that a separate circuit serving
outlets that cannot be turned off by a
Keep flammable
death.
Location:
IMPORTANT:
source, nor in a location where the temperature w
place in direct sunlight.
weight of a fully loaded appliance. Allow at least 4” (10
and on both sides of the appliance and also 4
and the wall. If the appliance is going to be placed next to
NOTE: Allow 4” (10
clearance between appliances.
IN THE SUFFIX, IT IS DESIGNED FOR BUILT-IN USE
ONLY
MINIMAL
LEAST 2” OF CLEARANCE SHOULD BE ALLOWED.
Electrical Shock Hazard
CLEARANCES EXCEPT AT THE BACK
S
•
Plug into a grounded 3-prong outlet.
•
Do not remove ground prong.
•
Do not use an adapter.
•
Do not use an extension cord.
Failure to follow these instructions can result in fire,
death.
Recommended grounding method:
A 115 Volt (AC only) 60 Hz grounded electrical supply with a 15-
only your appliance be provided. Use
switch or pull chain. Do not use an extension cord.
or 20- amp fuse
5
Leveling your appliance
Locate the two front leveling legs that may be taped among the packing materials. (In
many models these legs are already mounted into the underside of the appliance.)
1. Screw these legs into the front holes on the bottom of the appliance. The back of
the appliance rests on two fixed supports. (Built-in models also have rear level
legs that can provide more precise leveling).
2. Adjust the front legs just enough to lift the cabinet up off the floor.
Note: If your model is equipped with front rollers, the front legs should be lowered
enough to lift the rollers off the floor to ensure the appliance does not roll
forward when the door is opened.
3. Place a leveling tool on top of the appliance, first side to side, then front to back.
Turn leg counter-clockwise to raise a corner. Turn leg clockwise to lower a corner.
4. Repeat Step 3 until appliance is level.
5. After appliance is fully loaded, recheck with level as in Step 3.
6.
If your appliance is equipped with casters, the two front casters have brakes to
prevent rolling. Keep brakes locked, and unlock for moving only.
(some models):
When using the appliance:
In order to ensure proper temperature, you need to permit proper airflow in the
appliance. Do not block off any air vents. If the vents are blocked, airflow will be
hindered, and temperature and moisture problems may occur. Always position
contents to allow some airflow between shelves or baskets.
Allow the appliance to cool at least 6 to 8 hours before adding contents. Allow 24
hours for temperature to stabilize.
NOTE: When the appliance is first started, the compressor will run constantly until the
appliance is cooled. It may take 6 to 8 hours (or longer), depending on room
temperature and the number of times the appliance door is opened. After the
appliance has cooled, the compressor will turn on and off as needed to keep the
appliance at the proper temperature.
For optimum temperature performance, it is recommended that this unit be at
least 30% full during use. If you are only using this unit to store small loads, we
recommend adding some water bottles or freezer packs to ensure temperature
stability.
The outside of your appliance may feel warm. This is normal. The appliance’s design
and main function is to remove heat from packages and air space inside the
appliance. The heat is transferred to the room air, making the outside of the appliance
feel warm. (In some models the condenser that gets warm is just inside the side walls,
making these walls warm to the touch.)
ENERGY-SAVING TIPS
• The more airflow provided around an appliance, the less energy it will use.
• If your appliance requires manual defrosting, keep ice build-up to less than 1/2".
• Keep doors open a minimum of time, and shut securely.
6
Appliance Care
Defrosting:
Refrigerator models listed in this manual defrost automatically. However, freezer
models require manual defrosting. Before defrosting the unit, remove the contents of
the freezer, then set the thermostat to OFF (the compressor will stop working). Leave
the door open until ice and frost are completely melted. To speed up defrosting, you
can place a container of warm water (about 125°F) into the cabinet. Soak up the melt
water with clean toweling or a sponge and be sure the interior is dry before turning the
thermostat back to its normal setting.
• NOTE: It is not advisable to heat the interior of the freezer directly with hot water or
a hair dryer while defrosting since this can deform the cabinet interior.
NEVER USE A METAL OBJECT TO REMOVE ICE FROM THE
REAR WALL. IF NEEDED, USE A PLASTIC ICE-SCRAPER.
Cleaning the appliance:
NOTE: To prevent the buildup of odors, clean the appliance about once a month.
Follow the procedure below for cleaning:
1. Disconnect from power.
2. Remove any parts that can be taken out of the cabinet, such as drawers.
3. Using a clean sponge or soft cloth, hand wash, rinse and dry removable parts and
interior surfaces thoroughly. Use a mild detergent in warm water. DO NOT use
abrasive or harsh cleansers such as window sprays, scouring cleansers,
flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers
containing petroleum products. DO NOT use harsh cleaning tools such as paper
towels or scouring pads, as these can scratch or damage the surfaces of the
refrigerator.
4. For stainless steel and painted metal exterior surfaces, use a clean sponge or soft
cloth and a mild detergent in warm water. DO NOT use abrasive or harsh
cleaners, or cleaners containing chlorine, as these can scratch or damage the
material. Using a soft cloth, dry thoroughly.
5. To help with removing odors, you can use a mixture of warm water and baking
soda (2 tbs to 1 qt of water) to wash the interior walls.
6. After cleaning, replace all of the parts that were removed from the appliance.
7. The condenser coils, located on the back or behind the base grille, should also be
cleaned regularly. This may be as often as every other month. Cleaning the
condenser coils can help reduce how much energy the appliance uses. When the
condenser coils are dusty or dirty, use a vacuum cleaner with an extension
attachment.
8. After cleaning the appliance, plug in or reconnect power.
NOTE: For CSS Models (completely stainless steel), only use cleaners
especially made for stainless steel.
7
Changing the light
NOTE: Not all appliance bulbs will fit your appliance. Be sure to replace the bulb
with one of the same size, shape, base size and wattage. You can purchase
bulbs from www.summitappliance.com/support
1. Unplug appliance or disconnect power.
2. Remove the light shield. Most models do not require tools.
3. Replace the light bulb with an appliance bulb of the same wattage.
Replacement LED bulbs are available from our parts department.
4. Replace the light shield.
5. Plug in appliance or reconnect power.
bulb (some models only):
Loss of power:
In the event of power loss, unplug the appliance. Once power is restored, allow
30 minutes for the refrigeration system to equalize. During this time, keep the
door closed as much as possible.
Remember: A full appliance stays cold longer than a partially filled one.
Moving the appliance:
1. Remove stored items and tape shelves, drawers and trays in place.
2. Unplug the appliance.
3. Clean it thoroughly.
4. Tape the appliance shut and tape the electrical cord to the cabinet.
When you get the appliance to its new location, refer to the Installation
Instructions and Temperature Selection sections for information on installation
and setting the controls.
8
Temperature Selection & Monitoring
Note: details may
vary from image
Digital Thermostat
Temperature Parameters:
MED2 all-refrigerators come with digital thermostats that are preset at 4ºC, with a
range of 2º to 8ºC.
VT65MLBIMED2 and VT65MLBIMED2ADA all-freezers are preset to -20º, with a
range of -25º to -10ºC.
All other MED2 all-freezers are preset to -18ºC, with a range of -20º to -10ºC.
If you find it necessary to change the temperature setting for your digital thermostat,
please refer to the following instructions.
How to Adjust the Temperature:
To see the SET POINT:
The default display for your digital thermostat is the internal cabinet temperature. To
view the unit’s set point, push and immediately release the SET key. The display will
flash, showing the set point value. If no other actions are taken in 6 seconds, the
display will revert to the internal air temperature.
To change the SET POINT:
While the set point value is blinking, press the UP or DOWN arrow to change the set
point to your desired temperature. Press the SET button again to exit the adjustment.
The display will revert to the internal air temperature. PLEASE NOTE: The

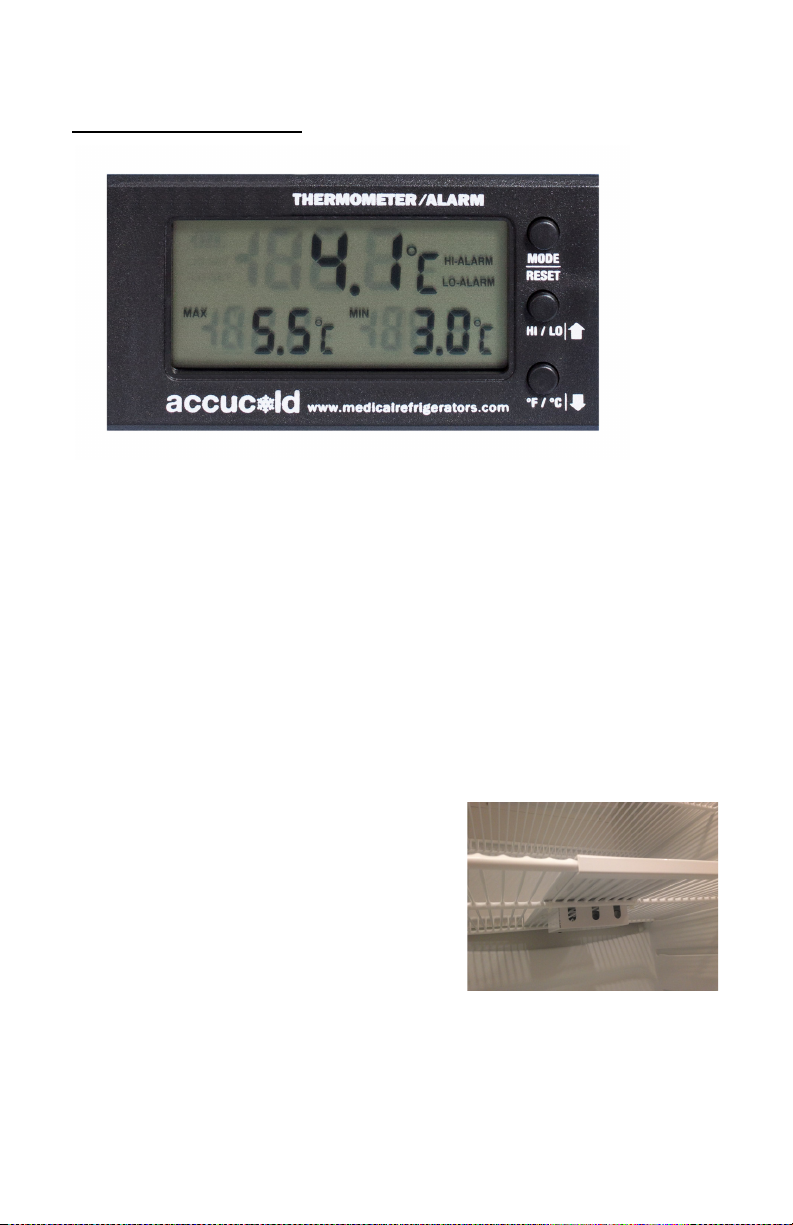

temperature displayed on the digital thermostat is the internal air temperature. Your
alarm/thermometer (installed on the left in the control panel) provides a temperature
readout based on the buffered probe in order to better simulate the temperature of
what is actually stored inside the unit (as opposed to the air temperature itself). As a
result, these readings may not always display the same temperature reading.
NOTE:
The minimum and maximum range of your thermostat is preset and
locked by us, so it cannot easily be accidentally moved outside of the
recommended temperature ranges.
9
Loading...
