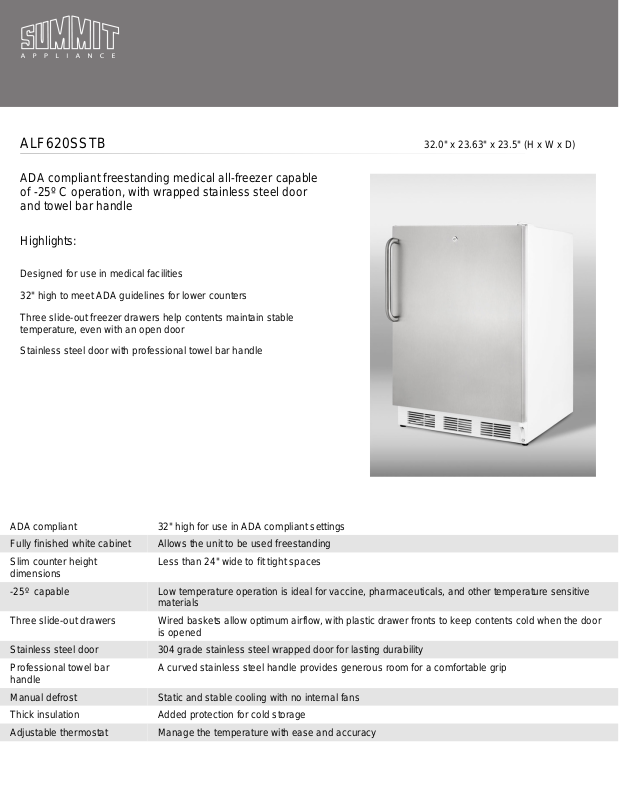

Accucold ALF620SSTB Specification Sheet

ALF620SSTB 32.0" x 23.63" x 23.5" (H x W x D)

ADA compliant freestanding medical all-freezer capable
of -25º C operation, with wrapped stainless steel door
and towel bar handle

Highlights:

Designed for use in medical facilities
32" high to meet ADA guidelines for lower counters
Three slide-out freezer drawers help contents maintain stable

temperature, even with an open door
Stainless steel door with professional towel bar handle

ADA compliant 32" high for use in ADA compliant settings
Fully finished white cabinet Allows the unit to be used freestanding
Slim counter height

dimensions

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive

Three slide-out drawers Wired baskets allow optimum airflow, with plastic drawer fronts to keep contents cold when the door

Stainless steel door 304 grade stainless steel wrapped door for lasting durability
Professional towel bar

handle
Manual defrost Static and stable cooling with no internal fans
Thick insulation Added protection for cold storage
Adjustable thermostat Manage the temperature with ease and accuracy

Less than 24" wide to fit tight spaces

materials

is opened

A curved stainless steel handle provides generous room for a comfortable grip

Specifications:

Height 32.0"
Width 23.63"
Depth 23.5"
Capacity 3.2 cu.ft.
Ext Depth with Handle 24.25"
Interior Height 1 24.25"
Interior Width 1 17.75"
Interior Depth 1 16.5"
Comp Step Height 6.5"
Comp Step Width 17.5"
Comp Step Depth 5.5"
Shipping Weight 113.0 lbs.
Amps 1.3
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Reversible Factory Reversible
Door Swing RHD
Drawers true
Drawer Quantity 3
Defrost Type Manual
Height to Hinge Cap 32.25"
Depth with door at 90° 45.0"
Thermostat Type Dial
High Side PSI 235.0
Freon Type R134a
Freon Oz 2.7
Level Legs Quantity 4
Low Side PSI 70.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
