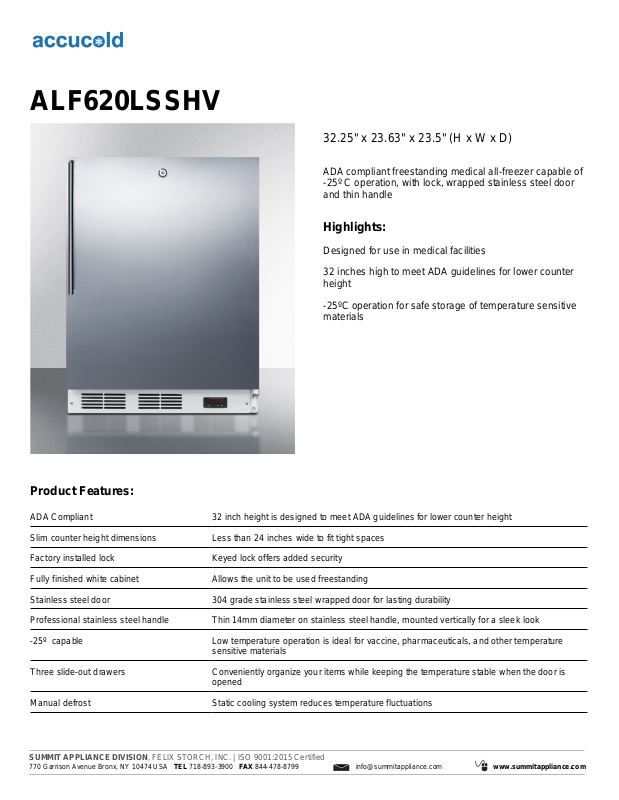

Accucold ALF620LSSHV Specification Sheet

ALF620LSSHV

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant freestanding medical all-freezer capable of

-25º C operation, with lock, wrapped stainless steel door
and thin handle

Highlights:

Designed for use in medical facilities
32 inches high to meet ADA guidelines for lower counter

height

-25ºC operation for safe storage of temperature sensitive
materials

Product Features:

ADA Compliant 32 inch height is designed to meet ADA guidelines for lower counter height
Slim counter height dimensions Less than 24 inches wide to fit tight spaces
Factory installed lock Keyed lock offers added security
Fully finished white cabinet Allows the unit to be used freestanding
Stainless steel door 304 grade stainless steel wrapped door for lasting durability
Professional stainless steel handle Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature
sensitive materials

Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is

opened

Manual defrost Static cooling system reduces temperature fluctuations

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

ALF620LSSHV Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

ULC

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com
