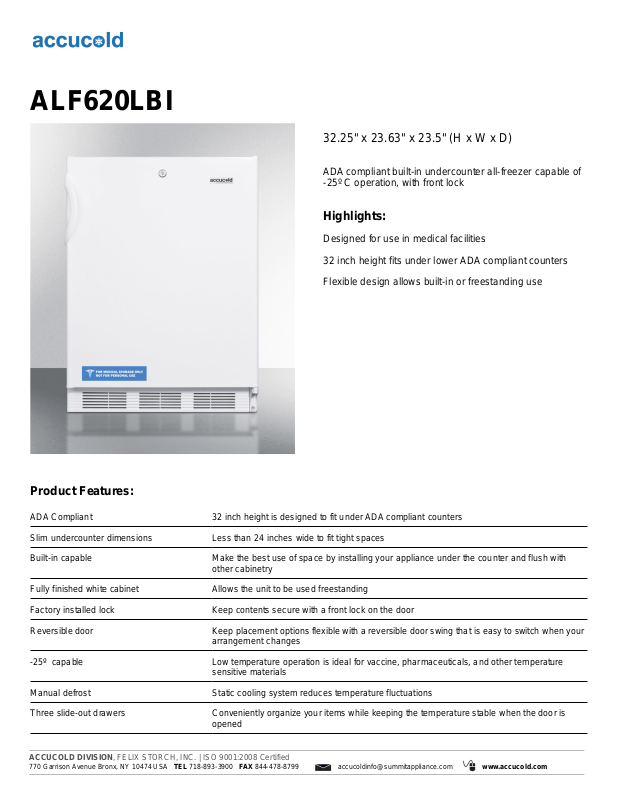

AccuCold ALF620LBI Specifications

ALF620LBI

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in undercounter all-freezer capable of

-25º C operation, with front lock

Highlights:

Designed for use in medical facilities
32 inch height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use

Product Features:

ADA Compliant 32 inch height is designed to fit under ADA compliant counters
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Keep contents secure with a front lock on the door
Reversible door Keep placement options flexible with a reversible door swing that is easy to switch when your

arrangement changes

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature

sensitive materials
Manual defrost Static cooling system reduces temperature fluctuations
Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is

opened

ACCUCOLD DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.accucold.com

ALF620LBI Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 104.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)

ULC
