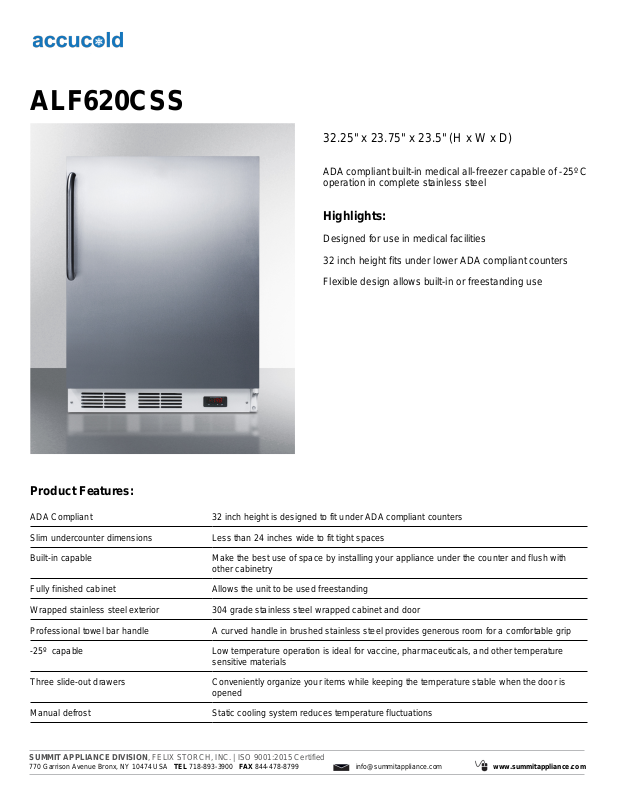

Accucold ALF620CSS Specification Sheet

ALF620CSS

32.25" x 23.75" x 23.5" (H x W x D)

ADA compliant built-in medical all-freezer capable of -25º C
operation in complete stainless steel

Highlights:

Designed for use in medical facilities
32 inch height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use

Product Features:

ADA Compliant 32 inch height is designed to fit under ADA compliant counters
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Fully finished cabinet Allows the unit to be used freestanding
Wrapped stainless steel exterior 304 grade stainless steel wrapped cabinet and door
Professional towel bar handle A curved handle in brushed stainless steel provides generous room for a comfortable grip

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature

sensitive materials
Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is

opened
Manual defrost Static cooling system reduces temperature fluctuations

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

ALF620CSS Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.75" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

ULC
