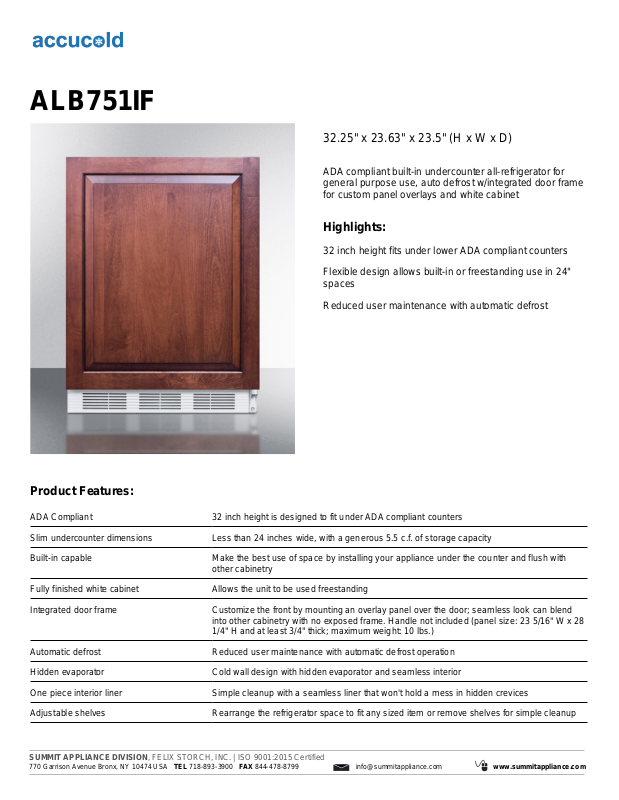

Accucold ALB751IF Specification Sheet

ALB751IF

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
general purpose use, auto defrost w/integrated door frame
for custom panel overlays and white cabinet

Highlights:

32 inch height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Reduced user maintenance with automatic defrost

Product Features:

ADA Compliant 32 inch height is designed to fit under ADA compliant counters
Slim undercounter dimensions Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Fully finished white cabinet Allows the unit to be used freestanding
Integrated door frame Customize the front by mounting an overlay panel over the door; seamless look can blend

into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28

1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost Reduced user maintenance with automatic defrost operation
Hidden evaporator Cold wall design with hidden evaporator and seamless interior
One piece interior liner Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Adjustable shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

ALB751IF Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Energy Usage/Year 405.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 107.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)

ULC

Compressor Step Depth 5.5" (14 cm)
