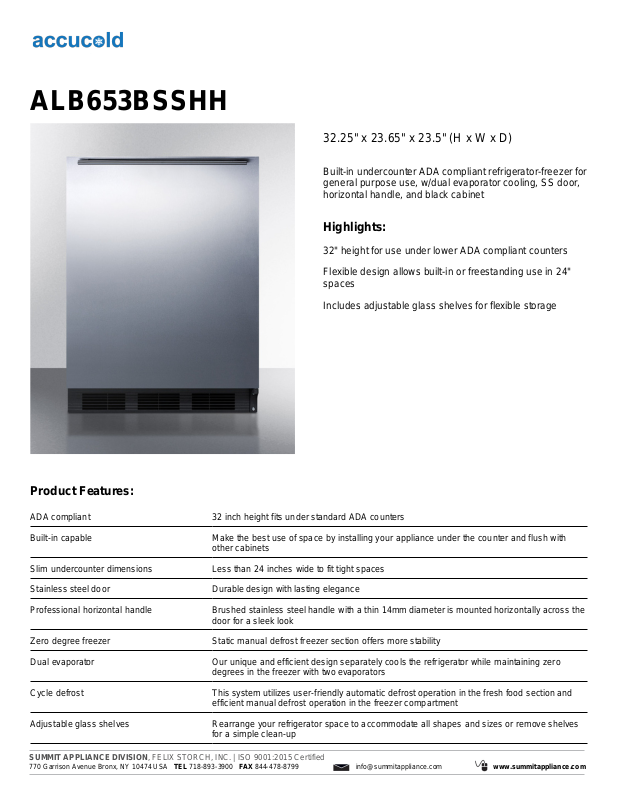

Accucold ALB653BSSHH Specification Sheet

ALB653BSSHH

32.25" x 23.65" x 23.5" (H x W x D)

Built-in undercounter ADA compliant refrigerator-freezer for
general purpose use, w/dual evaporator cooling, SS door,
horizontal handle, and black cabinet

Highlights:

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Includes adjustable glass shelves for flexible storage

Product Features:

ADA compliant 32 inch height fits under standard ADA counters
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces
Stainless steel door Durable design with lasting elegance
Professional horizontal handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the

door for a sleek look
Zero degree freezer Static manual defrost freezer section offers more stability
Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining zero

degrees in the freezer with two evaporators
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

ALB653BSSHH Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.65" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 434.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 120.0 lbs. (54

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4

L)

Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

3
