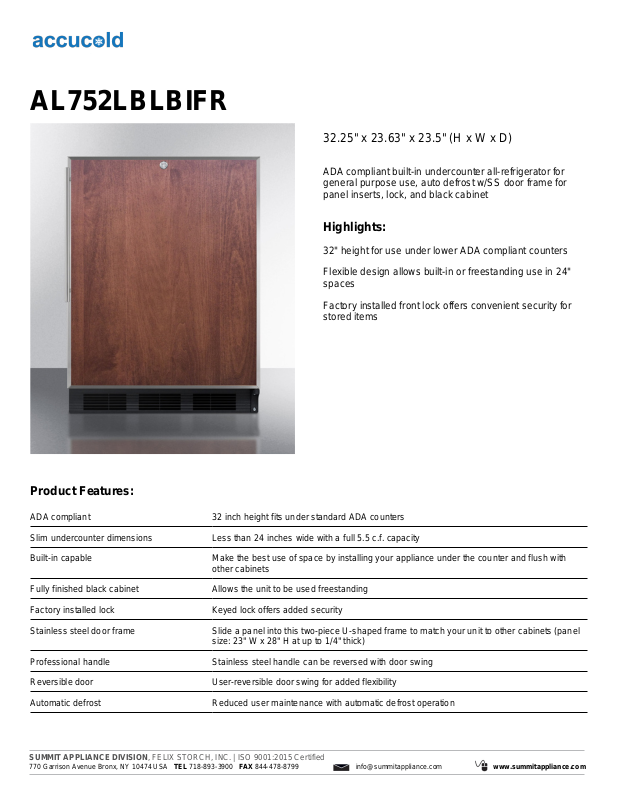

Accucold AL752LBLBIFR Specification Sheet

AL752LBLBIFR

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
general purpose use, auto defrost w/SS door frame for
panel inserts, lock, and black cabinet

Highlights:

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Factory installed front lock offers convenient security for

stored items

Product Features:

ADA compliant 32 inch height fits under standard ADA counters
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished black cabinet Allows the unit to be used freestanding
Factory installed lock Keyed lock offers added security
Stainless steel door frame Slide a panel into this two-piece U-shaped frame to match your unit to other cabinets (panel

size: 23" W x 28" H at up to 1/4" thick)
Professional handle Stainless steel handle can be reversed with door swing
Reversible door User-reversible door swing for added flexibility
Automatic defrost Reduced user maintenance with automatic defrost operation

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

AL752LBLBIFR Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 2
Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 6.0" (15 cm)

ULC
