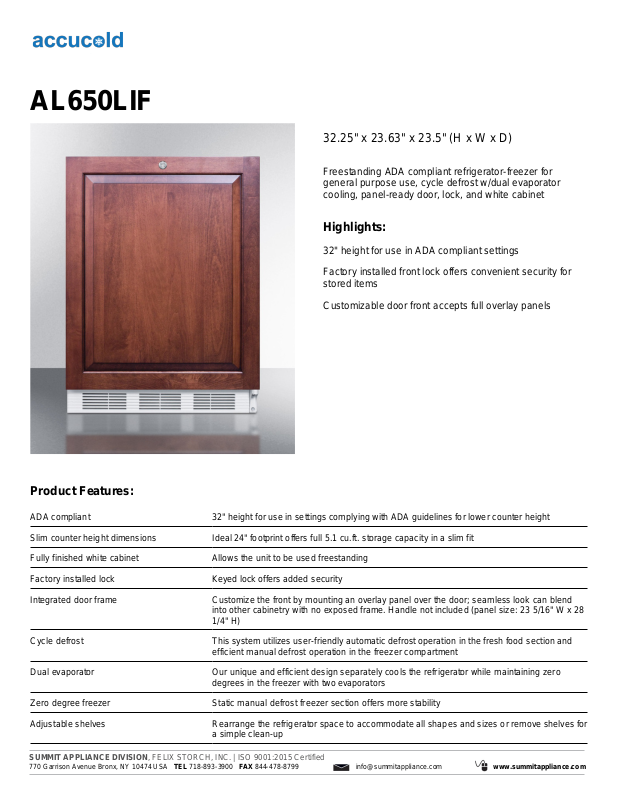

Accucold AL650LIF Specification Sheet

AL650LIF

32.25" x 23.63" x 23.5" (H x W x D)

Freestanding ADA compliant refrigerator-freezer for
general purpose use, cycle defrost w/dual evaporator
cooling, panel-ready door, lock, and white cabinet

Highlights:

32" height for use in ADA compliant settings
Factory installed front lock offers convenient security for

stored items
Customizable door front accepts full overlay panels

Product Features:

ADA compliant 32" height for use in settings complying with ADA guidelines for lower counter height
Slim counter height dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Keyed lock offers added security
Integrated door frame Customize the front by mounting an overlay panel over the door; seamless look can blend

into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28
1/4" H)

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment

Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining zero

degrees in the freezer with two evaporators
Zero degree freezer Static manual defrost freezer section offers more stability
Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

AL650LIF Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 107.0 lbs. (49

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior

Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)

L)

Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

3
