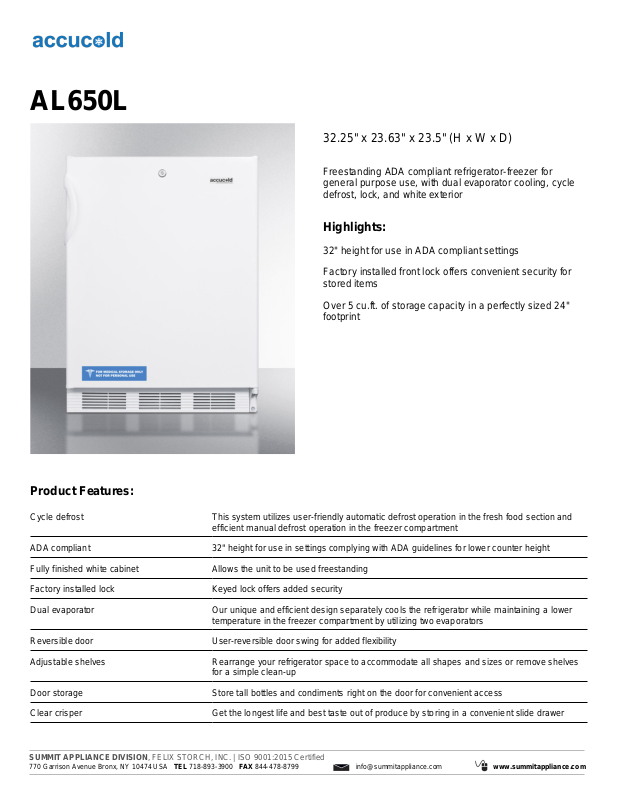

Accucold AL650L Specification Sheet

AL650L

32.25" x 23.63" x 23.5" (H x W x D)

Freestanding ADA compliant refrigerator-freezer for
general purpose use, with dual evaporator cooling, cycle
defrost, lock, and white exterior

Highlights:

32" height for use in ADA compliant settings
Factory installed front lock offers convenient security for

stored items
Over 5 cu.ft. of storage capacity in a perfectly sized 24"

footprint

Product Features:

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
ADA compliant 32" height for use in settings complying with ADA guidelines for lower counter height
Fully finished white cabinet Allows the unit to be used freestanding
Factory installed lock Keyed lock offers added security
Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators
Reversible door User-reversible door swing for added flexibility
Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Door storage Store tall bottles and condiments right on the door for convenient access
Clear crisper Get the longest life and best taste out of produce by storing in a convenient slide drawer

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

AL650L Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 102.0 lbs. (46

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 2
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)

L)

Compressor Step Depth 5.0" (13 cm)

3
