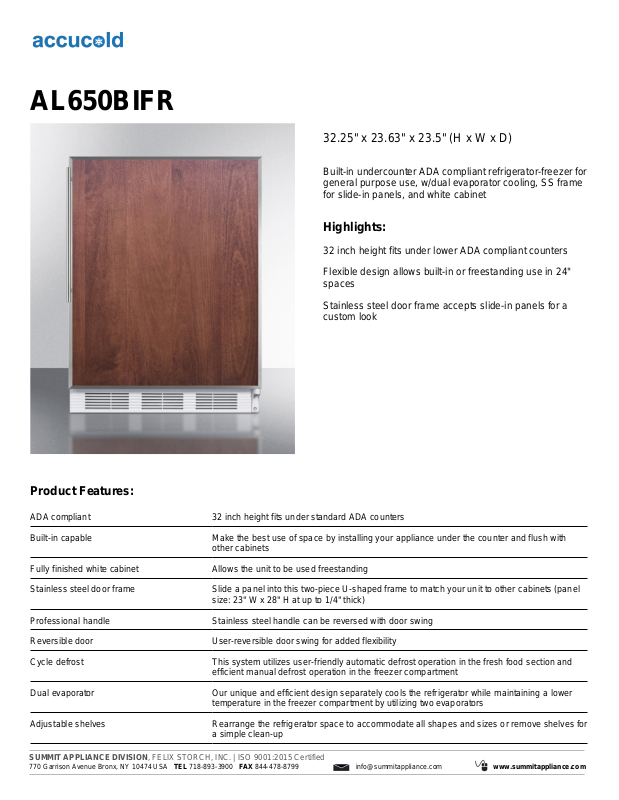

Accucold AL650BIFR Specification Sheet

AL650BIFR

32.25" x 23.63" x 23.5" (H x W x D)

Built-in undercounter ADA compliant refrigerator-freezer for
general purpose use, w/dual evaporator cooling, SS frame
for slide-in panels, and white cabinet

Highlights:

32 inch height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Stainless steel door frame accepts slide-in panels for a

custom look

Product Features:

ADA compliant 32 inch height fits under standard ADA counters
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Stainless steel door frame Slide a panel into this two-piece U-shaped frame to match your unit to other cabinets (panel

size: 23" W x 28" H at up to 1/4" thick)
Professional handle Stainless steel handle can be reversed with door swing
Reversible door User-reversible door swing for added flexibility
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators
Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

AL650BIFR Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 107.0 lbs. (49

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)

L)

Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

3
