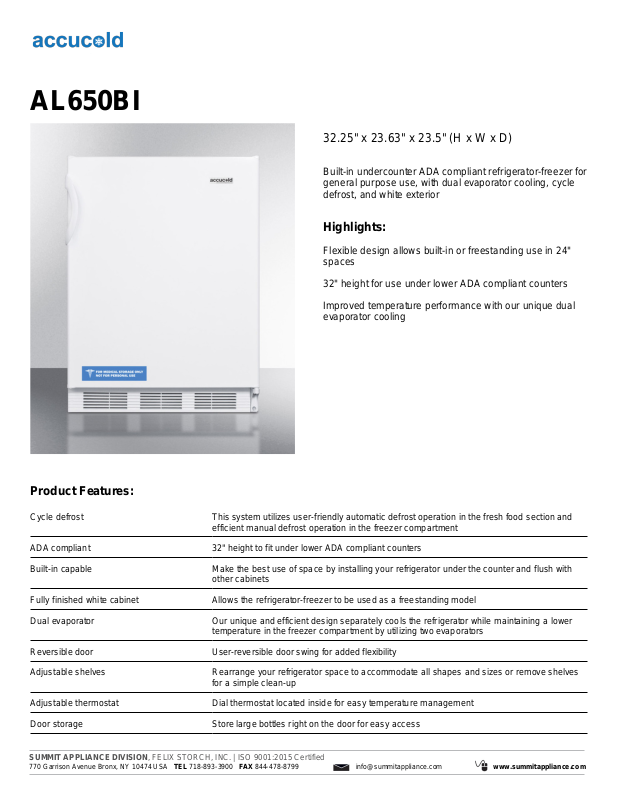

Accucold AL650BI Specification Sheet

AL650BI

32.25" x 23.63" x 23.5" (H x W x D)

Built-in undercounter ADA compliant refrigerator-freezer for
general purpose use, with dual evaporator cooling, cycle
defrost, and white exterior

Highlights:

Flexible design allows built-in or freestanding use in 24"
spaces

32" height for use under lower ADA compliant counters
Improved temperature performance with our unique dual

evaporator cooling

Product Features:

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
ADA compliant 32" height to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your refrigerator under the counter and flush with

other cabinets
Fully finished white cabinet Allows the refrigerator-freezer to be used as a freestanding model
Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators
Reversible door User-reversible door swing for added flexibility
Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Adjustable thermostat Dial thermostat located inside for easy temperature management
Door storage Store large bottles right on the door for easy access

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

AL650BI Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 104.0 lbs. (47

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0" (18 cm)

L)

Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

3
