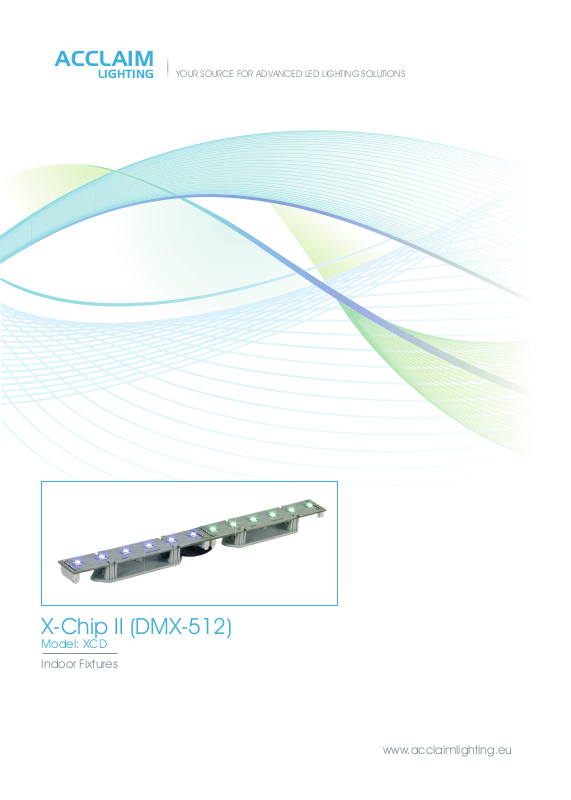

Acclaim Lighting X-Chip ll User Manual

ACCLAIM

LIGHTING

YOUR SOURCE FOR ADVANCED LED LIGHTING SOLUTIONS

X-Chip II (DMX-512)

Model: XCD

Indoor Fixtures

www.acclaimlighting.eu

X-Chip ll

Indoor Fixtures

-xxx-xxxx

XCD

Control:

4 = Master DMX
5 = Slave

Master

Housing:

3 = Gray Color

Master

Cover:

4 = No Cover

Model number

LED Config:

A = 6 SMD LEDs

System

Max. in Chain

Cabling System
Control
DMX Channels
Addressing DMX
Power requirements
Current Consumption
Light Source
Power Consumption
Weight
Housing
Listing
Source Life
Operating Temp.
Storage Temp.
Including

Beam angle:

A = Open beam

ACCLAIM

LIGHTING

24Vdc + DMX

1 pc Masters with 20 pcs Slave
or 32 pcs Masters
2-wire DC Power-cable + 1 DMX Cable
Direct DMX-512, Manual, Stand Alone
Controled by 3 DMX Channels
XB-R1 Setup Tool
24Vdc
70mA Master / 50mA Slave
6 x SMD 5050
1,7W Master / 1,2W Slave
30 gr Master / 10,8 gr Slave
PCB
CE Certified

50.000 hours

-0 °C ~ +40 °C

-20 °C ~ +70 °C
Mounting clips and 1 x 10 cm Link Cable

Version:

Color:

H = RGB

N = Normal

Model Number

XCD-434-AAHN
XCD-534-AAHN

Product name

X-Chip ll -125 Master
X-Chip ll -125 Slave

Length

12,5 cm
12,5 cm

Beam

120º
120º

Dimensions

23mm [0.9 in]

125mm [4.9 in] 22mm [0.9 in]

Projects

Color

RGB
RGB

Delivery including

Mounting clips and 1 x 10 cm Link Cable
Mounting clips and 1 x 10 cm Link Cable

26mm [1.0 in]

82mm [3.2 in]

www.acclaimlighting.eu

** All rights reserved. Improvements changes to specifications, design, and all contents in this catalog may be made at any time without prior notice.
