Acclaim Lighting X-Chip Driver IR User Manual

Download

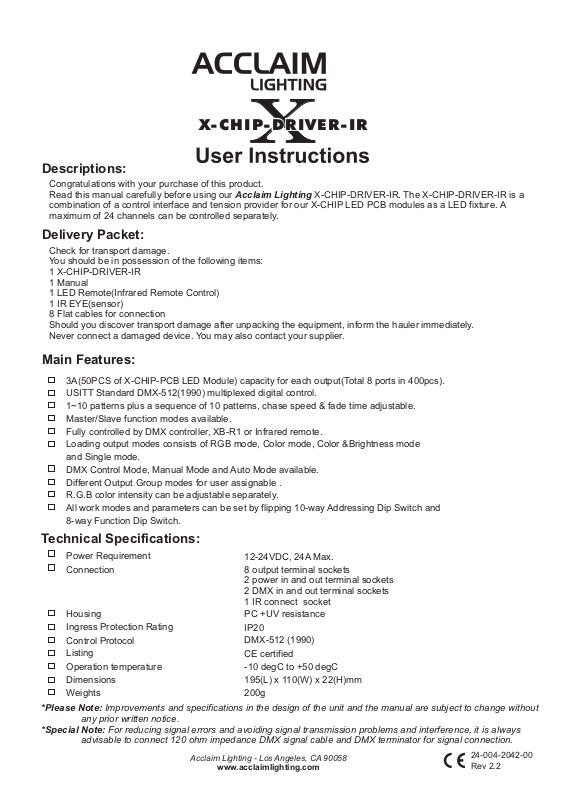

X- CHI P-DRI VER-IRX- CHI P-DRI V ER-IR
X
Descriptions:
Congratulations with your purchase of this product. Read this manual carefully before using our Acclaim Lighting X-CHIP-DRIVER-IR. The is a combination of a control interface and tension provider for our X-CHIP LED PCB modules as a LED fixture. A maximum of 24 channels can be controlled separately.
Delivery Packet:
Main Features:
3A(50PCS of X-CHIP-PCB LED Module) capacity for each output(Total 8 ports in 400pcs). USITT Standard DMX-512(1990) multiplexed digital control. 1~10 patterns plus a sequence of 10 patterns, chase speed & fade time adjustable. Master/Slave function modes available. Fully controlled by DMX controller, XB-R1 or Infrared remote. Loading output modes consists of RGB mode, Color mode, Color &Brightness mode and Single mode. DMX Control Mode, Manual Mode and Auto Mode available. Different Output Group modes for user assignable . R.G.B color intensity can be adjustable separately. All work modes and parameters can be set by flipping 10-way Addressing Dip Switch and 8-way Function Dip Switch.
X-CHIP-DRIVER-IR
Technical Specifications:
Power Requirement Connection
Housing Ingress Protection Rating Control Protocol
Listing Operation temperature Dimensions
Weights
*Please Note: Improvements and specifications in the design of the unit and the manual are subject to change without any prior written notice. *Special Note: For reducing signal errors and avoiding signal transmission problems and interference, it is always advisable to connect 120 ohm impedance DMX signal cable and DMX terminator for signal connection.
Acclaim Lighting - Los Angeles, CA 90058
12-24VDC, 24A Max. 8 output terminal sockets
2 power in and out terminal sockets 2 DMX in and out terminal sockets 1 IR connect socket
PC +UV resistance
IP20 DMX-512 (1990)
CE certified
-10 degC to +50 degC 195(L) x 110(W) x 22(H)mm 200g
www.acclaimlighting.com
24-004-2042-00 Rev 2.2
Connecting the X-CHIP LED PCB modules to the X-CHIP-DRIVER-IR:
5-color rainbow Flat-cable
+
+
+
G R B
GND
G R B
GND
Out 1 Out 2 Out 3 Out 4
Ext. IR Sensor
Power IN
Power Out
DC12V-24V
MAX 6.5A
V+
1
V+
2
3
1GND
Data -
2
Data +
3
DMX IN DMX Out
GND
4
GND
X-C hi p- Dri ve r- IR
Out 5 Out 6 Out 7
+
G R B
GND+G R B
GND+G R B
X-Ch ip-Driver -IR
DMX OUT
GND
ON
1 234
Stand Alone
1 234 Red Fade
DMX Control
001 002
511 512
G R B
DMX Addre ss
5
6
5
6 green speed
5
1 234
GND+G R B
+
G R B
GND
Mode
RS
RS
ON
ON
7
7 8 9
6
OFF
8 9
10
5
7
8
6
1 234
5
7 8
6
1 234
Group
10
blue
5
6
prog
RGB C&B Color
7 8 9
10
Single
7
8
XB-R1 Control DMX Control Manual Auto
Out 8
GND
AC INPUT 100-24 0VAC
1.5mm power cable
2
Power Supply
12-24VDC, 24A Max.
LED REMO TE
On/Off
White
Green
Pattern
Blue
Red
Magenta
Amber
Yellow
Green
Speed
Remote Controller
Brightness
LED
Setting
Unit
Blue
Fade
DMX Controller
Red
Cyan
Auto
IR EYE(S en so r)
DMX Signal
Or
B R G
4
+24V GND
B R G
3
DMX addr ess set ting Mode
+24V GND
X-CH IP Driv er IR
Power /Data s upply
B R G
2
+24V GND
B R G
1
+24V GND
XB-R1
A Setup Tool
ON
ON
Power o ut
+24V
Power in
IR in
Bla ck
G D- D+
8 7 6 5 4 3 2 1
XB-R1 /DMX/M anua l auto con trol
RGB/C& B/Colo r /single
Group
109 8 7 6 5 4 3 2 1
GND
+24V
DMX in
G D- D+
Red
Whi te
5-color rainbow Flat-cable
DMX ou t
GND
+24V
G
8
R B
GND
+24V
G
7
R B
GND
+24V
G
6
R B
GND
GND
+24V
G
5
R B
Red
Whi te
Bla ck
Accessories:
Cyan
Red
Magenta
Green
Yellow
Blue
Amber
White
Pattern
Speed
Red
Green
On/Off
LED Remote
Brightness
Remote Contr oller
Auto
Unit
Setting
Fade
Blue
LED
IR EYE(Sensor)
No. Of units / 24VDC,6.5A power supply
MODE L
X-CHIP-100 DIP
X-CHIP-100 SMD
Standard DMX cable
X-CHIP-300 DIP
X-CHIP-300 SMD
X-CHIP-W15 - 6000K
X-CHIP-W15 - 3200K
QTY.
120
120
120
120
120
120
MODE L
X-CHIP-W15 - Amber
X-CHIP-W12 - 6000K
X-CHIP-W12 - 3200K
X-CHIP-W12 - Amber
X-CHIP-II
QTY.
120
170
170
170
84
NOTE:
1.Providing the tension of 12-24VDC, 24A max can drive up to 50pcs X-CHIP PCB modules per port, the maximum of 400pcs per X-CHIP Driver IR in total.
2.Each PSU of 12-24VDC, 6.5A max can drive up 50pcs X-CHIP PCB modules per port, 120pcs per X-CHIP-DRIVER-IR in total.
-Page 2-
Operation Guide:
1. XB-R1 control(Programming) mode
XB-R1 Control Mode enables. In this mode, the dip-switch 8 (8-way Function Dip Switch) is flipped to the "ON" position and the Output Load Mode is to be in the RGB output mode.
A LED Setup Tool (depicted here) _XB-R1 is required to program the X-CHIP-DRIVER-IR. For further information, please refer to its accompanying manual.
1.1. Slave Control(DMX Mode)
In Slave Control, the settings for the addresses(001-512) and the Glide Effect functions can be adjusted with a LED Setup Tool. There are 12 work modes for Slave Control.
A LED Setup Tool(XB-R1)
(Sold separately)
MODE-1
RGB mode (24 channels in total=8x3 channels)
8 RGB mode: has 8 groups with RGB output, of which each group consists of 3 channels(24 channels in total).
Channel 1-24 / Group 1-8
Group 3 Group 5 Group 6
Output 5 Output 6 Output 7 Output 8
Output 4
17
14
11
12 15 18
Group 7
20 23
21 24
Group 8Group 4
MODE-2
Output 2 Output 3
Color (R/G/B)
Red
Blue
Output 1 Group 1 Group 2
1
4 7 10 13 16 19 22
2
5 8
3 6 9
Color and Brightness mode(16 channels in total=8x2 channels)
8 C&B mode: has 8 groups with color and intensity C&B output, of which each group consists of 2 channels (16 channels in total).
Channel 1-16 / Group 1-8
Group 3 Group 5 Group 6
Output 5 Output 6 Output 7 Output 8
Output 4
9
7
8
11 13 15
12
Group 7
14 16
Group 8Group 4
MODE-3
Output 2 Output 3
C & B
Color
Brightness
Output 1 Group 1 Group 2
123 5
4 6 10
Color mode(8 channels in total=8x1 channels)
8 COLOR mode: has 8 groups with Color control, of which each group consists of 1 channel (8 channels in total). The brightness is always 100% in this mode.
Channel 1-8 / Group 1-8
Group 3 Group 5 Group 6
100%
Output 5 Output 6 Output 7 Output 8
Output 4
6 7
5
4
100% 100% 100% 100% 100%
Group 7
Group 8Group 4
8
MODE-4
Output 2 Output 3
C & B
Color
Brightness
Output 1
Group 1 Group 2
1 2 3
100%
100%
Patch mode RGB of 24 outputs---->12 outputs(4x3 channels)
4 RGB mode: in this mode, 2 outputs are patched. The driver has 6 identical outputs distributed over 4 groups.
Channel 1-12 / Group 1-4
Output 3-4 Output 5-6
Color (R/G/B)
Red
Blue
Output 1-2
Group 1 Group 2
124 7 10
5 8
3 6 9
Output 7-8
Group 3 Group 4
11
12
-Page 3-
MODE-5
Patch mode C&B of 16 outputs---->8 outputs(4x2 channels)
4 C&B mode: has 4 groups with C&B output, of which each group consists of 2 outputs that are controlled by 2 channels(8 channels in total).
Channel 1-8 / Group 1-4
Output 3-4 Output 5-6
C & B
Output 1-2
Group 1 Group 2
Output 7-8
Group 3 Group 4
7
8
MODE-6
Color
Brightness
1
3 5
2
4 6
Patch mode Color of 8 outputs---->4 outputs(4x1 channels)
4 COLOR mode: has 4 groups with Color control, of which each group consists of 2 outputs that are controlled by 1 channel(4 channels in total). The brightness is always 100% in this mode.
Channel 1-4 / Group 1-4
MODE-7
Output 1-2
C & B
Color
Brightness
Output 3-4
Group 1 Group 2
1 2 3
100%
100%
Patch mode RGB of 24 outputs---->6 outputs(2x3 channels)
Output 7-8
Output 5-6
Group 3 Group 4
4
100%
100%
2 RGB mode: in this mode, 4 outputs are patched. The driver has 12 identical outputs distributed over 2 groups.
Channel 1-6
Output 5-8
Color (R/G/B)
Red
Output 1-4
Group 1 Group 2
124
5
MODE-8
Blue
Patch mode C&B of 16 outputs---->4 outputs(2x2 channels)
3 6
2 C&B mode: has 2 groups with C&B output, of which each group consists of 4 outputs that are controlled by 2 channels (4 channels in total).
MODE-9
Patch mode Color of 8 outputs---> 2 outputs(2x1 channel)
C & B
Color
Brightness
Channel 1-4/Group1-2
Output 1-4
Group 1 Group 2
Output 5-8
1
2
3
4
2 COLOR mode: has 2 groups with Color control, of which each group consists of 2 outputs that are controlled by 1 channel (2 channels in total). The brightness is always 100% in this mode.
Channel 1-2/Group1-2
C & B
Color
Brightness
Output 1-4
Group 1 Group 2
100%
Output 5-8
1 2
100%
-Page 4-
MODE-10
Patch mode RGB of 24 outputs---->3 outputs(3x1 channels)
1 RGB mode: in this mode, 8 outputs are patched. The driver has 24 identical outputs distributed over 1 group.
Channel 1-3
Color (R/G/B)
Red
Group 1/ Output 1-8
1
2
MODE-11
Blue
Patch mode C&B of 16 outputs---->2 outputs(2x1 channels)
3
1 C&B mode: has 1 group with C&B output, which consists of 8 outputs that are controlled by 2 channels.
Channel 1-2
Group 1/ Output 1-8
1
2
MODE-12
C & B
Color
Brightness
Patch mode Color of 8 outputs---->1 outputs(1x1 channels)
1 COLOR mode: has 1 group with Color control, which consists of 1 output that is controlled by 1 channel. The brightness is always 100%.
C & B
Color
Brightness
Channel 1
Group 1/ Output 1-8
1
100%
NOTE:
1).The Glide Effect function can be switched on(YES) or off(NO). The transition from one level to another is smoother when this function is switched on.
2).When this function is switched off, the lighting intensity will changed from one level to another abruptly.(thus, when a quick lighting effect is required, the Guide Effect function should be switched off.)
3).If the DMX signal is interrupted, the driver will keep the last received DMX signal(information) until the driver is switched off or a new and valid DMX signal is sent.
4).When in link, the Slave will follow the Master, all parameter settings of each slave connected unit will be of no effect.
1.2.Master Control
AUTO mode and MANUAL mode are for Master Control. Relevant functions are as below:
(1) AUTO mode:
Preset programs:1-10 programs and "AUTO" program ( program is the sequential running of these1-10 programs.)
Auto Speed: 1~100. Auto Fadetime: 0%~100%.
(2) MANUAL mode:
BLUE/Duration: 0%~100%.
RED/Speed: . 0%~100%
NOTE:
1).The LEDs will turn red in Slave Control mode. The LEDs will give responding sensitive when the parameters are adjusted in Master Control.
2).If the LED is not selected in "Setup with answer", it will turn red. If the LED is not selected in :Setup no answer", it will switch off.
When the user confirms the settings of the LED products, the LEDs will flash momentarily to confirm that the setting have been saved.
-Page 5-
"AUTO"
GREEN/Dimmer: . 0%~100%
2.DMX Control Mode(DMX Addressing)
In this mode, the dip-switch 7 is flipped to the "ON" position the dip-switch 8(8-way function Dip Switch) is to the "OFF" position. And these switches sometimes used to activate a fixture special functions.
1 2 3 4 5 6 7 8
ON
1 =
(8-way Function Dip Switch)
OFF
0=
DMX is short for Digital Multiplex. This is a universal binary language used as a form of communication between intelligent fixtures. Each Dip Switch(10-way Addressing Dip Switch) represents a binary value.
ON
Dip Switch 1 address equals 1 Dip Switch 2 address equals 2 Dip Switch 3 address equals 4
Dip Switch 4 address equals 8 Dip Switch 5 address equals 16 Dip Switch 6 address equals 32 Dip Switch 7 address equals 64
Dip Switch 8 address equals 128 Dip Switch 9 address equals 256
1 2 3 4 5 6 7 8 9 10
START
CH#
1 2 3 4 5 6 7 8 9
10
1 =
(10-way Addressing Dip Switch)
0=
OFF
1,2
1,3 2,3
1,2,3
1,4 2,4
START
CH#
1
11
2
12 13
3
14 15
.. ..
4
..
511
..
1,2,4
3,4 1,3,4 2,3,4
1,2,3,4
.. .. ..
1,2,3,4,5,6,7,8,9
..
SWITCHES ON SWITCHES ON
Dip Switch 10 address equals 512
A DMX value(address) is set by combining the different dipswitches that will add up to the value you wish to achieve, for example:
3.AUTO Control Mode
Setting DMX address for 21. Flip switches1,3,&5 to the "ON" position
1=1 3=4
Dipswitches# Value
5=16 =21
Setting DMX address for 201. Flip switches1,4,7,& 8 to the "ON" position
1=1 4=8
Dipswitches# Value
7=64 8=128 =201
In this mode, the dip-switch 7 and 8(8-way function Dip Switch) are flipped to the "OFF" position, and the dip-switch 10(10-way Addressing Dip Switch) to the "ON" position. Flip the dip-switch 1~3(10-way Addressing Dip Switch) to select fade time, the dip-switch 4~6 (10-way Addressing Dip Switch)to select chase speed and the dip-switch 7~9 ( 10-Way Addressing Dip Switch) to select built-in 8 patterns. Their details can be referred to the below table;
8-way Function Dip Switch
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8 9 10
10-way Addressing Dip Switch
1 =
0=
ON
OFF
1
2
000 100 010 110 001 101 011 111
3
0%
14% 28% 43% 57% 71% 86%
100%
1 =
0=
ON
OFF
4
000 100 010 110 001 101 011 111
ON
512S 180S
55S 16S
4.5S
1.3S
0.3S
1 =
0=
OFF
7 8
000 100 010 110 001 101 011 111
9
1 2 3 4 5
"0" = "OFF" position "1" = "ON" position.
6 7 8
6
5
4.Manual Control Mode
In this mode, the dip-switch 7 and 8(8-way Function Dip Switch) are flipped to the "OFF" position, and the dip-switch 10(10-way Addressing Dip Switch) to the "OFF" position.
1 2 3 4 5 6 7 8
8-way Function Dip Switch
1 2 3 4 5 6 7 8 9 10
10-way Addressing Dip Switch
4.1. RGB output mode enables, flip the dip-switch 1~3(10-way Addressing Dip Switch) to adjust Red color, the dip
-switch 4~6(10-way Addressing Dip Switch) to adjust Green color, the dip-switch 7~9(10-way Addressing Dip Switch) to adjust Blue color. For more RGB color adjustment, please refer to the following table;
1 =
0=
ON
OFF
1
2
000 100 010 110 001 101 011 111
3
0%
14% 28% 43% 57% 71% 86%
100%
1 =
0=
ON
OFF
4
5
000 100 010 110 001 101 011 111
6
0%
14% 28% 43% 57% 71% 86%
100%
1 =
0=
ON
OFF
7 8
000 100 010 110 001 101 011 111
9
0%
14% 28% 43% 57% 71% 86%
100%
"0" = "OFF" position "1" = "ON" position.
-Page 6-
1 =
0=
ON
OFF
4.2. SINGLE output mode enables, flip the dip-switch 1~8(10-way Addressing Dip Switch)to set the intensity. The
dip-switch 9 disable. Each dip-switch represents a binary value.
Dip Switch 1 intensity equals 1 Dip Switch 2 intensity equals 2 Dip Switch 3 intensity equals 4 Dip Switch 4 intensity equals 8 Dip Switch 5 intensity equals 16 Dip Switch 6 intensity equals 32 Dip Switch 7 intensity equals 64 Dip Switch 8 intensity equals 128
The intensity can be set by combining the different dipswitches that will add up to the value you wish to achieve, for example:
Example 1:
Setting the intensity for 21. Flip switches1,3,&5 to the "ON" position
Dipswitches# Value
5.Output Group Mode Setting
Example 2:
1=1 3=4 5=16 =21
Setting the intensity for 201. Flip switches1,4,7,& 8 to the "ON" position
1=1 4=8
Dipswitches# Value
7=64 8=128 =201
In the function, the dip-switch 7(8-way Function Dip Switch) is flipped to the "ON" position and the dip-switch 8 to the "OFF" position. And use the dip-switch 1~4 of 8-way Function Dip Switch to set the desired Output Group Modes.
ON
1 =
8-way Function Dip Switch
0=
OFF
1 2 3 4 5 6 7 8
5.1. RGB output mode enables
5.1.1. 8 Group Output Mode is engaged by flipping the dip-switch 4 of 8-way Function Dip Switch to the "ON"
position. In this mode, has 8 groups with RGB output, of which Output 1~8 is not perfectly identical.
5.1.2. 4 Group Output Mode is engaged by flipping the dip-switch 3 of 8-way Function Dip Switch to the "ON" position. In this mode, has 2 identical outputs distributed over 4 groups with RGB output.
5.1.3. 2 Group Output Mode is engaged by flipping the dip-switch 2 of 8-way Function Dip Switch to the "ON" position. In this mode, has 4 identical outputs distributed over 2 groups with RGB output.
5.1.4. 1 Group Output Mode is engaged by flipping the dip-switch 1 of 8-way Function Dip Switch to the "ON" or " OFF" position. In this mode, has 1 group with RGB output and Output 1~8 is identical.
5.2. SINGLE output mode enables
1 =
0=
ON
OFF
1 2
0000 1000 0100 1100 0010 1010 0110
1110 1111 0001
3
4
"0" = "OFF" position "1" = "ON" position.
1 Group Output 2 Group Output 3 Group Output 4 Group Output 6 Group Output 8 Group Output 12 Group Output
24 Group Output
5.2.1. In 1 Group Output mode, has 1 group with Single output and
Output 1~24 is identical.
5.2.2. In 2 Group Output mode, has 12 identical outputs distributed over 2 groups with Single output.
5.2.3. In 3 Group Output mode, has 8 identical outputs distributed over 3 groups with Single output.
5.2.4. In 4 Group Output mode, has 6 identical outputs distributed over 4 groups with Single output.
5.2.5. In 6 Group Output mode, has 4 identical outputs distributed over 6 groups Single output.
5.2.6. In 8 Group Output mode, has 3 identical outputs distributed over 8 groups with Single output.
5.2.7. In 12 Group Output mode, has 2 identical outputs distributed over 12 groups with Single output.
5.2.8. In 24 Group Output mode, has 24 groups with Single output, of which Output1~24 is not identical.
-Page 7-
6.Output Load Mode Setting(Functions Setup)
In the function, user can flip the dip-switch 5~6 of the 8-way Function Dip Switch to set the desired Output Load Modes.
6.1.SINGLE output mode
In the mode, the dip-switch 5,6 are flipped to the "OFF" position, and one output with Single is controlled by one channel. The output is set with Single output.
6.2.COLOR output mode
In the mode, the dip-switch 5 is flipped to the "ON" position, and the dip-switch 6 to the "OFF" position, one output with Color control of RGB is controlled by one channel. The output is set with RGB output.
6.3.COLOR&BRIGHTNESS output mode
In the mode, the dip-switch 5 is flipped to the "OFF" position, and the dip-switch 6 to the "ON" position, one output with Color & Intensity control is controlled by two channels. The output is set with RGB output.
6.4.RGB output mode
In the mode, the dip-switch 5,6 are flipped to the "ON" position, one output with R.G.B. Control is controlled by three channels separately. And the Red effect is controlled by Channel1, the Green effect is controlled by Channel 2 and the Blue effect is controlled by Channel3. The Output Mode is set as the RGB mode.
1 =
0=
ON
OFF
5
6
"0" = "OFF" position "1" = "ON" position.
00
SINGLE
10
COLOR
01
C&B
11
RGB
7.LED Remote(Infrared Remote Control) Operation
Cyan
In this function, the dip-switch 8 is flipped to the "OFF" position, and all work modes and relative parameters can be set by operating the Infrared Remote. Before operation, the IR EYR(Sensor) should be connected properly.
7.1.Connecting the IR EYE(Sensor) to the X-CHIP-DRIVER-IR
7.1.1 Before connecting, please isolate the main power.
7.1.2 Plug the IR EYE(Sensor) into the Stereo Jack correctly.
7.1.3 Thus, turn the main power on.
Note:
1).Once you've confirmed all work modes and relative parameters, you can remove the IR EYE(Sensor).
2).NEVER remove the IR EYE(Sensor) when powering on for preventing from the damage.
7.2.Operation Instructions
7.2.1 Before operation, make sure the batteries(3V, Cr2025) have been installed properly.
7.2.2 Operation Instructions There are 8 dedicated color brightness keys (marked Red, Green, Blue, White, Cyan, Magenta, Yellow, Amber) on the control interface. The On/Off, Auto, Unit setting, up and down keys-marked for "up" and for "down") are on the remote control as well.
Their detailed functions will be illustrated in the next table.
Red
Magen ta
Green
Yellow
Blue
Brightness
Amber
White
Pattern
Speed
Red
Green
On/Of f
LED
Remote C ontro ller
LED Remote
Setting
Auto
Unit
Fade
Blue
-Page 8-
Pushbuttons&Keys Functions
ON/OFF pushbutton
RED pushbutton
GREEN pushbutton
BLUE pushbutton
CYAN pushbutton
MAGENTA pushbutton
YELLOW pushbutton
WHITE pushbutton
AMBER pushbutton
AUTO pushbutton
Power ON/OFF
Red, 100% brightness
Green, 100% brightness
Blue, 100% brightness
Cyan, 100% brightness
Magenta, 100% brightness
Yellow, 100% brightness
White, 100% brightness
Amber, 100% brightness
The color is changing automatically, and the brightness is 100%.
PATTERN/RED key
PATTERN/RED key
SPEED/GREEN key
SPEED/GREEN key
FADE/BLUE key
FADE/BLUE key
BRIGHTNESS key
BRIGHTNESS key
UNIT SETTING pushbutton
NOTE:
1.The built-in patterns consists of
2.There are optional 10 different levels for chase speed;
Select next pattern / increase red brightness. Holding the key down will gradually increase the brightness to its maximum value.
Select previous pattern / decrease red brightness. Holding the key down will gradually decrease the brightness to its minimum value.
Increase speed/ increase green brightness. Holding the key down will gradually increase the brightness to its maximum value.
Decrease speed / decrease green brightness. Holding the key down will gradually decrease the brightness to its minimum value.
Increase fadetime/ increase blue brightness. Holding the key down will gradually increase the brightness to its maximum value.
Decrease fadetime / decrease blue brightness. Holding the key down will gradually decrease the brightness to its minimum value.
Increase master brightness. Holding the key down will gradually increase the brightness to its maximum value.
Decrease master brightness. Holding the key down will gradually decrease the brightness to its minimum value.
Cancel the infrared remote operations. All settings will be done by flipping dip-switches.
1~10 patterns plus a sequence of 10 patterns.
Speed
Time
3.And fade time is available from 0% through 100%, total 11levels, 10% per level.
4.Effective distance from IR EYE(sensor) to LED Remote shall be limited within the range of 10m. Otherwise, it results out of control.
10
1S
9
2S
4S
8
7
8S
6
16S
5 4 3 2 1
32.5S 65S 130S 260S 512S
-Page 9-
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
