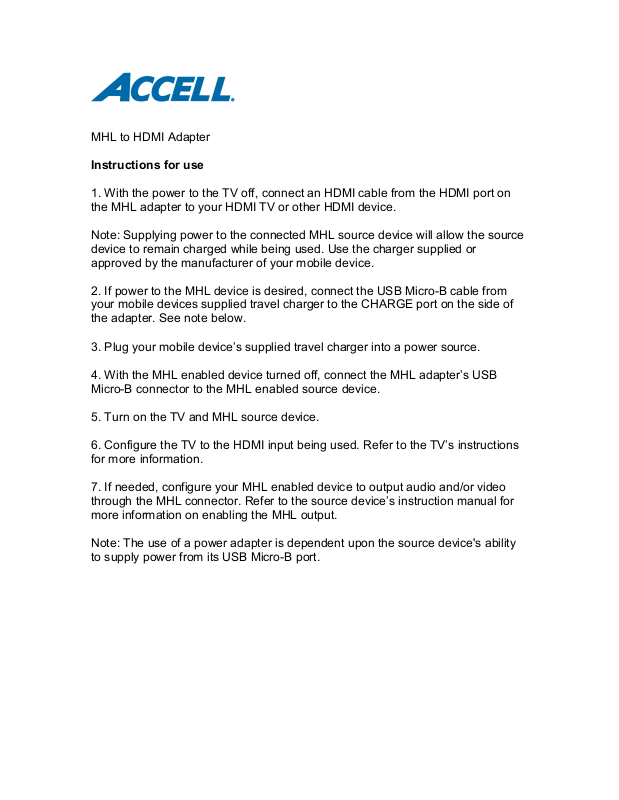

Accell MHL User Manual

Note: The use of a power adapter is dependent upon the source device's ability

MHL to HDMI Adapter

Instructions for use

1. With the power to the TV off, connect an HDMI cable from the HDMI port on
the MHL adapter to your HDMI TV or other HDMI device.

Note: Supplying power to the connected MHL source device will allow the source
device to remain charged while being used. Use the charger supplied or
approved by the manufacturer of your mobile device.

2. If power to the MHL device is desired, connect the USB Micro-B cable from
your mobile devices supplied travel charger to the CHARGE port on the side of
the adapter. See note below.

3. Plug your mobile device’s supplied travel charger into a power source.

4. With the MHL enabled device turned off, connect the MHL adapter’s USB
Micro-B connector to the MHL enabled source device.

5. Turn on the TV and MHL source device.

6. Configure the TV to the HDMI input being used. Refer to the TV’s instructions
for more information.

7. If needed, configure your MHL enabled device to output audio and/or video
through the MHL connector. Refer to the source device’s instruction manual for
more information on enabling the MHL output.

to supply power from its USB Micro-B port.
