ACADIA ELECTRONIC JP26 User manual

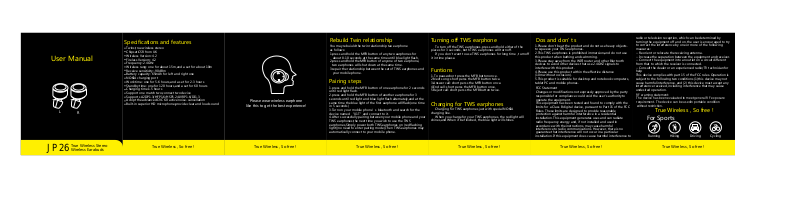

User Manual

L

R

JP26

True Wireless Stereo
Wireless Earabuds

Specifications and features

Twins,true wireless stereo
Chipset:CSR from UK
Wireless Version: 4.2
Fireless Versiom: 4.2
Frequency: 2.4GHz
Wireless rang: one for about 15m,and a set for about 10m
Receive sensitivity:-90dBm
Battery capacity: 65mAh for left and right one
NOKIA charging port
Work time: one for 5-6 hours,and a set for 2-3 hours
Standby time: one for 120 hours,and a set for 60 hours
Charging time:1.5 hours
Support one match two,connect two device
Supports A2DP1.3/HFP1.6/HSP1.2/AVRP1.6/DI1.3
Adopt the advanced CVC6.0 active noise-cancellation
Built-in superior HD microphone,provide clear and loud sound

Please wear wireless earphone

like this to get the best experience!

Rebuild Twin relationship

You may rebuiuld the twin relationship tao earphone
as follows:

1.press and hold the MFB button of any two earphones for
about 8-10 seconds at the same time until blue light flash,

2.press and hold theMFB button of anyone of two earphone,
wo earphones will shut down at the same time.

t

3.repair the relationship between the set of TWS earphones and

your mobile phone.

Pairing steps

1.press and hold the MFB button of one earphone for 2 seconds

until red light flash.

2.press and hold the MFB button of another earphone for 3

seconds until red light and blue light flash alternately,and at the
same time the blue light of the first earphone will flash(one time
in 5 seconds)

3.Turn on your mobile phone’s bluetooth and search for the

device named “X1T”and connect to it.

4.After successfully pairing between your mobile phone and your

TWS earphones,the next time you wish to use the TWS
earphones,Simply power both TWS earphones on (red flashing
light)(no need to enter pairing mode),Then TWS earphones may
automatically connect to your mobile phone.

Turning off TWS earphone

To turn off the TWS earphones, press and hold either of the
pieces for 3 seconds, both TWS earphones will turn off.
If you don’t want to use TWS earphones for long time , turn off
it in time please.

Funtions

1. To pause:short press the MFB button once.

2.Next song: short perss the MFB button twice.

3.Answer call: short perss the MFB button once.

4.End call: short perss the MFB button once.

5.Reject call: short perss the MFB button twice.

Charging for TWS earphones

Charging for TWS earphones just with special NOKIA
charging line.
When you charge for your TWS earphones, the red light will
shines,and When it be finished, the blue light will shines.

Dos and don’t s

1.Please don’t beat the product and do not use heavy objects.
to squeeze your TWS earphones.

2.This TWS earphones is prohibited immersion,and do not use
this product when bathing and swimming.

3.Please stay away from the WIFI router and other Blurtooth
devices to avoid other devices that use 2.4GHZ signals to
interfere with this product.

4.Please use this product within the effective distance
(10m without occlusion).

5.This product is suitable for desktop and notebook computers,
tablet PC and mobile phones.

FCC Statement
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

True Wireless , So free ! True Wireless , So free ! True Wireless , So free ! True Wireless , So free ! True Wireless , So free !

radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for
help
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions (1)this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

RF warning statement:

The device has been evaluated to meet general RF exposure
requirement. The device can be usedin portable condition

without restriction.

True Wireless , So free !

For Sports

Running

True Wireless , So free !

Driving

CyclingHiking
