Thank you for purchasing this ECOLINE IR illuminator.
You made the right decision in choosing this state-of-the-art technology, which
complies with the current standards of domestic and European regulations. The
CE has been proven and all related certifications are available from the
manufacturer upon request. To maintain this status and to guarantee safe
operation, it is your obligation to observe these operating instructions.
This ECOLINE IR illuminator is fitted with 24 infrared LEDs. It guarantees long
life and a high degree of reliability. The illuminator uses first-class microelements
that are resistant to external electromagnetic fields. It offers cutting-edge
technology for advanced video surveillance.
2
2. Scope of delivery
IR illuminator
Installation instructions
Fixing bracket
Fastening screws
3. Features
The IR illuminator of the ECOLINE series has the following specifications:
a) Range up to 10m
(up to 18m, depending on the degree of reflection in the environment)
b) 70° radiation angle
c) Protection level IP67 (for internal or external use)
d) Lifetime of LEDs up to 6000 hours
e) Low power consumption
f) Automatic switch-on/off by daylight sensor
3
4. Precautions
To protect your guarantee rights and avoid damage, open the housing of the
IR Illuminator only if directed by a specialist or our technical support staff.
Operate the IR illuminator only within the specified temperature,
humidity and power ranges.
Operating the IR illuminator outside the prescribed range can lead to reduced
product life and early malfunction. Greatly exceeding the specified operating
range can also result in immediate failure of the LEDs. All specifications can be
found in the technical data.
Handle the IR illuminator with care.
When installing the floodlight, make sure it is not subject to excessive physical
stress (shocks, vibrations, etc.). It should be installed in a place that is free from
shocks and vibration. Incorrect handling and transport can lead to damage to
the illuminator.
4
6. Description of the IR Illuminator
(1) IR illuminator
(2) Fixing bracket
(3) Cable connection /
splitter
(4) Accessories bag
1
2
4
(A) Wall fastening screws
(B) Washers
(C) Cover for fixing screws
(D) Fixing screws
(E) Screw for fixing bracket to a camera
3
B
A
D
C
E
5
7.1 Wall mounting
2
1. Select a suitable place to mount the illuminator.
2. Fix the bracket at a suitable position.
A
6
3. Fix the illuminator to the bracket using the screws supplied.
1
4. Make sure the illuminator is pointing in the same direction as the camera.
5. Install the illuminator as near as possible to the object you want to monitor.
6. Note that the range of the illuminator is largely dependent on the amount
of reflected light in the surroundings and the IR sensitivity of the camera
used.
D
C
B
12V
7

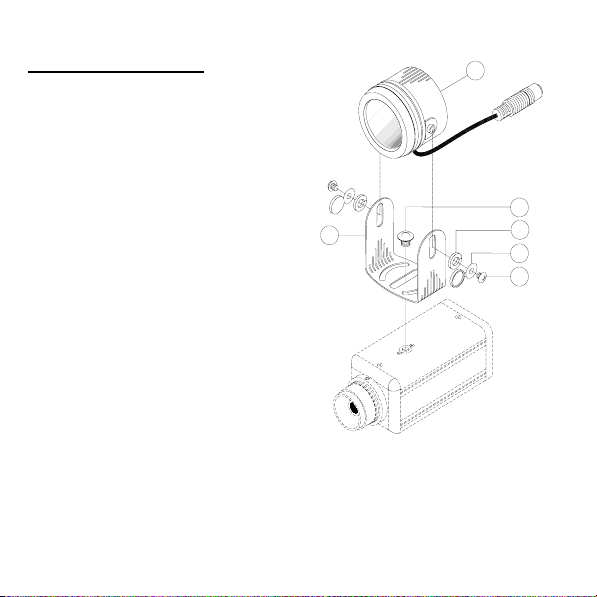

7.2 Camera mounting
1. It is also possible to mount the
illuminator directly on to a
camera, providing the camera has
a screw socket with the correct
thread on its upper surface.
2. Fix the bracket using the screw
provided.
3. Make sure the illuminator is
pointing in the same direction as
the camera.
4. Note that the range of the
illuminator is largely dependent on
the amount of reflected light in the
surroundings and the IR sensitivity
of the camera used.
12V
1
E
2
B
C
D
8
8. Connecting and aligning
1. Connect a 12V DC power supply to the power input of the illuminator.
Check for correct polarity.
-
2. The illuminator is activated by a daylight sensor (below 10 Lux).
3. Check the orientation and angle of the illuminator.
4. If necessary, adjust the angle of the illuminator and then tighten the screws.
9. Changing the IR LEDs
The LEDs used will operate for an average of 6000 hours. This corresponds to
about 2 years. If you notice a deterioration in range after this time, replace the IR
LEDs. A suitable replacement PCB (article no. TV6701) is
available.
+
9
10. Technical data
Model number TV6700
Power source 12V DC
Power consumption 2.5W
Illumination 24 IR LEDs
Lifetime Ca. 6000 hours / 2 years
Wavelength 850nm
Radiation angle 70°
Range 10m – 18m
Protection type IP 67
Ambient operating
temperature
Dimensions /
Weight
-10°C – +50°C
Ø53 x 37mm / 200g
10
