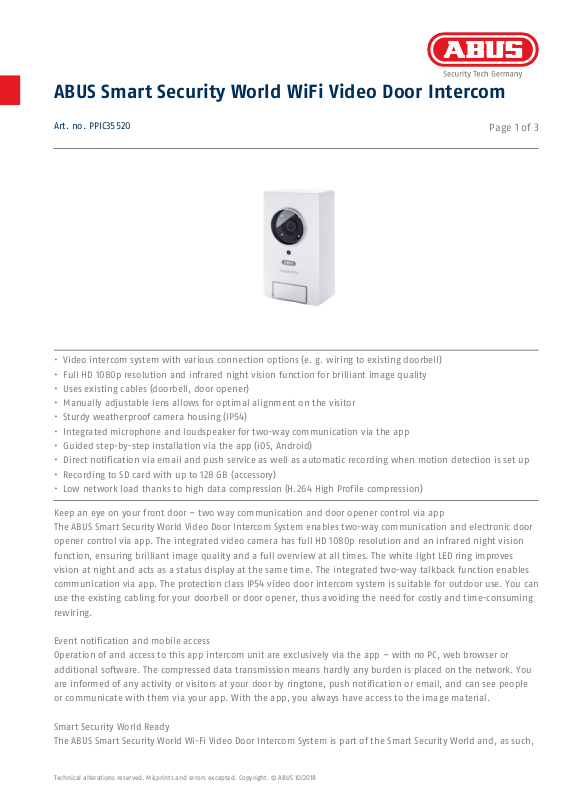

ABUS Smart Security World WiFi Video Door Intercom
Art. no. PPIC35520
Video intercom system with various connection options (e. g. wiring to existing doorbell)
•
Full HD 1080p resolution and infrared night vision function for brilliant image quality
•
Uses existing cables (doorbell, door opener)
•
Manually adjustable lens allows for optimal alignment on the visitor
•
Sturdy weatherproof camera housing (IP54)
•
Integrated microphone and loudspeaker for two-way communication via the app
•
Guided step-by-step installation via the app (iOS, Android)
•
Direct notification via email and push service as well as automatic recording when motion detection is set up
•
Recording to SD card with up to 128 GB (accessory)
•
Low network load thanks to high data compression (H.264 High Profile compression)
•
Page 1 of 3
Keep an eye on your front door – two way communication and door opener control via app
The ABUS Smart Security World Video Door Intercom System enables two-way communication and electronic door
opener control via app. The integrated video camera has full HD 1080p resolution and an infrared night vision
function, ensuring brilliant image quality and a full overview at all times. The white light LED ring improves
vision at night and acts as a status display at the same time. The integrated two-way talkback function enables
communication via app. The protection class IP54 video door intercom system is suitable for outdoor use. You can
use the existing cabling for your doorbell or door opener, thus avoiding the need for costly and time-consuming
rewiring.
Event notification and mobile access
Operation of and access to this app intercom unit are exclusively via the app – with no PC, web browser or
additional software. The compressed data transmission means hardly any burden is placed on the network. You
are informed of any activity or visitors at your door by ringtone, push notification or email, and can see people
or communicate with them via your app. With the app, you always have access to the image material.
Smart Security World Ready
The ABUS Smart Security World Wi-Fi Video Door Intercom System is part of the Smart Security World and, as such,
Technical alterations reserved. Misprints and errors excepted. Copyright. © ABUS 10/2018
ABUS Smart Security World WiFi Video Door Intercom
Art. no. PPIC35520
is not only functional, but is also fully integrated into the app. This means there are no concessions in terms of
convenience during installation, and users simply follow the intuitive step-by-step installation instructions.
Information on the night vision function
The effective IR range will depend on the installation location.
Page 2 of 3
Technical alterations reserved. Misprints and errors excepted. Copyright. © ABUS 10/2018
ABUS Smart Security World WiFi Video Door Intercom
Powered by TCPDF (www.tcpdf.org)
Art. no. PPIC35520
Technical Data:
Material Plastic
Color White
Number of simultaneous
3
accesses
Technology IP
Compatible with Secvest No
Compatible with wAppLoxx No
Minimum illumination
(color)
Minimum illumination (IR) 0 lx
Mobile access Yes
Net weight 0,28 kg
Video network bandwidth 0,3 - 2 Mbit/s
LAN network access Ethernet (10/100
Compatible with Smartvest Yes
Dimensions (W x L x H) 81,5 x 45,6 x 142
mm
Alarming E-Mail, Push
Wi-Fi network access IEEE 802.11 b/g/n
Network functions E-Mail, Push
Network camera protocols TCP/IP, UDP, SMTP, NTP,
Connections 1x terminal block (DC,
doorbell, relay), 1x network
terminal block
Number of IR LEDs 6
Audio 2-Way
Resolution 2MPx
Recording resolution @
1920x1080p @ 15fps
Lens Fix
Range of night vision
function
IP protection class 54
Pan/tilt area Manually adjustable:
frame rate per camera
Resolution modes 1080p , 720p , VGA
Recording modes 1080p
Motion detection Software + Motion Mask
Image sensor 1/2,9" CMOS
Pixels (total) 1920 x 1080 pixel
Frame rate 20 fps
Width 81 mm
Transmission power 20
Sensitivity -90
Software App2Cam Plus
AC voltage supply 24-36 V
DC voltage supply 12-48 V
Storage medium Micro-SD (128GB)
Language of instructions DE, UK, FR, NL, DK, ES, IT,
Focal length 4 mm
Gross weight 0,68 kg
OSD language DE, UK, FR, NL, DK, ES, IT,
Digital zoom 4x
Dynamic range (WDR) 90 dB
Frequency 2,4 GHz
Backlight compensation ABLC
Packaging language DE, UK, FR, NL, DK, IT, PL
Power consumption 400 mA
Day/night switching Electromechanical IR-cut
Height 142 mm
Horizontal angle of view 100 °
Camera type Door Intercom
Compatible with App2Cam Plus, Smartvest
Length 46 mm
Power consumption 5 W
Max. resolution @ frame
1920x1080p @ 20fps
Encryption AES 128bit, WPA/WPA2-PSK
Video compression H.264
Pre-alarm/post-alarm
memory
White balance AWB
White light LEDs 12 It.
rate
Max. operating
40 °C
temperature
Technical alterations reserved. Misprints and errors excepted. Copyright. © ABUS 10/2018
Max. humidity 90 %
Microphone Yes
Page 3 of 3
1 lx
Base-T/Base-TX);
DHCP, ARP
1,5 m
vertical +/- 7.5%,
horizontal +/- 2.5%
PL, SWE
PL, SWE
filter, Color/B-W
2 Sec
