ABUS IPCA72505 operation manual

IPCA22500 / IPCA32500 / IPCA52000 /
IPCA62500 / IPCA62505 /
IPCA72500 / IPCA72505
Version 10/2017
English translation of the original German user manual. Retain for future reference.
Introduction
Dear customer,
Thank you for purchasing this product.
IPCA22500 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA22500
IPCA32500 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA32500
IPCA52000 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA52000
IPCA62500 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA62500
IPCA62505 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA62505
IPCA72500 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA72500
IPCA72505 This device complies with the requirements of the following EU directives: the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at: www.abus.com/product/IPCA72505
To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual.
Read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information.
All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.
If you have any questions, please contact your specialist installation contractor or specialist dealer.
Disclaimer
This user manual has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please let us know about them. ABUS Security-Center GmbH & Co. KG does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for any direct or indirect damage resulting from the installation, performance and use of this product. No forms of guarantee are accepted for the contents of this document.
Important safety information
All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.
In the event of material or personal damage caused by improper operation or non­compliance with the safety information, we cannot be held liable. All guarantee claims are void in such cases.
Dear customer, The following safety information and hazard notes are not only intended to protect your health but also to protect the device from damage. Please read the following points carefully:
There are no components inside the product that require maintenance by the operator. Opening or
dismantling the product invalidates the CE certification and guarantee claims/warranty.
The product may be damaged if it is dropped, even from a low height.
Avoid the following adverse conditions during operation:
Moisture or excess humidity  Extreme heat or cold  Direct sunlight  Dust or flammable gases, vapours or solvents  Strong vibrations  Strong magnetic fields (e.g. next to machines or loudspeakers)  The camera must not be installed on unstable surfaces.
General safety information:
Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc.
can pose a danger to children if played with.
The video surveillance camera contains small parts which could be swallowed and should be kept
out of reach of children for safety reasons.
Do not insert any objects into the device through the openings.  Only use replacement devices and accessories that are approved by the manufacturer. Do not
connect any non-compatible products.
Please pay attention to the safety information and user manuals for the other connected devices.  Check the device for damage before putting it into operation. Do not put the device into operation if
you detect any damage.
Adhere to the operating voltage limits specified in the technical data. Higher voltages could destroy
the device and pose a health risk (electric shock).
When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.
If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installation puts both you and other persons at risk. Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.
Contents
1. INTENDED USE ................................................................................................................... 60
2. EXPLANATION OF SYMBOLS ........................................................................................... 60
3. SCOPE OF DELIVERY ........................................................................................................ 60
4. FEATURES AND FUNCTIONS ............................................................................................ 62
5. DEVICE DESCRIPTION ....................................................................................................... 63
OVERVIEW – MODEL NUMBERS ............................................................................................. 63
5.1
5.2
UNPACKING THE DEVICE ........................................................................................................ 63
5.3
OVERVIEW OF CONNECTIONS, CONTROL ELEMENTS, FRONT/BACK .......................................... 64
6. INSTALLATION ................................................................................................................... 70
6.2
LAYING THE CABLES .............................................................................................................. 70
6.3
POWER SUPPLY .................................................................................................................... 71
6.4
ATTACHING THE NETWORK CABLE.......................................................................................... 72
ALIGNING THE CAMERA ......................................................................................................... 72
6.5
6.6
ZOOM AND FOCUS SETTINGS ................................................................................................. 72
6.7
ATTACHING THE OPTIONAL CONNECTING CABLE FOR IPCA32500, IPCA72500 AND IPCA72505
.................................................................................................................................................. 73
6.8
SWITCHING INPUT AND SWITCHING OUTPUT ........................................................................... 73
6.9
STATUS INDICATORS ............................................................................................................. 74
6.10
CONNECTION INSTRUCTIONS FOR AUDIO INPUT/OUTPUT ....................................................... 74
6.11
RESTORING FACTORY SETTINGS (RESET) ............................................................................. 75
6.12
CHANGING THE DOME ......................................................................................................... 75
6.13
EXCHANGE OF MICROSD CARD (ONLY IPCA32500, IPCA72500, IPCA72505)..................... 76
7. INITIAL START-UP .............................................................................................................. 77
7.1
USING THE ABUS IP INSTALLER FOR CAMERA SEARCH .......................................................... 77
7.2
ACCESSING THE NETWORK CAMERA USING A WEB BROWSER .................................................. 78
7.2.1

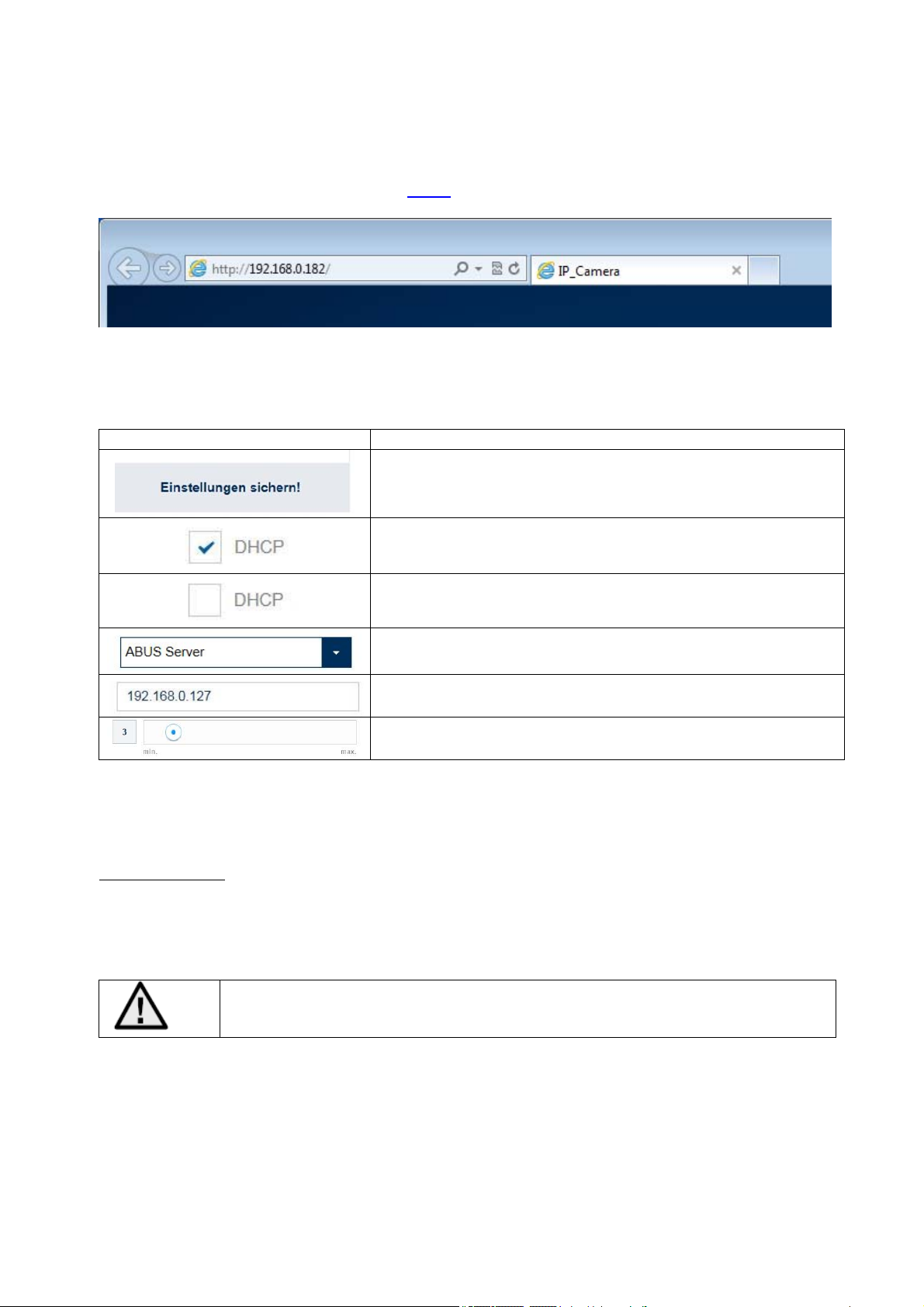

GENERAL INSTRUCTIONS FOR USING THE SETTINGS PAGES ................................................. 78
7.3
INSTALLING A VIDEO PLUGIN .................................................................................................. 78
HOMEPAGE (LOGIN PAGE) ..................................................................................................... 80
7.4
7.5
USER ACCOUNTS AND PASSWORDS ....................................................................................... 81
8. USER MENU "USER" .......................................................................................................... 82
9. VIEW AND CONFIGURATION MENU USER "MASTER" .................................................. 84

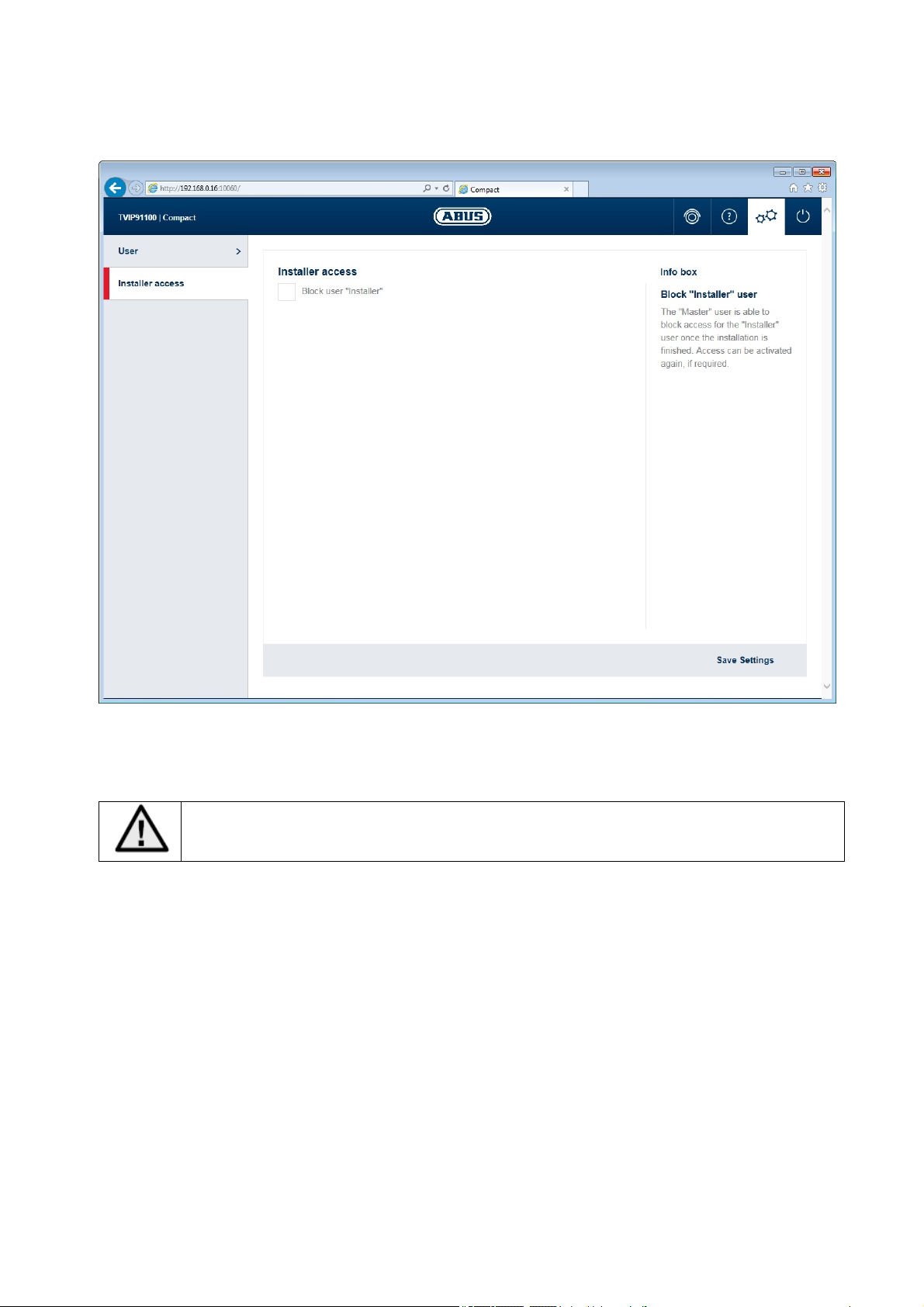

DEACTIVATE/ACTIVATE INSTALLER ACCESS ............................................................................ 86
9.1
9.2
DISPLAYING/DOWNLOADING VIDEO FROM THE INTERNAL MEMORY ........................................... 87
10. VIEW AND CONFIGURATION MENUS USER "INSTALLER" ........................................... 88
10.1

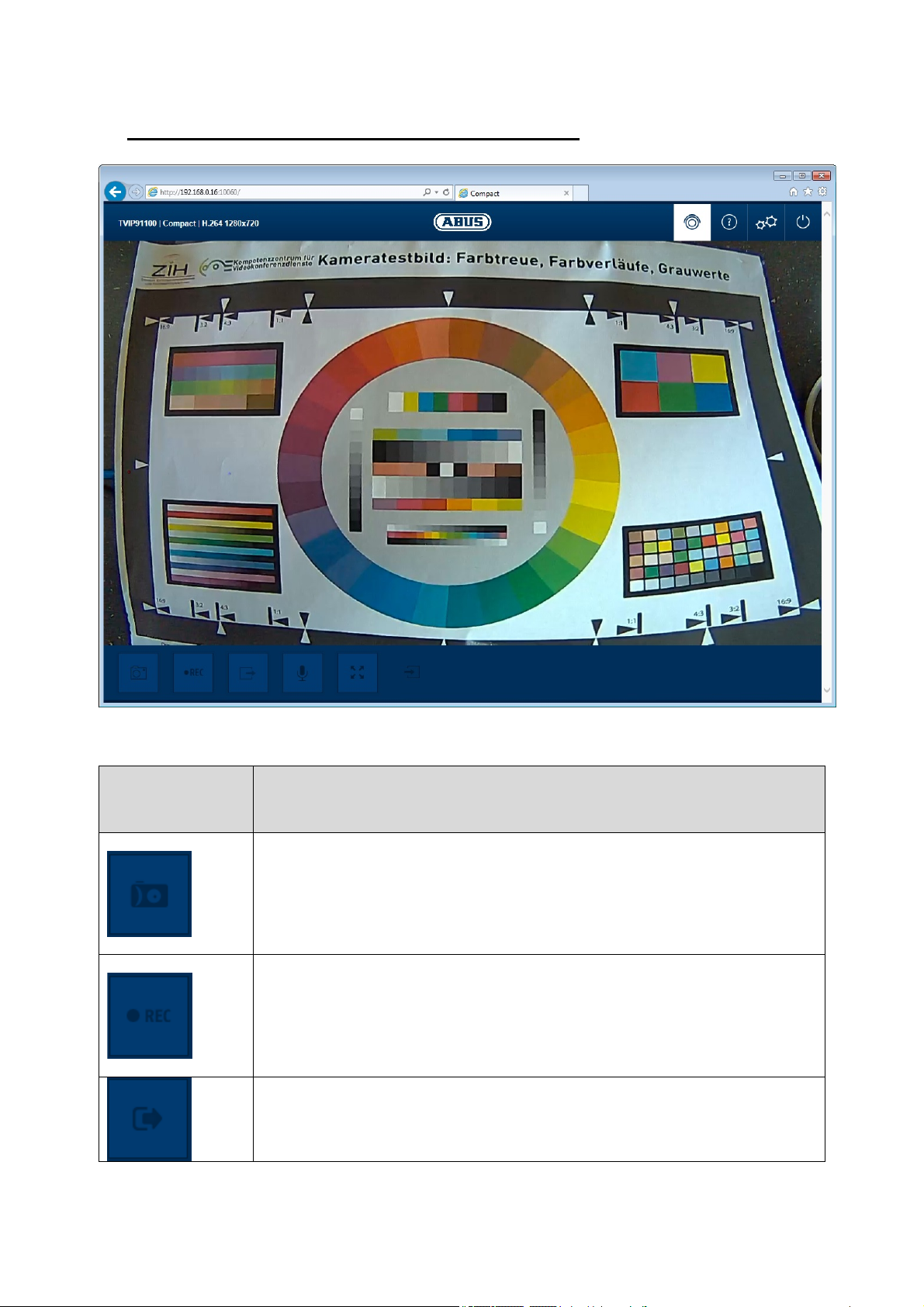

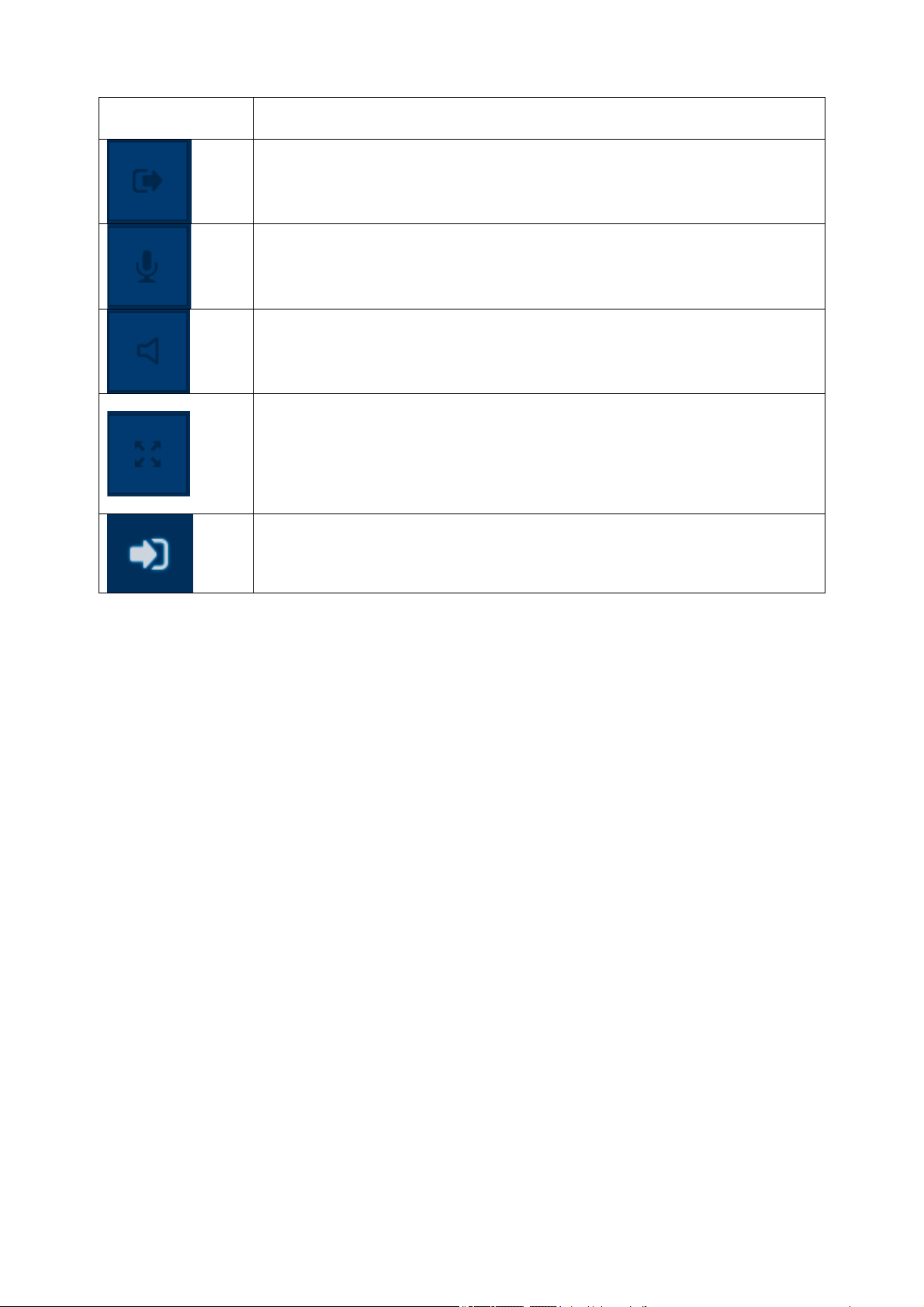

LIVE VIEW ........................................................................................................................... 88
10.2

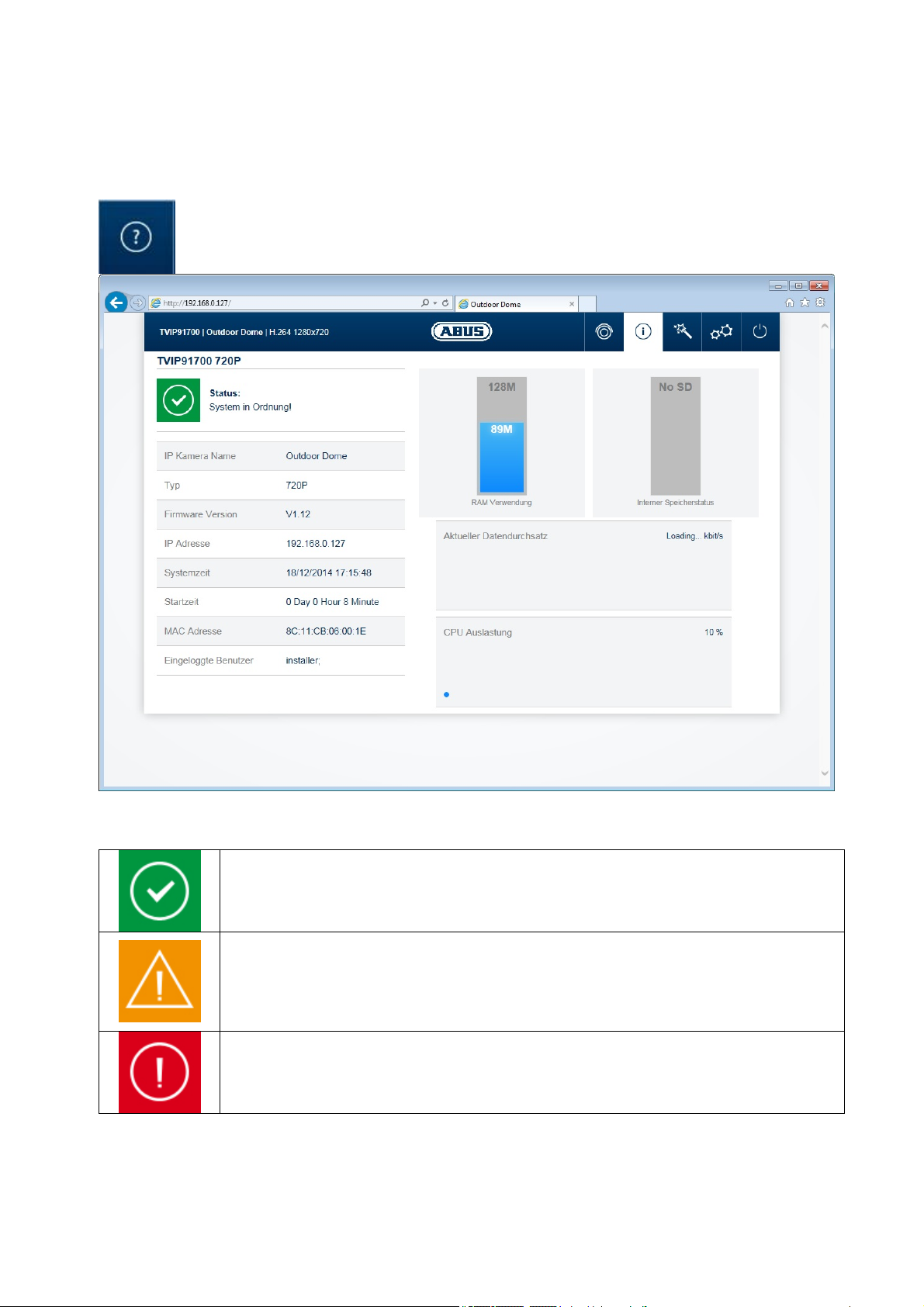

INFO PAGE .......................................................................................................................... 90
10.3
SETUP WIZARD ................................................................................................................... 91
10.4
ADVANCED CAMERA SETTINGS ............................................................................................ 91
10.4.1
10.4.1.1
10.4.1.2
10.4.1.3
10.4.1.4
10.4.1.5
10.4.1.6
10.4.1.7
10.4.2
VIDEO ............................................................................................................................. 91
GENERAL ..................................................................................................................... 91
DAY PROFILE ................................................................................................................ 92
NIGHT PROFILE ............................................................................................................. 92
DAY/NIGHT SWITCHING .................................................................................................. 92
PRIVACY MASKING ........................................................................................................ 93
VIDEO STREAM SETTINGS .............................................................................................. 94

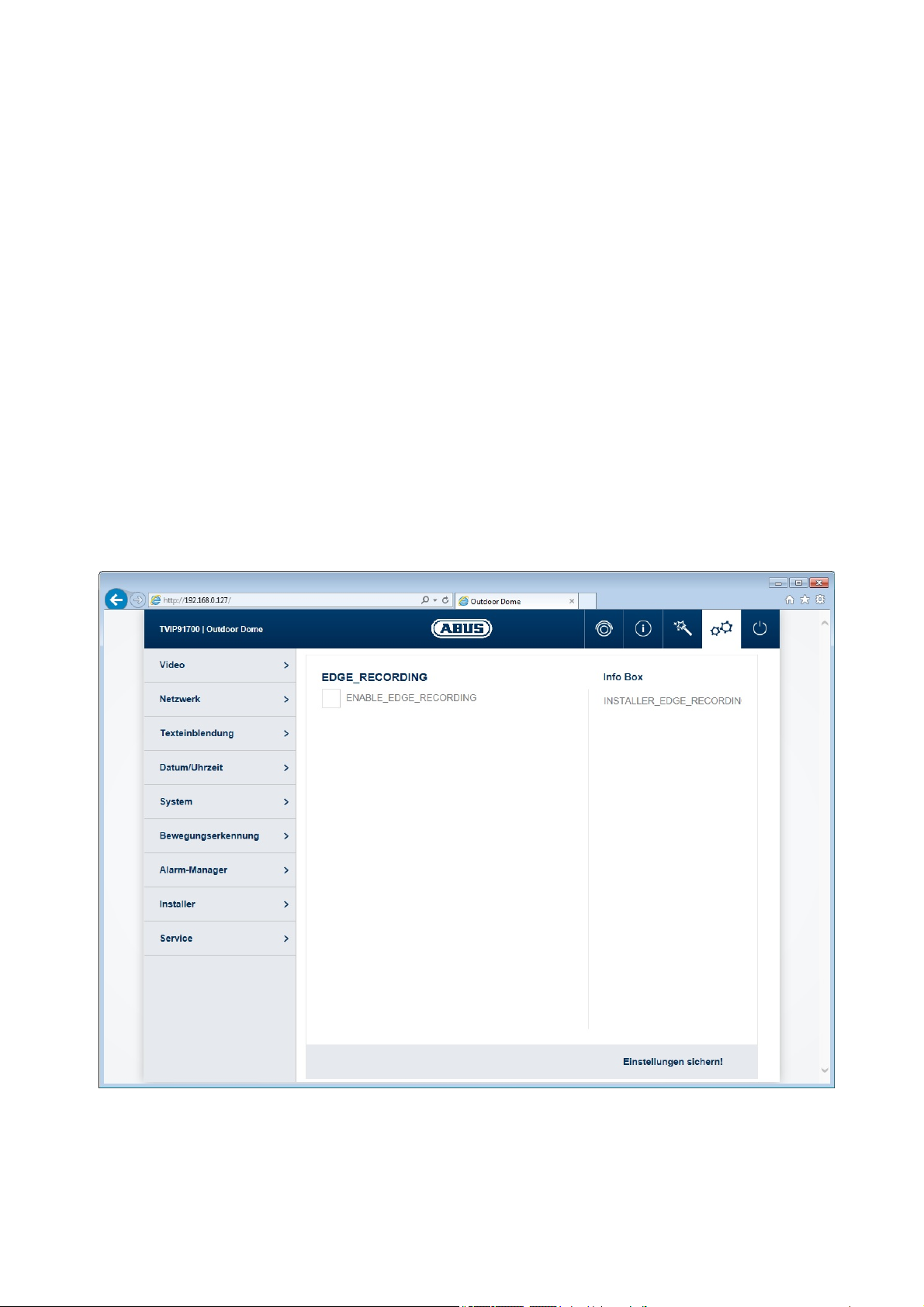

NETWORK LOSS RECORDING ......................................................................................... 95
NETWORK ....................................................................................................................... 97
10.4.2.1 IPV4 SETTINGS ............................................................................................................. 97
10.4.2.2
10.4.2.3
10.4.2.4
10.4.2.5
10.4.2.6
10.4.2.7
10.4.2.8
10.4.3
10.4.4
10.4.5
10.4.5.1
10.4.5.2
10.4.5.3
10.4.6
10.4.7
10.4.8
10.4.9
10.4.10
PORTS ......................................................................................................................... 97
DDNS .......................................................................................................................... 97
HTTPS ........................................................................................................................ 98
SMTP/EMAIL ................................................................................................................ 98
MULTICAST ................................................................................................................... 98
ONVIF ......................................................................................................................... 98
FTP SERVER ................................................................................................................ 98
OVERLAY TEXT ................................................................................................................ 99
DATE/TIME ....................................................................................................................... 99
SYSTEM ........................................................................................................................ 100
GENERAL ................................................................................................................... 100
FIRMWARE/RESET ...................................................................................................... 100
LOG FILE .................................................................................................................... 100
MOTION DETECTION ....................................................................................................... 100
ALARM MANAGER ........................................................................................................... 101
AUDIO ........................................................................................................................... 102
USER ............................................................................................................................ 102
SERVICE ...................................................................................................................... 102
11. MAINTENANCE AND CLEANING ..................................................................................... 103
11.1
FUNCTION TEST ................................................................................................................ 103
11.2
CLEANING ........................................................................................................................ 103
12. DISPOSAL ......................................................................................................................... 103
13. TECHNICAL DATA ............................................................................................................ 103
1. Intended use
This camera is used for indoor and outdoor video surveillance (depending on the model) in conjunction with a recording device or appropriate display unit (e.g. PC).
Use of this product for any other purpose than that described may lead to damage to the product and other hazards. All other uses are not as intended and will result in the invalidation of the product guarantee and warranty. No liability can be
accepted as a result. This also applies to any alterations or modifications made to the product. Read the user guide carefully and in full
before putting the product into operation. The user guide contains important information on installation and operation.
2. Explanation of symbols
The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
The triangular warning symbol indicates important notes in this user manual which must be observed.
This symbol indicates special tips and notes on the operation of the unit.
3. Scope of delivery
IPCA22500 IPCA32500 IPCA52000 IPCA6250X IPCA72500 IP camera √ √ √ √ √ Quick start guide √ √ √ √ √ General safety instructions Hexagonal socket key (without pin) Hexagonal socket key (with pin) Reset tool √ √ √ √ √ Software CD (ABUS, IP installer) Clamp for cable attachment Cable gland M25 - - - - √ Cable for analogue video output (BNC) Desiccant bag - - - - √ Rubber plate for installation
IPCA72505
√ √ √ √ √
√ - - √ -
- √ - - √
√ √ √ √ √
- √ - - √
- √ - - √
- - -
√ (pre-
installed)
√
(separate)
IP camera √ Quick start guide √ General safety instructions Hexagonal socket key (without pin) Hexagonal socket key (with pin) Reset tool √ Software CD (ABUS, IP installer) Clamp for cable attachment Cable gland M25 √ Cable for analogue video output (BNC) Desiccant bag √ Rubber plate for installation
(separate)
You can download a PDF version of the user guide in your language at
www.abus.com via the product search.
√
-
√
√
√
√
√
4. Features and functions
Full HD 1080p resolution: 1920 x 1080 @ 25 fps Sony Xarina DSP and Sony Exmore image sensor Tamron Motor Vario lens 3–9 mm (IPCA22500, IPCA32500, IPCA62500, IPCA72500) or
9–22 mm (IPCA62505) or 5–50 mm (IPCA72505)
16 GB internal memory for recording in the event of a power failure Day/night switching with electromechanical IR blocking filter (ICR) IR LEDs with variable intensity (IPCA22500, IPCA32500, IPCA62500, IPCA62505,
IPCA72500 only)
WDR function to compensate for high image contrasts Power over Ethernet (PoE) ONVIF-compatible
5. Device description
5.1 Overview – Model numbers
Model number IPCA22500 IPCA32500 IPCA52000 IPCA62505 IPCA72500 Resolution 1080p 1080p 1080p 1080p 1080p DWDR/WDR WDR,
120 dB 2D DNR/3D DNR √ √ √ √ √ Lens Motor zoom,
3–9 mm Operating voltage 12 V DC 12 V DC 12 V DC 12 V DC 12 V DC PoE IEEE
802.3af
WDR,
120 dB
Motor zoom,
3–9 mm
IEEE
802.3af
WDR,
120 dB
-
IEEE
802.3af
WDR,
120 dB
Motor zoom,
9–22 mm
IEEE
802.3af
Model number IPCA62500 IPCA72505 Resolution 1080p 1080p DWDR/WDR WDR,
120 dB 2D DNR/3D DNR √ √ Lens Motor zoom,
3–9 mm Operating voltage 12 V DC 12 V DC PoE IEEE
802.3af
WDR,
120 dB
Motor zoom,
5–50 mm
IEEE
802.3af
WDR,
120 dB
Motor zoom,
3–9 mm
IEEE
802.3af
5.2 Unpacking the device
Handle the device with extreme care when unpacking it.
If the original packaging has been damaged, inspect the device first. If the device shows signs of damage, return it in the original packaging and inform the delivery service.
5.3 Overview of connections, control elements, front/back
IPCA22500
IPCA32500
IPCA52000
IPCA6250X
IPCA72500 / IPCA72505
