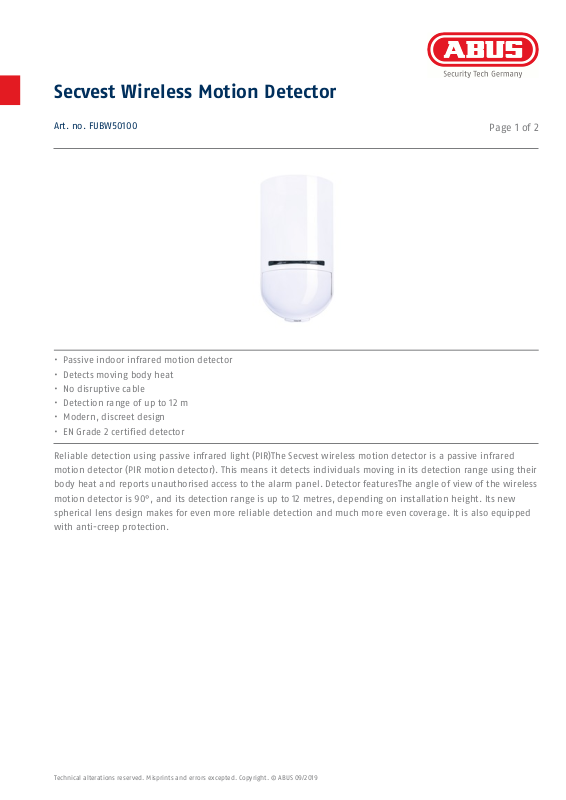

ABUS FUBW50100 Service Manual
Secvest Wireless Motion Detector
Art. no. FUBW50100
Passive indoor infrared motion detector
•
Detects moving body heat
•
No disruptive cable
•
Detection range of up to 12 m
•
Modern, discreet design
•
EN Grade 2 certified detector
•
Page 1 of 2
Reliable detection using passive infrared light (PIR)The Secvest wireless motion detector is a passive infrared
motion detector (PIR motion detector). This means it detects individuals moving in its detection range using their
body heat and reports unauthorised access to the alarm panel. Detector featuresThe angle of view of the wireless
motion detector is 90°, and its detection range is up to 12 metres, depending on installation height. Its new
spherical lens design makes for even more reliable detection and much more even coverage. It is also equipped
with anti-creep protection.
Technical alterations reserved. Misprints and errors excepted. Copyright. © ABUS 09/2019
Secvest Wireless Motion Detector
Art. no. FUBW50100
Technical Data:
EN Grade 2
Standard EN 50131-2-2:2008, EN
50131-5-3:2017, EN
50131-6:2008/A1:2014
Dimensions 55x115x55 (WxHxD) mm
Battery type 1,5V AA (LR6)
Width 55 mm
Type of detection Heat detection
Detection range of detector
12 m
(m)
Radio frequency 868,6625 MHz
Transmission power 10 mW
Housing material ABS
Battery quantity 2
Height 155 mm
Length 55 mm
Max. battery life 2 year(s)
Max. operating
55 °C
temperature
Max. humidity 75 %
Max. sending range
100 m
(outdoors)
Max. sending range
30 m
(building)
Page 2 of 2
Min. operating
temperature
Modulation FM
Net weight 0,148 kg
Tamper monitoring Yes
IP protection class 34
Sensor type PIR
Security level 2
Voltage monitoring Yes
DC voltage supply 3 V
Language of instructions DE, EN; FR; NL; DK; IT
Packaging language DE, EN; FR; NL; DK; IT
Pet-proof No
Environmental class II
Certifications EN 50131 Grade 2
-10 °C
Powered by TCPDF (www.tcpdf.org)
Technical alterations reserved. Misprints and errors excepted. Copyright. © ABUS 09/2019
