ABUS FUAA10021 Operating instructions

Secvest IP

wireless alarm centre

Installation and operating instructions (UK)

02032012

FUAA10011

1 Contents

1. Contents

 Contents 1

1.

2. Preface 2

3. Conformity 2

4. Meaning of the symbols 3

5. Important safety information 3

6. Scope of delivery 7

7. Compatibility with ABUS products 8

8. Installation 9

9. Installation of the backup battery (backup power supply) 10

10. Display and setting elements 11

11. Labelling the Secvest IP 16

12. Putting into operation 16

13. Enclosed software 17

14. Configuration of the web server 18

15. Teaching the wireless components 66

16. Alarm types and notification 74

17. Resetting an alarm 75

18. Maximum system extension 75

19. Firmware display of wireless PCB 77

20. Information on additional ABUS products 77

21. Notes on maintenance 77

22. Technical data 78

23. Customer service and support 79

24. Explanation of terms 80

1

2 Preface

2. Preface

Dear customer,

Many thanks for your purchase of this Secvest IP wireless alarm centre. This product
is built according to state-of-the-art technology. It complies with current domestic and
European regulations. Conformity has been proven, and all related certifications are
available from the manufacturer on request (www.abus-sc.com). To ensure safe
operation, it is your obligation to observe these instructions! If you have any
questions, please contact your local specialist dealer. No part of the product may be
changed or modified in any way.

These instructions contain important installation and operation information. Store
these instructions in a safe place for future reference. These instructions are part of
the product. Bear this in mind if you pass the product on to others.

Disclaimer:
These operating instructions have been produced with the greatest care. Should you
discover any missing information or inaccuracies, please contact us under the
address shown.
ABUS Security-Center GmbH does not accept any liability for technical and
typographical errors, and reserves the right to make changes to the product and
operating instructions at any time and without prior warning.
We reserve the right to make changes to these instructions without prior notice. No
forms of guarantee are accepted for the contents of this document.

© ABUS Security-Center GmbH & Co. KG, 03 / 2012

3. Conformity

The declaration of conformity can be ordered from:

ABUS Security-Center GmbH & Co. KG
Linker Kreuthweg 5
86444 Affing
GERMANY
www.abus-sc.com
[e-mail]

2

4 Meaning of the symbols

4. Meaning of the symbols

Disposal as per directive WEEE 2002/96 EC

At the end of its useful life, dispose of the product according to the
applicable legal requirements. Within the EU, the product and its
accessories must be collected and disposed of separately.
Devices displaying this symbol may not be disposed of as
domestic waste. Please contact your dealer or dispose of the
products at the local collection point for electronic waste.

This symbol indicates important notes in these operating
instructions, which must be observed.

This symbol indicates special tips and notes on the operation of
the unit.

5. Important safety information

5.1 Intended use

Only use the device for the purpose which it was designed and built for. Any other
use is considered inappropriate.
This device may only be used for the following purpose(s):

• This three-zone IP wireless alarm centre is used in combination with connected
wireless detectors, signallers, actuators and operating units for object
surveillance.

5.2 General

Before using the device for the first time, read the following instructions carefully and
pay attention to all warnings, even if you are already familiar with electronic devices.

3

5 Important safety information

f

Warning

All guarantee claims become invalid for damage caused by non­compliance with these operating instructions.

We cannot be held liable for resulting damages.

Warning

We cannot be held liable in the event of material or personal damage
caused by improper operation or non-compliance with the safety
information.

All guarantee claims are invalid in such cases.

Keep this manual in a safe place for future reference.
If you pass on or sell the device, you must also include this user manual. This device
has been manufactured in accordance with international safety standards. Inspect
the device before putting it into operation. If the device shows signs of damage, do
not put it into operation.

5.3 Power supply

• Only operate this device through a power source which supplies the mains power
specified on the type plate of the power supply unit.

• If you are unsure of the power supply at the installation location, contact your
power supply company.

• Only operate this device with the device-specific power supply unit.

• This device uses Safety Extra Low Voltage (SELV). The circuits of the switch

outputs and the 13.8 V power supply also fall into this voltage range. SELV is a
low electrical current that offers special protection against electric shocks based
on its low level and insulation compared to higher voltage circuits.

Warning

The installation of additional equipment or modification of the device
invalidates your guarantee if not carried out by trained personnel.

Your guarantee is invalidated in the event of improper installation o
additional equipment or modifications.

5.4 Overloading/overvoltage

• Avoid overloading of mains sockets, extension cables and adapters as this can
result in fires or electric shocks.

• Use overvoltage protection to prevent damage caused by overvoltage (e.g.
electrical storms).

4

5 Important safety information

5.5 Cables

• Always hold cables by the connector, and do not pull the cable itself.

• Never touch the mains cable with wet hands, as this can lead to a short circuit or

electric shock.

• Never position the device, furniture or other heavy items on the cable. Ensure
that the cable does not become kinked, especially on the connector and sockets.

• Never knot the cable, and do not tie it to other cables.

• All cables should be laid so that they cannot be stepped on or cause an

obstruction.

• A damaged mains cable or power supply unit can cause a fire or electric shock.
Check the mains cable from time to time.

• Do not modify or manipulate the mains cable or plug.

• Do not use plug adapters or extension cables that do not conform to the

applicable safety standards, and do not make alterations to power supply cables
or mains cables.

5.6 Installation location/operating environment

• Install the device on the wall and do not place any objects in front of it.

• The device is not designed for operation in rooms subject to high temperatures

or moisture (e.g. bathrooms), or in excessively dusty rooms.

• Operating temperature and ambient humidity:

-10°C to +55°C, maximum 75% relative humidity. The device may only be
operated in moderate climate conditions.

Ensure the following:

• Sufficient ventilation must always be guaranteed – leave a gap of at least 10 cm
from all sides.

• The device must not be exposed to direct heat sources (e.g. heaters).

• The device must not be exposed to direct sunlight or strong artificial light.

• The device must not be placed in close proximity to magnetic fields

(e.g. loudspeakers).

• Naked flames (e.g. candles) must not be placed on or near the device.

• Contact with spraying or dripping water and aggressive liquids must be avoided.

• The device must not be operated in close proximity to water, and must not be

submerged under any circumstances (do not place objects containing water on
or near the device, such as vases or drinks).

• Foreign objects must not penetrate the device.

5

5 Important safety information

• The device must not be exposed to strong variations in temperature, as this can
lead to condensation and electrical short circuits.

• The device must not be exposed to excessive jolts or vibrations.

5.7 Care and maintenance

Maintenance is necessary if the device has been damaged. This includes damage to
the plug, mains cable and housing, penetration of the interior by liquids or foreign
objects, exposure to rain or moisture or when the device does not work properly or
has fallen.

• Disconnect the device from the mains power supply before maintenance (e.g.
cleaning).

• If smoke develops or unusual noises or odours are detected, then pull the mains
plug from the socket immediately and remove the backup battery. In such cases,
the device should not be used until it has been inspected by a qualified
technician.

• Clean the device housing with a damp cloth.

• Do not use solvents, white spirit or thinners as these can damage the surface of

the device.

• Do not use any of the following substances:

Salt water, insecticides, solvents containing chlorine or acids (ammonium
chloride) or scouring powder.

• Gently rub the surface with a cotton cloth until it is completely dry.

5.8 Accessories

• Only connect devices that are suitable for the intended purpose. Otherwise,
hazardous situations or damage to the device can occur.

5.9 Putting into operation

• Observe all safety and operating instructions before putting the device into
operation for the first time.

• Only open the housing during installation and when training the wireless
components.

Warning

If in doubt, have a specialist technician carry out assembly, installation
and connection of the device.

Improper or unprofessional work on the mains power supply puts both
you and other persons at risk.

6

6 Scope of delivery

5.10 Children and the device

• Do not allow children access to electrical devices. Never allow children to use
electrical devices without supervision. Children may not be able to accurately
detect possible risks. Small parts can be life-threatening if swallowed.

• Keep batteries away from small children. Call for medical assistance immediately
if a battery is swallowed.

• Keep packaging materials away from children (danger of suffocation).

• This device should not be used by children.

6. Scope of delivery

Individual alarm centre:

1 x Secvest IP wireless alarm centre

1 x power supply unit

1 x backup battery

1 x 1 metre network cable

1 x Quick guide

1 x CD-ROM (installation and operating instructions, Secvest IP Finder, labelling

templates)

1 x installation material (4 x wall plugs, 4 x screws)

1 x battery cable

2 x cable clips

7

7 Compatibility with ABUS products

7. Compatibility with ABUS products

Compatible

CASA10010 IP alarm module
FU59xx Secvest Key 2WAY wireless cylinder
FU8100 Secvest 2WAY wireless remote control

(integrated panic function not usable)
FU8130 Secvest 2WAY wireless additional lock (7010E)
FU8140 Secvest 2WAY wireless additional lock (7025E)
FU8150 Secvest wireless remote control

(integrated panic function not usable)
FU8200 Secvest 2WAY wireless info module

(No display of: status ready / internally active / entry-

and exit delay time)
FU8210 / FU8211 Secvest 2WAY wireless universal module

(only repeater function)
FU8220 / FU8222 Secvest 2WAY wireless outdoor siren

(Beep acknowledgement as of FU8222)
FU8230 Secvest 2WAY wireless indoor siren
FU8240 Secvest wireless socket
FU8300 Secvest 2WAY wireless panic alarm
FU8305 Secvest 2WAY wireless panic transmitter
FU8310 Secvest 2WAY wireless fire alarm
FU8320W/B Secvest 2WAY wireless magnetic contact
FU8321W/B Secvest 2WAY wireless magnetic contact
FU8325W/B/S Secvest 2WAY mini wireless magnetic contact
FU8330 Secvest 2WAY wireless flood detector
FU8340 / FU8341 Secvest 2WAY wireless smoke detector
FU8350 Secvest 2WAY wireless motion detector
FU8360 Secvest 2WAY animal-immune wireless motion

detector
FU8370 Secvest 2WAY wireless glass breakage detector
FU8380 Secvest 2WAY wireless vibration detector
FU8390 Secvest 2WAY wireless emergency transmitter
FU841xW/B FTS 96 E wireless window lock
FU842x Secvest 2WAY wireless window bar lock (FOS550E)
FU8430W/B/S Secvest 2WAY wireless window handle (FG350E)
FU8435W/B/S Secvest 2WAY wireless window handle plus
TVIP41550 PIR network camera

Not compatible
FU8110 Secvest 2WAY wireless control unit
FU8165 Secvest 2WAY wireless key switch

8

8 Installation

8. Installation

IP

C

D

E

A

C

B

Key:

A) Wall tamper switch
B) Housing screw
C) Fixing holes on base plate
D) Cable opening
E) Tension relief (bar for fastening cable to cable clip)

Installation procedure:

1. Loosen the housing screw on the bottom narrow side and open the housing.

2. Using the back of the housing as a template, mark the drill holes (C).
Drill the holes for the fixing screws.

3. Guide the connection cable through the appropriate opening (D).

4. Connect the power supply to the terminal block with the correct polarity
(grey dashed wire is positive).

5. Connect the LAN cable (see following diagram).

Power supply for
optional BT2020
backup battery

13.8 V DC
(power supply unit)

9

9 Installation of the backup battery (backup power supply)

6. Fasten the 13.8 V cable and LAN cable to the appropriate tension relief using the
supplied cable clips.

7. Fix the housing to the wall.

8. Make sure the spring of the wall tamper switch (A) is positioned correctly.

9. Make the appropriate settings on the web server.

10. Train the wireless components.

11. After training, replace the housing cover and tighten the cover screw.

9. Installation of the backup battery (backup power supply)

1. Disconnect the alarm centre from the power
supply.

2. Connect the supplied cable for the battery to
the IP module.
Red is the positive terminal and black is the
negative terminal. See the installation section
for more details.

3. Connect the battery correctly.

4. Insert the battery into the appropriate battery
clip and close the housing. See the installation
section for more details.

Trained wireless components and
programming are not lost in the event of a
power failure.

BT2020

backup battery

10

10 Display and setting elements

10. Display and setting elements

10.1 Display LEDs

The display consists of 10 LEDs

Green LED (“Power” LED) for monitoring the power supply

• Permanently lit: Power supply is OK

• Flashing with 1 Hz: Mains power supply failure; only indicated if a

backup battery is in use.

Red LED (“Trouble” LED) for displaying faults

• Off: No faults

• Flashing with 1 Hz: Supervision fault (detector or device is

indicated by the channel LED flashing with 1 Hz. If only this LED
flashes, this indicates that the alarm centre itself has been
tampered with).

• Permanently lit: Indicates jamming.

Blue LEDs (“Channel” LEDs) for detector status display

• Off: Detector OK (closed)

• Permanently lit: Detector is open or has triggered (open);

operating units are lit briefly indicating that a wireless signal has
been received.

• Flashing with 5 Hz: Empty battery on a wireless component

• Flashing with 1 Hz: Wireless component has been tampered

Bottom blue LED lights up: Indicates that this refers to the second

caption level (i.e. channels 8–14).

10.2 LED table

Lights up/

Zone 1

Lights up/

Operating

units

(Secvest Key

remote control)

Layer 1 Layer 2

Lights up/

flashes

Lights up/

flashes

Lights up/

flashes

Lights up/

flashes

Lights up/

flashes

Lights up/

flashes

Lights up/

flashes

Channel 14

Channel 13

Channel 12

Channel 11

Channel 10

flashes

Lights up/

flashes

Lights up/

flashes

Lights up/

flashes

flashes

Lights up/

flashes

Lights up/

flashes

Channel 7

Channel 6

Channel 5

Channel 4

Channel 3

Channel 2

Channel 1

Does not light up Lights up

11

Channel 9

Channel 8

Zone 3

Zone 2

10 Display and setting elements

10.3 Acoustic signal

The alarm centre can also signal the various states and error messages acoustically:

1 x beep Centre was deactivated
2 x beep Centre was activated
8 x beep System error (tampering, jamming,

supervision), zone is open while
activating the system

10.4 Setting elements on the wireless PCB

D

E

F

A

B

C

10.4.1 Programming keys (A)

On the right, there are three keys (SELECT, SET, ESC/DEL) for
training and programming the wireless components.

10.4.2 Tamper switch

A cover tamper switch (B) and a wall tamper switch protect the alarm centre from
unauthorised opening and removal from the wall.

12

10 Display and setting elements

10.4.3 CON1

CON1 (C) jumper connection “FIT DISABLE TAMP”.
If you set the jumper on both contacts, you deactivate the wall removal
contact. (This may be helpful during programming.)

10.4.4 CON2

CON2 (D) jumper must be in the “-” position (factory setting).

10.4.5 DIP switch SW6

DIP switch SW6 (E) is factory-set as follows.
The individual switches of this 8-position DIP switch enable you to choose from the
following options. Switch positions 4/5/7/8 must remain in the factory settings to
guarantee correct functionality.

Switch Options Factory setting “OFF”

position

“ON”

position
1 Supervision ON Off On
2 Supervision time ON Long

3 hours

Short

20 min
3 Jamming detection ON Off On
4 OFF
5 ON
6 LED mode OFF Display on Display off
7 OFF
8 Acoustic signal ON Off On

10.4.6 CON3:

CON3 (F): This jumper is used to switch on the installer mode of the
FU8220 external siren.
(The installer mode is deactivated in the factory default setting.)

This mode is useful for changing the battery. You can open the housing

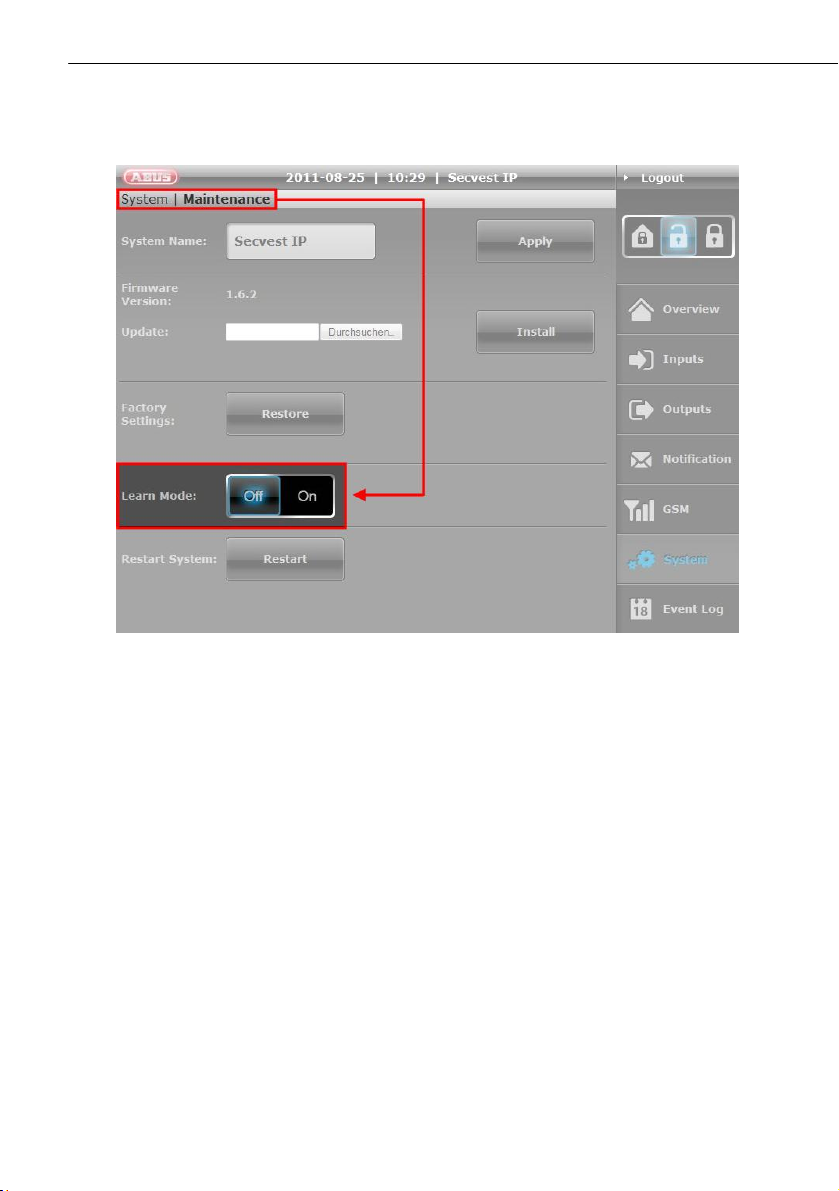

without the siren emitting any sound. The Secvest IP must also be in the
“training mode” to suppress e-mail notification. („System Æ Maintenance“)

13

10 Display and setting elements

10.5 Setting elements and connections on the IP board

1. System reset button

2. Restart button

3. NO

4. NC

5. COM

6. Burglary

7. Fire

8. Panic

9. DSL monitoring

10. 0 V

11. + terminal for power supply unit

12. – terminal for power supply unit

13. + terminal for battery connection

14. – terminal for battery connection

15. LAN network connection

Restart button (2): this starts the
IP module again and the network
connection. Hold down the button

for about 10 seconds.
Via web server: the system can also be restarted at “System
Restart system”.

Relay outputs

Transistor outputs

Æ

Maintenance Æ

10.6 Restoring the factory settings

To completely restore the alarm centre to the factory settings, you need to reset both
the IP side and the wireless side.

Only reset one of the two sides and keep the settings of the other side. For
example this means, if you only reset the IP side, then you don’t need to
train the wireless components again.

IP board:

• System reset button (1): this lets you restore the factory settings of the
hardware
on the IP module. This means all the settings you have made with web
server will be lost. To do this, hold down the button for about 10 seconds
(then the LED goes out and the factory settings are restored).

• Via web server: on the web server, at System Æ Maintenance Æ Restore
factory settings, you can also reset the settings made on the web server.

Please note that the network settings are also deleted, the alarm centre is
then no longer available through the usual IP address.

14

10 Display and setting elements

Wireless board:

1. Press SELECT on the wireless PCB until the eighth LED from the bottom
lights up.

2. Push the SET button once to get to menu 8. All blue LEDs start flashing.
This signals that the wireless module is ready to restore itself to the factory
settings.

3. Press and hold down the ESC/DEL button for about 4 seconds until the
flashing stops and the alarm centre beeps twice.

The factory settings are now restored. You are now in the main menu again.

The web server settings are retained. Only all the trained wireless
components and their settings are removed.

To exit programming mode, press ESC/DEL until the alarm centre starts to beep
(about once per second). Close the housing or press and hold down the cover
tamper contact (SW4, underneath ESC/DEL) for about 4 seconds until it beeps twice.
The data is saved in an EEPROM.

10.7 Relay and transistor outputs

The relay output allows wired components to be switched.
Maximum switching power: 1,25 A ; 60 VDC

The transistor outputs are used for connecting
an optional GSM dialler.
Swiching power: 200mA.

Select a positive trigger polarity for controlling a
GSM/PSTN dialler. Connect the 0V with the 0V
of your dialler to establish equipotential
bonding. In an activated state, the output is at
12V. For the numbering, refer to the chapter
on “Setting elements and connections on the
IP board”.

Power supply for the GSM/PSTN dialler is not possible using the Secvest IP
power supply unit included.

15

11 Labelling the Secvest IP

11. Labelling the Secvest IP

We recommend using the editable PDF on the supplied CD for labelling your Secvest
IP, or downloading the PDF for the corresponding product from our website. Labelling
the device is very simple. Enter your individual component settings in the PDF and
print it out. Insert the cut-out label into the corresponding gap on the inner side of the
cover.

We recommend using common, easy-to-understand abbreviations for the
detector type (e.g. MC = magnetic contact, MD = motion detector, SD =
smoke detector, VD = vibration detector, GD = glass breakage detector, FD =
flood detector).
Next, describe the location where the detector is found. This helps to identify
the detector quickly and easily in the event of malfunctions (e.g. empty
battery). Remember that the name must correspond to the actual
programming.

4 Detector / Zone 1

3 Detector / Zone 1

2 Detector / Zone 1

1 Detector / Zone 1

Operating unit 3

Operating unit 2

Operating unit 1

11 Detector / Zone 3

10 Detector / Zone 3

9 Detector / Zone 3

8 Detector / Zone 3

7 Detector / Zone 2

6 Detector / Zone 2

5 Detector / Zone 2

12. Putting into operation

Connect the alarm centre directly to your computer using a LAN (cross-over) cable,
or connect it to your network using a LAN cable. The factory-set IP address on the
alarm centre is 192.168.0.50.

16

13 Enclosed software

13. Enclosed software

The Secvest IP Finder is used to identify the Secvest IP in the network. It allows the
corresponding IP address of the components located in the network to be
determined. Install and start the IP Finder. You will find it on the accompanying
software CD.
Click Search – the program will search the network for any connected network
devices. Once the search is finished, a list of devices found on the network is shown.
You will now see the network address of the Secvest IP. Enter the IP address in your
web browser to access the alarm centre.

17

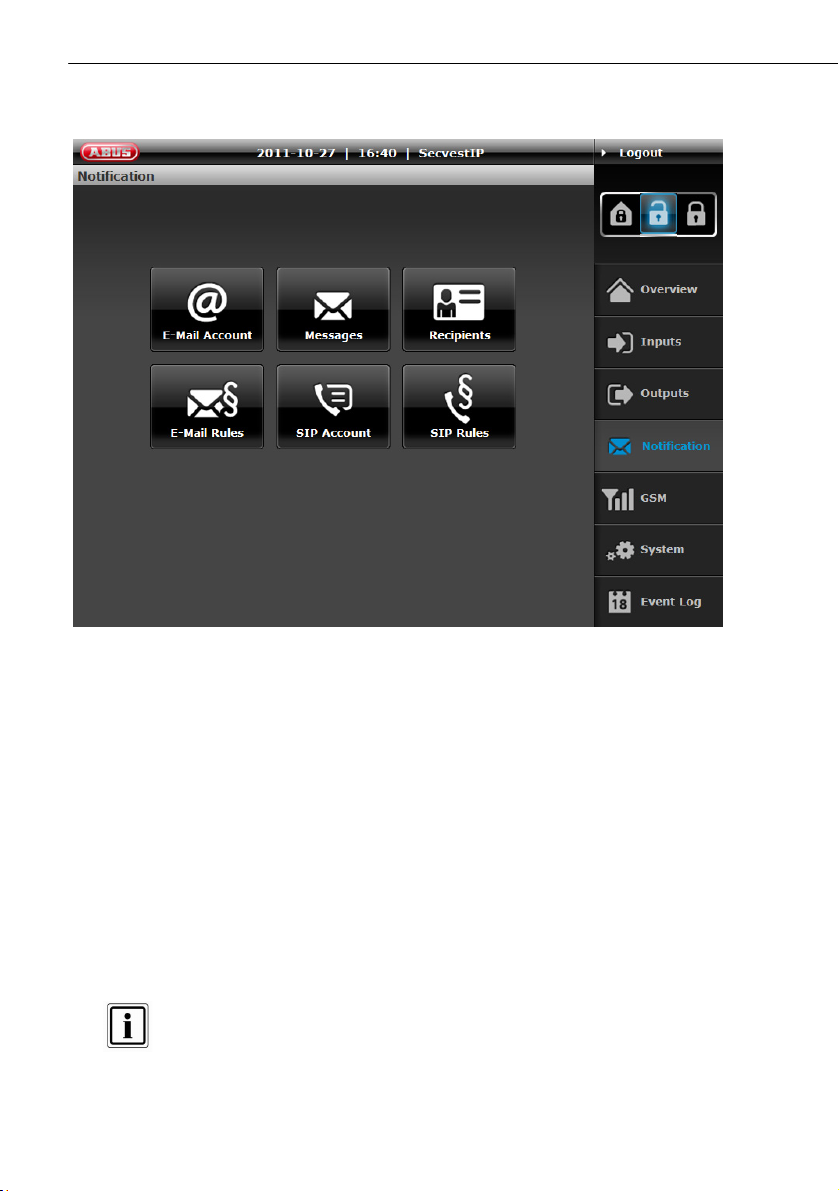

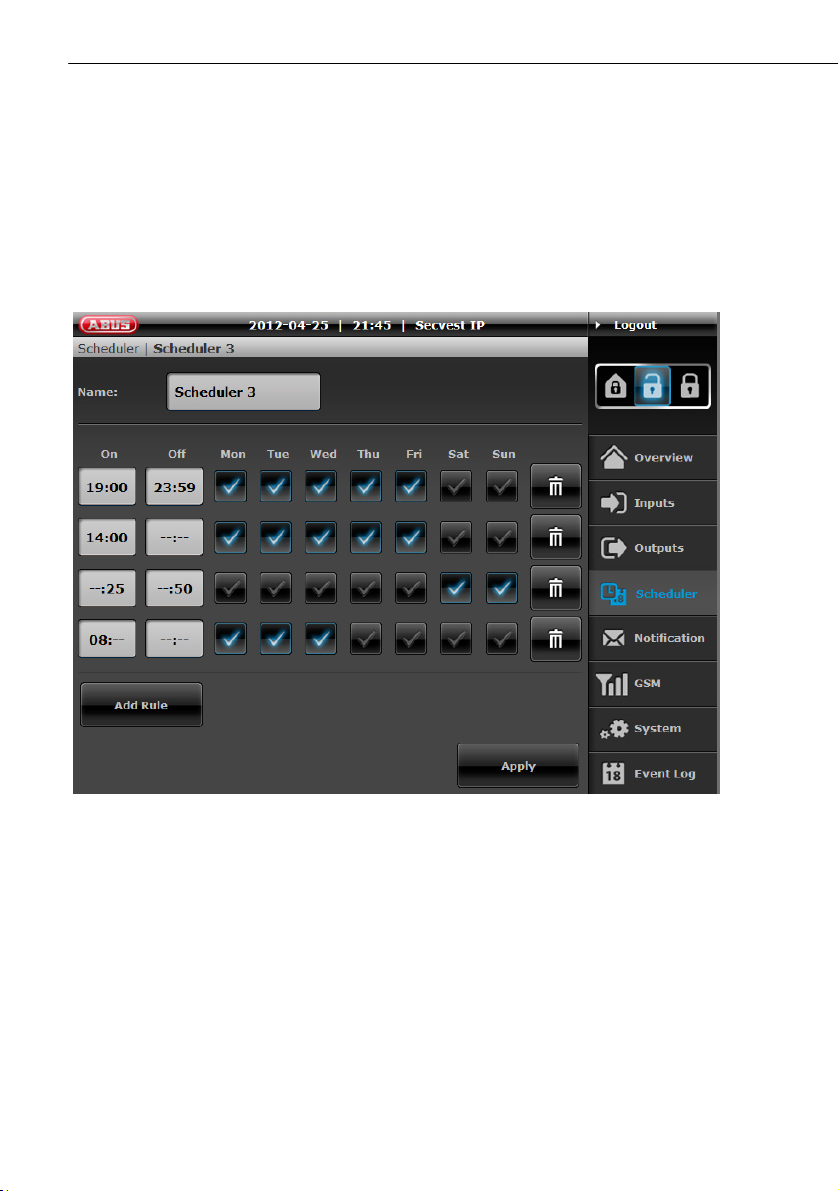

14 Configuration of the web server

14. Configuration of the web server

When accessing the Secvest IP over your web browser, you can configure the
Secvest IP using the integrated web server in the alarm centre.

14.1 Login

In order to change the settings on the Secvest IP using the web server, you must first
log in to the web server as follows:

1. Select your language

2. Enter your user name (default: “admin”)

3. Enter the password (default: “12345678”)

4. Click on “Login”

If the user name and password are entered correctly, the “Overview” screen is
accessed.

18

14 Configuration of the web server

14.2 Overview

The “Overview” screen shows the current status of the Secvest-IP alarm centre, and
is divided into three areas:

1. Inputs:

In the Inputs area, you will see an overview of the state of the three wireless
zones (1) and three virtual IP zones (2).

The colour of the respective LED signalises the current status of the zone:

• Green indicates that all detectors in the corresponding zone have not

been triggered or are closed.

• Red indicates that one or more detectors in the corresponding zone

have been triggered or are open.

• Grey indicates a deactivated or hidden zone, or a zone where no

detectors are connected.

• Yellow indicates a fault in the connection to the virtual IP zone (vZone)

– e.g. the connection is lost to a connected PIR IP camera or an IP
alarm module.

19

14 Configuration of the web server

Creating/displaying/downloading live snapshots from PIR network
cameras

Under “Inputs”, live snapshots from trained PIR cameras can also be viewed
and downloaded if required. This feature allows the ACTUAL status of a zone
monitored by a PIR network camera to be checked.

By clicking on the name of the zone for the required PIR network camera, 9
live snapshots are created at a delay of approx. one second and displayed in
an overview menu.

By clicking on one of the pictures in the overview menu, the individual
snapshots open and the specific picture is displayed in an enlarged format.
You can scroll through the 9 snapshots using the arrow symbol (left and right
of the image).

20

14 Configuration of the web server

The 9 snapshots can be downloaded by clicking on “Download”, and saved.

The snapshots can also be downloaded as TAR archive. Ensure that
a TAR compatible data compression program is used to unpack the
archive (such as WinRAR or 7 Zip).

Bypass a channel via the Overview Menu

In the Input area you also can easily bypass a channel. This function allows
you to take out one channel with its learned detectors, so that these will not
trigger any alarm. If you set bypass for a channel, this will be valid for the next
activation of the alarm panel.

To bypass a channel, click on the Status-LED of the channel you want to
bypass. (like shown in the screen shot). Tick the bypass button to “On” and
click “Apply”. The Status-LED will turn gray. If you would like to undo the
bypass, so click again on the Status LED and choose “Off” and also click
“Apply” to confirm. If you set a channel on Bypass “On”, this channel will not
detect any alarm for the next activation of the alarm panel. After the next
deactivation, the channel will be automatically set on bypass “Off”.

21

14 Configuration of the web server

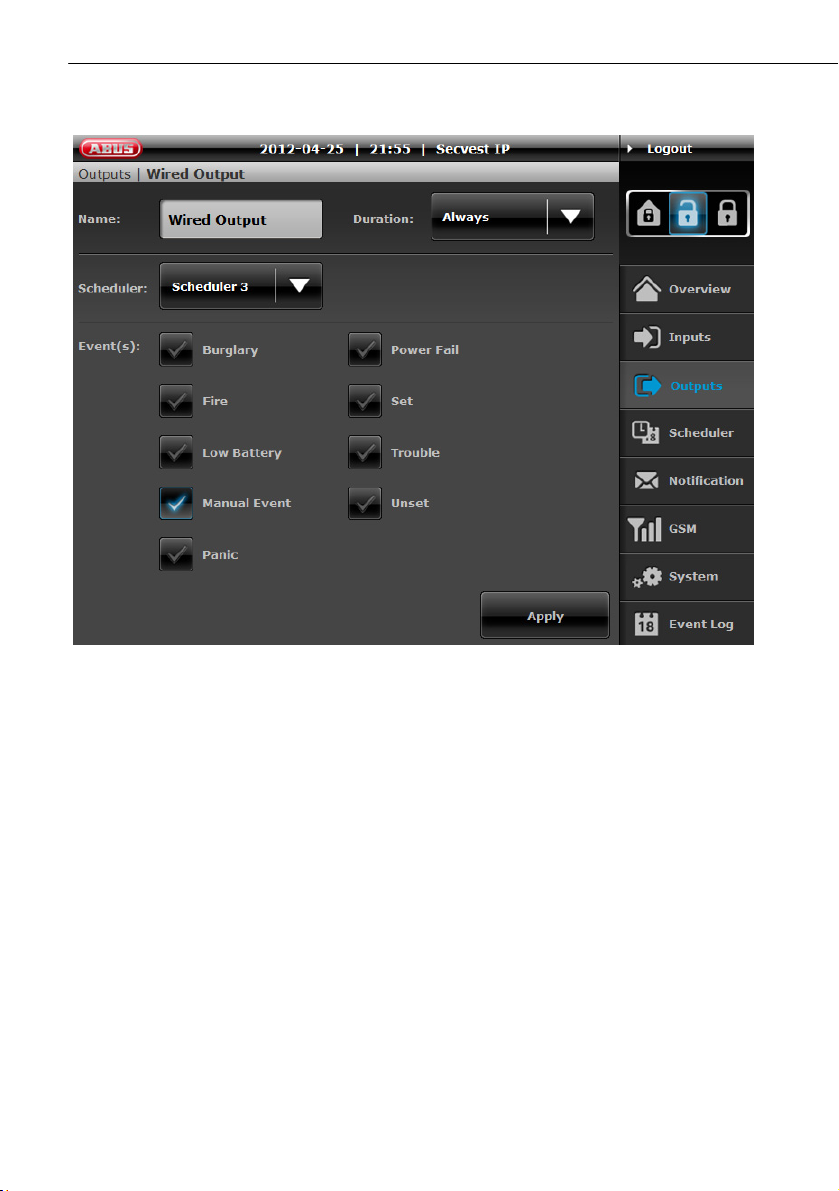

2. Outputs:

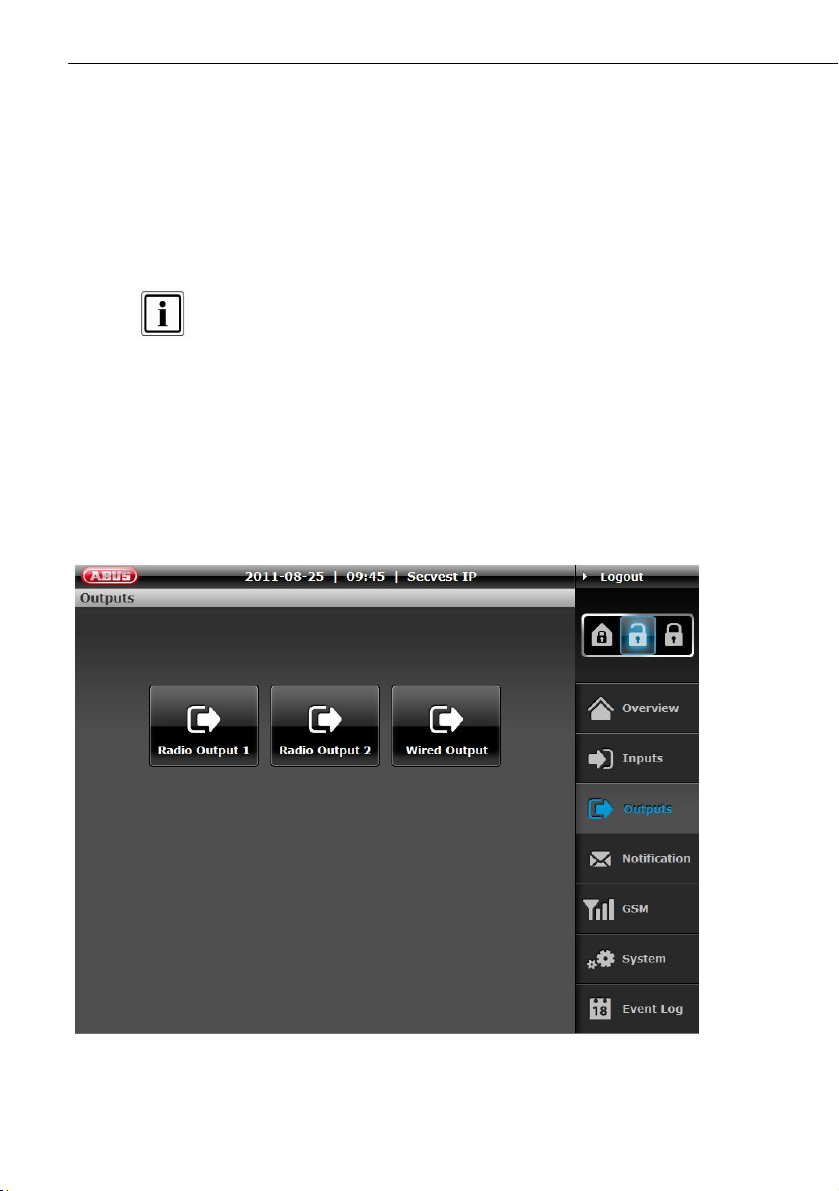

The Outputs area lets you switch the two wireless switching outputs (1 and 2)
and the relay output (3). The current status can also be determined at this
time. If the LED on the button lights up and the lettering has a blue
background, this indicates that the output is currently switched on (see (1)).

The outputs can only be switched manually if the “Manual” event
has already been selected at “Outputs”. Make sure that all the other
events are deactivated when selecting “Manual”.

22

14 Configuration of the web server

3. Alarms:

The Alarms area is used to indicate whether any alarms are present (and if
so, which ones).

Possible Alarms:

¾ Burglary
¾ Fire
¾ Panic
¾ Technical
¾ Fault

− Jamming

− Supervision

− Tampering

− Battery fault

System faults can only be cleared
by rectifying the cause.

− Power failure

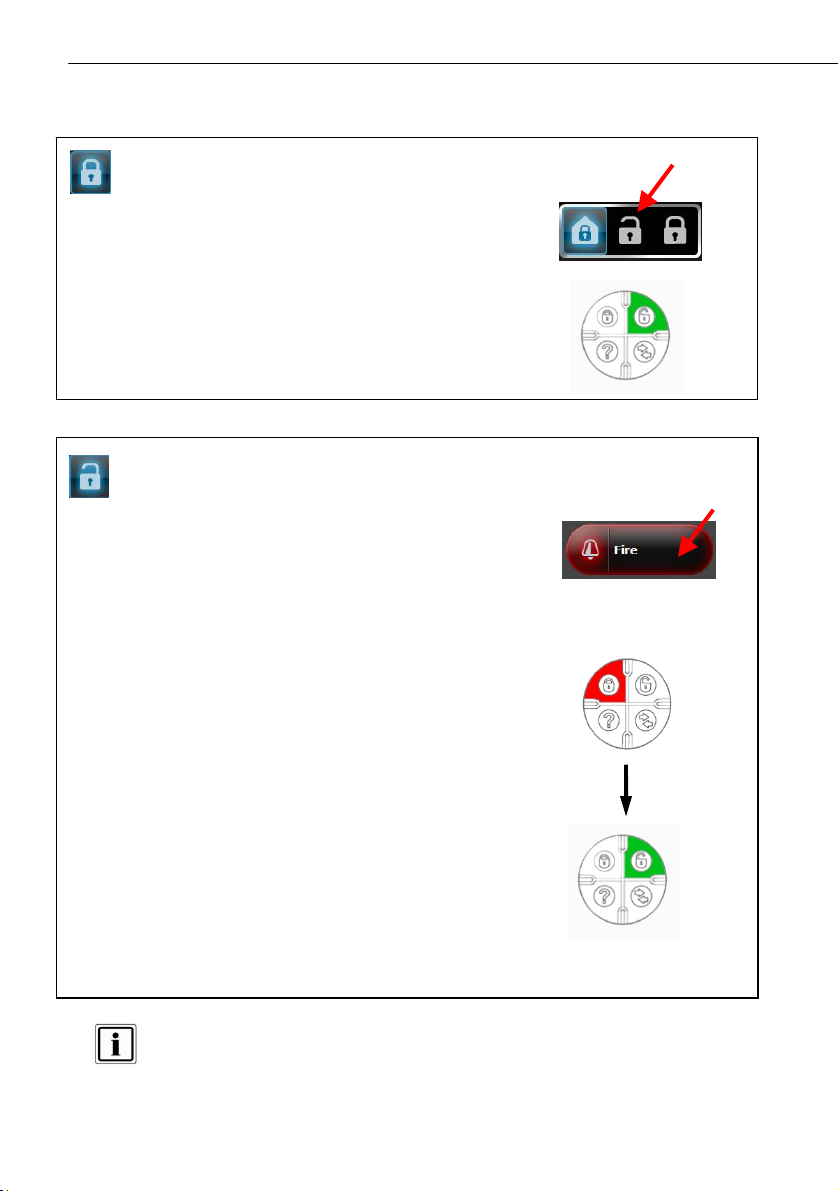

If a panic, fire or technical alarm occurs in the deactivated
state, it can be reset by clicking the alarm message in the
overview.

23

14 Configuration of the web server

4. Web server acoustic signalling

If the alarm centre is activated/deactivated, or if an alarm is triggered, the web
server sends acoustic feedback to your web browser. (If an alarm is triggered,
an additional siren alarm signal is emitted until the alarm is reset/the centre is
deactivated)

The acoustic signaling in the web browser is only possible on
HTML5-compatible browsers: Internet Explorer 9 (or above), Firefox
4 (or above), Safari 5 (or above). Audio playback on iPhone, iPod or
iPad Safari browser is not possible for reasons of compatibility.

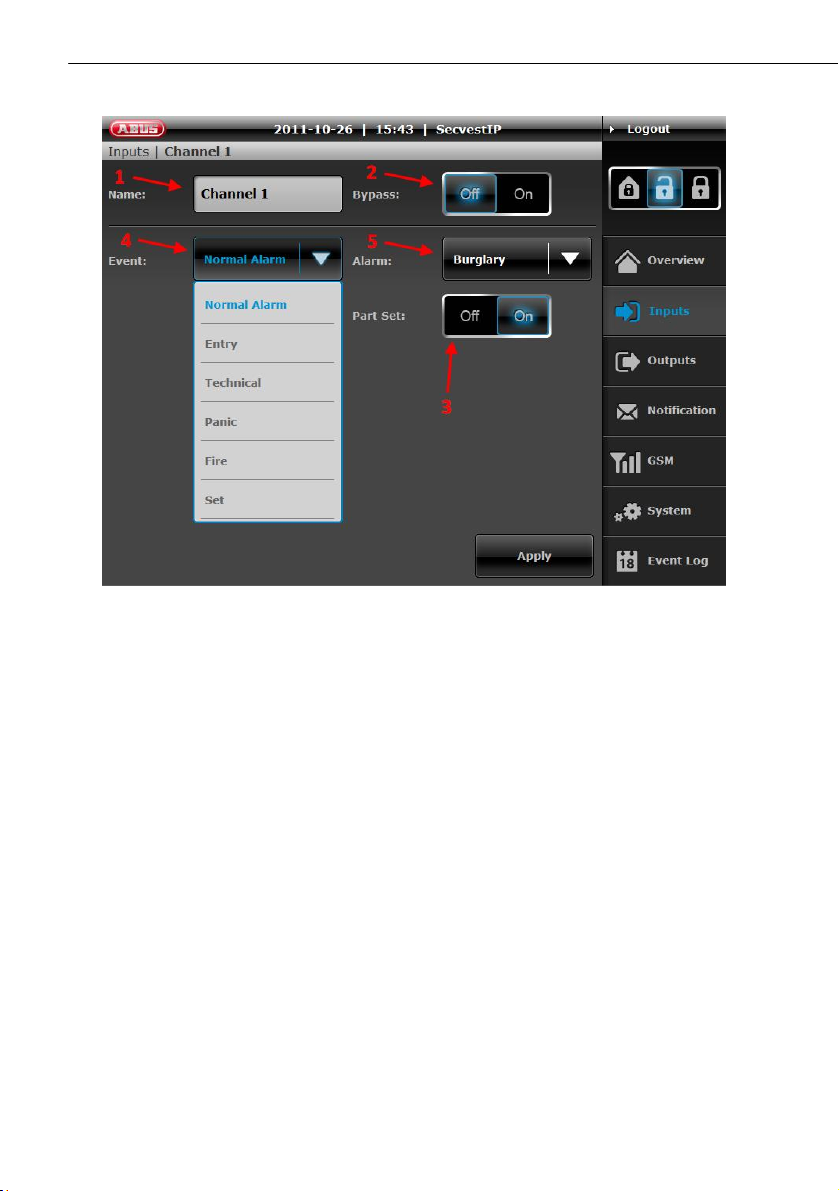

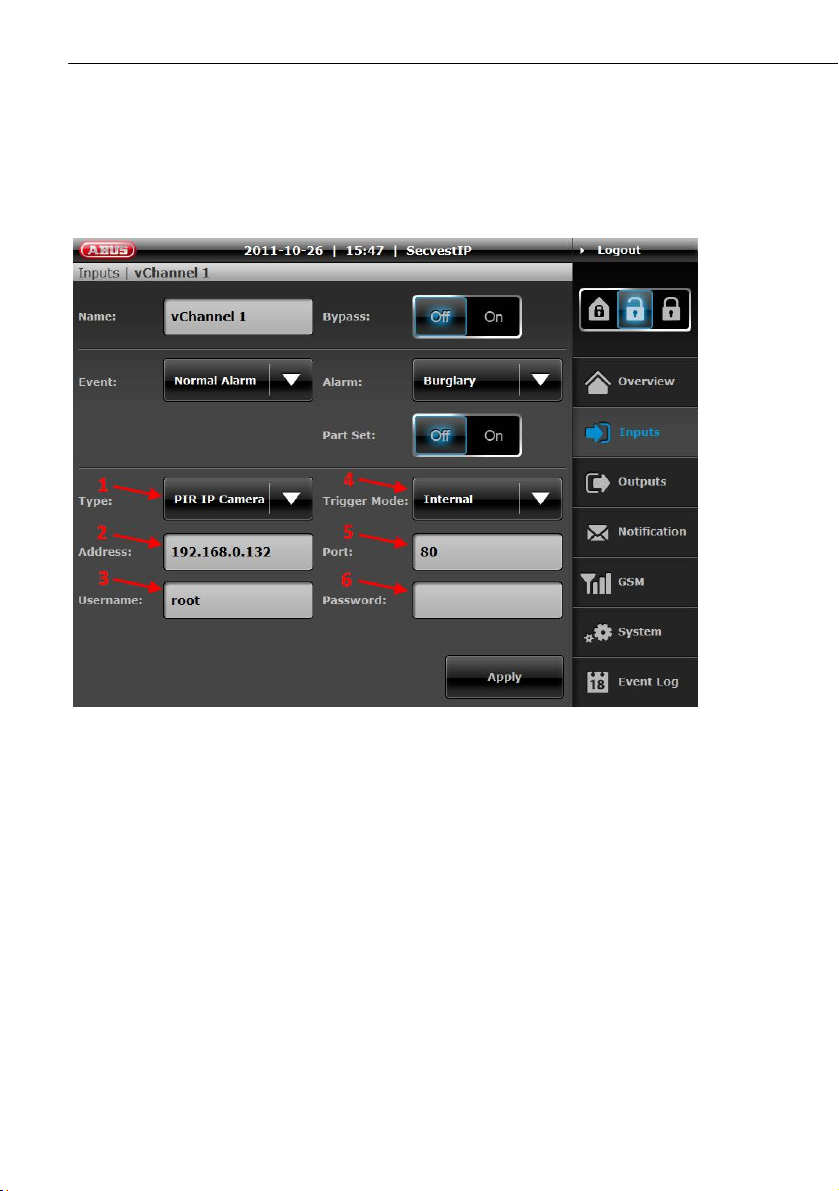

14.3 Inputs

Name the inputs according to the detectors that you want to train. Select the
attributes and the associated alarm type.
To go back to a higher level menu from a submenu, press the corresponding buttons
on the selection bar on the right.

24
