ABtUS AVS-317 User Manual
SPECIFICATIONS
INPUT: VGA Input x 2 (*D-Sub 15pin)
PC-Audio x 2 (*3.5mm)
C-Video x 1 (*RCA)
Stereo Audio x 1 (*RCA), Audio loop back (HDMI Audio)
Microphone x 1 (*3.5mm)
USB-B x 2 (switcher with build in buffer)
USB-A x 1 (for Thumb Drive with build in buffer)
HDMI Input x 1 (19 pin female with build in buffer)
S-Video Input x 1 (Pass through)
OUTPUT: VGA output x 2
(**1 to projector and 1 for monitor)
HDMI Output x 1
S-Video x 1
C-Video x 1
Main Stereo Audio x1
USB-B x 1
USB-A x 1
VGA BANDWIDTH: 2:1x2 Switching
Both with 900MHz (R+G+B)
MAX RESOLUTION: 1280 x 1024 (VGA) , Full HD 1080p (HDMI)
ALL CABLE LENGTH: Up to 7 meter (USB), Up to 15 meter (HDMI),
Up to 28 meter (All other cables)
CONFIGURATION 1 x RS-232 (9600, 8 data bit, Non Parity and 1 stop bit)
COM PORT 1 x RS-232 (8 Data Bit and 1 Stop Bit)
Baud Rate (9600 to 115200) Parity Bit (Non, Even or Odd)
DELAY TIME: Projector “ON/OFF” delay time (*in sec) 1 to 99
CONTROL BUTTON: Number of user defined “Control Button” x 8 (10 commands)
Available protocol for each “Control Button” x 1
(or x 2 depending on configurations)
LED With LED indication and buzzer for confirmation
VIDEO SELECTION: All VGA / USB Input Switching Digital
AUDIO SELECTION: Audio Input Switching Digital
VOLUME: Main Volume Control Analog
MIC GAIN: Microphone Input Gain Control Analog
POWER ADAPTOR: 12V-DC, 500mA
HOUSING: ABS
DIMENSIONS | WEIGHT: (149 x 88 x 48)mm | Weight:350g
ACCESSORIES: AC-DC Power Adaptor 12V-DC, 500mA
*subject to grade of cables used

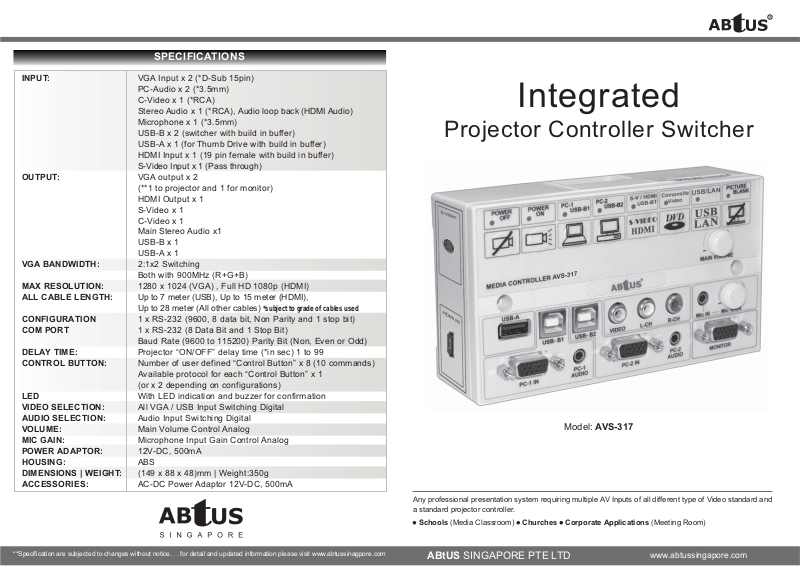

Integrated
Projector Controller Switcher
Model: AVS-317
Any professional presentation system requiring multiple AV Inputs of all different type of Video standard and
a standard projector controller.
Schools (Media Classroom) Churches Corporate Applications (Meeting Room)
**Specification are subjected to changes without notice. . . for detail and updated information please visit www.abtussinagpore.com
ABtUS SINGAPORE PTE LTD
www.abtussingapore.com
User Operation Guide
PRODUCT DESCRIPTION
The ABtUS AVS-317 Media Control Panel is one of the most user friendly and installer friendly unit
that is specifically designed for an easy and central control of any AV projection system with USB
interactive connectivity. It removes the need for over-complicated and multiple remote control
handsets. With the 2:1 USB-B switcher, switching for projection with interactive can now be done
with just a push of a button.
PRODUCT HIGHLIGHTS
• “User Programmable” with Window based Application Software
• Simple to use with one to one function controlled buttons
• Works well with any monitors, projectors as well as interactive systems
• Supports 2:1x2 VGA and 1:1 HDMI DA
• Easy Installation with standard 2.45mm connector and cabling
• Fully self contained / integrated Projector Controller with AV switcher
• Build in USB buffer with best connectivity for interactive system and USB thumb drive
BASIC FUNCTION AND CONTROL
INTERNAL PCB LAYOUT AND INTER CONNECTION
SYSTEM DIAGRAM
