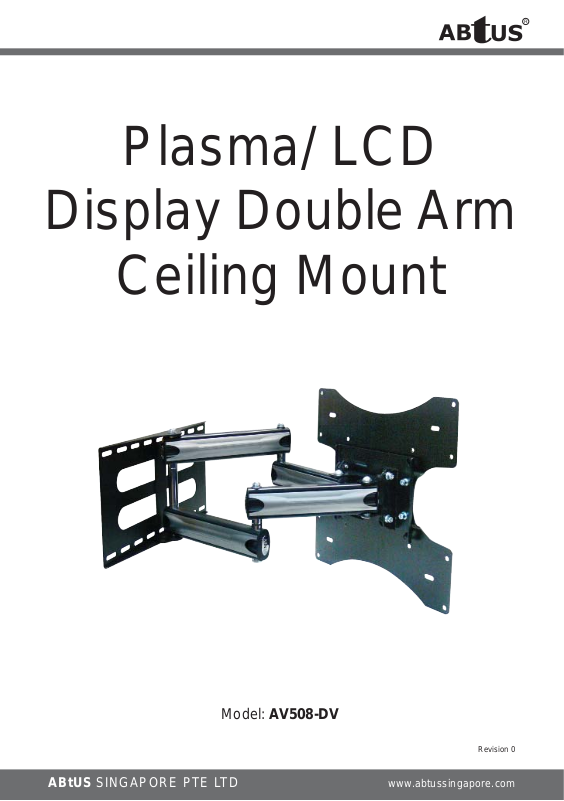

ABtUS AV508-DV User Manual

Plasma/ LCD

Display Double Arm

Ceiling Mount

ABtUS SIGAPORE PTE LTD www.abtussingapore.com

ABtUS SINGAPORE PTE LTD www.abtussingapore.com

Model: AV508-DV

Revision 0

User Operation Guide

PACKAGE CONTENTS

Item 1

Wall Arm - 1 set

Item 2

Screw bag - 1 set

DIMENSIONS

INSTALLATION

Step - 1 - Marks position of the Wall Plate mounting holes.
1(a) - For concrete wall, drill and insert Wall Anchors (in Item 5) into concrete wall. Secure Wall plate

with Lag bolts and Washers provided on the wall.
1(b) - For wood stud, drill and secure Wall plate with Lag bolts and Washers provided on wooden wall.

Note: do not use Wall Anchor for mounting on wooden wall.

Lag Bolts and Washers

Wall anchors

1(a) - for concrete wall 1(b) - for stud wall

Step - 2 - Loosen (do not remove) the top screws(2x) at hook area. Remove the bottom screws at the
curved slot hole area. Lift and unhook the Front VESA plate out of the wall arm.

Front VESA plate

Lift and unhook

Top screws at
the hook area

Bottom screws at the
curved slot area

*Specifi cations are subject to changes without notice.
