Abocom Systems WUE1K5 User Manual

802.11b

Wireless & Fast

Ethernet

USB Adapter

User Guide

Doc. No.: 071202-01

REGULATORY STATEMENTS

FCC Certification

The United States Federal Communication Commission (FCC) and the Canadian
Department of Communications have established certain rules governing the use
of electronic equipment.

Part15, Class B

This model 802.11b Wireless & Fast Ethernet USB Adapter (WUE1500) must be
installed and used in strict accordance with the manufacturer’s instructions as
described in the user documentation that comes with the product.

This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions:

1) This device may not cause harmful interface, and

2) This device must accept any interface received, including interface that may
cause undesired operation. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

◗ Reorient or relocate the receiving antenna.
◗ Increase the distance between the equipment and receiver.
◗ Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Warring: Changes or modifications not expressly approved by party responsible for
compliance could void the user the user authority to operate the equipment

CAUTION:

1) To comply with FCC RF exposure compliance requirements, a separation

distance of at least 20 cm must be maintained between the antenna of this
device and all persons.

2) This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Technical Support

AboCom Systems, Inc.
300 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan , R.O.C.
Head office :
Tel: [phone]
Fax:[phone]
Technical Support:
Tel: [phone]

E-Mail: [e-mail]
Website: www.abocom.com.tw

U.S Service Center:

D-LINK CORPORATION

53 DISCOVERY DRIVE, IRVINE CA 92618, USA

TEL: [phone]

Table of Contents

INTRODUCTION ..................................................................................1

FEATURES ............................................................................................. 2

SOFTWARE INSTALLATION............................................................ 3

INSTALLATION THE UTILITY UNDER WINDOWS 98SE/ME/2000 ...........3

HARDWARE INSTALLATION ..........................................................7

INSTALLATION OF THE USB ADAPTER FOR WINDOWS 98SE/ME/2000 7

Manually...................................................................................7

Automatically ........................................................................... 8

Under Windows 98SE ......................................................8

Under Windows ME .........................................................9

Under Windows 2000 .....................................................10

INSTALLATION OF THE USB ADAPTER FOR WINDOWS XP ..................11

NETWORK CONNECTION ..............................................................16

CONFIGURING THE NETWORK PROTOCOLS FOR WINDOWS 98SE/ME .16

CONFIGURING THE NETWORK PROTOCOLS FOR WINDOWS 2000.........20

USB 10/100 Network Adapter................................................ 20

Wireless USB Adapter............................................................ 23

ONFIGURING THE NETWORK PROTOCOLS FOR WINDOWS XP............ 24

C

USB 10/100 Network Adapter................................................ 24

Wireless USB Adapter............................................................ 26

CONFIGURATION PROCEDURE ...................................................27

CONFIGURATION AND MONITOR UTILITY FOR WINDOWS

98SE/ME/2000 ................................................................................... 27

CONFIGURATION FOR WINDOWS XP ...................................................39

USB 10/100 Network Adapter................................................ 39

Wireless USB Adapter............................................................ 41

UNINSTALL PROCEDURE............................................................... 47

UNINSTALL PROCEDURE UNDER WINDOWS 98SE/ME/2000 .............. 47

Uninstall the Configuration Utility .........................................47

Uninstall the device ................................................................49

Under Windows 98SE/ME .............................................49

Under Windows 2000 .....................................................50

UNINSTALL PROCEDURE UNDER WINDOWS XP .................................. 53

Uninstall the driver ................................................................. 53

USB 10/100 Network Adapter........................................ 53

Wireless USB Adapter.................................................... 56

Uninstall the device ................................................................57

USB 10/100 Network Adapter........................................ 57

Wireless USB Adapter.................................................... 58

SPECIFICATIONS ..............................................................................60

Wireless.........................................................................60

LAN ............................................................................... 61

Introduction

The 802.11b Wireless & Fast Ethernet USB Adapter is the

multifunction device for your wireless network applications and based on

the IEEE 802.11b standard offering a data rate of 11Mbps in a wireless

LAN environment and 10/100Mbps traditional network. It is a

high-speed wireless network device that plugs into your notebook or

desktop PC and accesses to the LAN or peer-to-peer networking easily

without wires or cables. Besides, this device allows you to connect the

traditional 10/100 Mbps network via the RJ-45 port. Whether you’re at

your desk or in the boardroom, it allows you to share printers, files, and

other network resources via wireless LAN or Fast Ethernet network.

The USB adapter designed to be inserted into a USB type A port of a

laptop or desktop computer creating a wireless or LAN workstation.

With the tightly integrated wireless LAN and LAN networking, the users

do not need to juggle multiple cards for concurrent use of wireless LAN

and LAN, it is greatly improvement of the wireless and LAN and gets the

real convenience.

-

1 -

Features

 Complies with IEEE802.11b standard for 2.4GHz Wireless LAN

 Dual-speed RJ-45 port auto-negotiation 10BaseT/100BaseTX

 USB 1.1 compliant

 USB Plug & Play

 Interoperable with existing network infrastructure

 Secure information transmission

 Freedom to roam while staying connected

 Compatible with specialty wireless products and services

 Up to 11Mbps data rate

 Support operating systems such as Window 98SE/2000/ME/XP

 Lower power consumption

 Easy of Installation

 High-power Bus-power no external power is required

-

2 -

Software Installation

Precaution for Windows 98SE, 2000, and ME users: Please install

the Adapter's software before installing the hardware for saving your

time.

Precaution for Windows XP users: It’s not necessary to install the

utility, since the device will use the built-in utility in Windows XP.

Installation the Utility under Windows

98SE/ME/2000

1. Insert the Setup Utility CD-ROM into the CD-ROM drive and

double click on Setup.exe to install the Configuration & Monitor
Utility.

2. When the Welcome screen appears, click Next to continue.

-

3 -

3. The Choose Destination Location screen will show you the default

destination chosen by the utility. Click Next to continue.

-

4 -

4. Follow the instruction to select the program folder. Click Next to

continue.

5. In Start Copying Files, click Next to continue.

-

5 -

6. In Setup Status, the InstallShield Wizard will begin copying the

files.

7. After the Configuration Utility has been successfully installed, select

Yes, I want to restart my computer now, and then click Finish to
restart.

-

6 -

Hardware Installation

Installation of the USB Adapter for Windows

98SE/ME/2000

Automatically

Precaution for Windows 98SE, 2000, and ME users: If the

Application setup in Installation the Utility under

Windows98SE/ME/2000 has been completed, follow below steps to

install the hardware.

For Windows 98SE users: As you perform the installation, have

your system operating CD-ROM at hand. You may be asked to insert

the OS CD-ROM for the system to download a specific driver.

1. Plug the square end (Type B) of USB cable into the adapter's USB

port.

2. Plug the rectangle end (Type A) of USB cable into the PC's USB

port.

3. Insert one end of your network cable into the RJ-45 network port.

Connect the other end of the cable into a Hub.

After the device has been connected to your computer, Windows will
detect the new hardware and then automatically copy all of the files
needed for networking.

Precaution for Windows 2000 users: When Digital Signature Not

Found screen appears, click Yes to continue.

-

7 -

Manually

If you want to install the Hardware before installing the utility,

please follow the below section.

Under Windows 98SE

1. In Add New Hardware Wizard, click Next.

2. Click Search for the best driver for your device (Recommended).

3. Insert the device driver CD-ROM into the CD-ROM drive. Select

Specify a location: and click Browse to provide the appropriate
path (e.g. D:\Win98). Click Next.

-

8 -

4. Click Next, Windows will copy all the necessary files to your

system.

5. Insert Windows 98SE CD-ROM.

6. Click Finish to continue.

7. When Windows prompts you to restart your computer, click No.

8. Repeat step 1-6.

9. When Windows prompts you to restart your computer, click Yes.

Then go to Installation the Utility under Windows98SE/ME/2000 section
for installing the utility.

Under Windows ME

1. Select Specify the location of the driver (Advanced), click Next.

2. Insert the device driver CD-ROM into the CD-ROM drive. Select

Search for the best driver for your device (Recommended) and
click Browse to provide the appropriate path (e.g. D:\WinME).
Click Next.

3. Click Next, Windows will copy all the necessary files to your

system.

4. Click Finish to continue.

5. When Windows prompts you to restart your computer, click No.

6. Repeat step 1-4.

7. When Windows prompts you to restart your computer, click Yes.

Then go to Installation the Utility under Windows98SE/ME/2000 section
for installing the utility.

-

9 -

Under Windows 2000

1. In Found New Hardware Wizard, click Next.

2. In Install Hardware Device drivers, click Search for a suitable

driver for my device (Recommended).

3. Insert the device driver CD-ROM into the CD-ROM drive. Select

CD-ROM drivers and Specify a location.

4. Click Browse to provide the appropriate path (e.g. D:\Win2000).

Click OK.

5. Click Next, Windows will copy all the necessary files to your

system.

6. Click Yes to continue the installation.

7. Click Finish to continue.

8. Repeat step 1-6.

9. Click Finish.

10. Restart your computer.

Then go to Installation the Utility under Windows98SE/ME/2000 section
for installing the utility.

Precaution for Windows XP users: You must install the Adapter's

hardware, and then go to Installation of the USB Adapter for

Windows XP.

-

10 -

Installation of the USB Adapter for Windows XP

1. Once the device is well connected to your computer, Windows XP

will automatically detect the new device. Click Install from a list…
and click Next.

2. Insert the Setup Utility CD-ROM into the CD-ROM drive. Select

Include this location in the search: and click Browse to provide
the appropriate path (e.g. D:\WinXP). Click Next.

-

11 -

3. Click Continue Anyway to proceed.

-

12 -

4. Click Finish to continue the Utility installation.

5. Wait for seconds. Windows XP will automatically detect the new

hardware. Click Install from a list or specific location (Advanced)
and click Next.

-

13 -

6. Select Include this location in the search: and click Browse to

provide the appropriate path (e.g. D:\WinXP). Click Next.

7. Click Continue Anyway to proceed.

-

14 -

8. Click Finish to complete the Utility installation.

-

15 -

Network Connection

Once the driver has been installed, you must make some changes to your

network settings.

Configuring the Network Protocols for Windows

98SE/ME

1. Go to Start  Settings  Control Panel  Network.

2.

Make sure that you have all the following components installed.

 USB 10/100 Network Adapter

 Wireless USB Adapter

-

16 -

 IPX/SPX-compatible Protocol

 NetBEUI

 TCP/IP

If any components are missing, click on the Add button to add them in.
All the protocols and clients required listed above are provided by
Microsoft.

3. After clicking Add, highlight the component you need, click Add.

4. Highlight Microsoft, and then double click on the item you want to

add. Click OK.

5. For making your computer visible on the network, enable the File

and Printer Sharing.

-

17 -

6. Click the Identification tab. Make up a name that is unique from

the other computers' names on the network. Type the name of your
workgroup, which should be the same used by all of the other PCs
on the network.

7. Click the Access Control tab. Make sure that “Shared-level

access control” is selected. If connecting to a Netware server,
share level can be set to “User-level access control.”

-

18 -

8. When finished, reboot your computer to activate the new device.

9. Once the computer has restarted and Windows has booted up, a

Logon window will appear and require you to enter a username and
password. Make up a username and password and click OK. Do
not click the Cancel button, or you won’t be able to log onto the
network.

10. Double-click the Network Neighbourhood icon on the Windows

desktop, and you should see the names of the other PCs on the
network.

-

19 -

Configuring the Network Protocols for Windows

2000

USB 10/100 Network Adapter

1. Go to Start Settings  Control Panel  Network and Dial-up

Connections  Local Area Connection  Properties.

2. Make sure that you have all the following components installed.

 Client for Microsoft Networks

 NWLink NetBIOS

 NWLink IPX/SPX/NetBIOS Compatible Transport Protocol

 Internet Protocol (TCP/IP)

-

20 -

3. If any components are missing, click on the Install…button to select

the Client/Service/Protocol required. After selecting the component
you need, click Add…to add it in.

-

21 -

4. For making your computer visible on the network, make sure you

have installed File and Printer Sharing for Microsoft Networks.

-

22 -

5. When finished, you must restart your computer to complete

installation.

Wireless USB Adapter

1. Go to Start Settings  Control Panel  Network and Dial-up

Connections  Local Area Connection 2  Properties.

2. Repeat step 2-5 in previous section. (USB 10/100 Network Adapter

-

23 -

)

Configuring the Network Protocols for Windows XP

USB 10/100 Network Adapter

1. Go to Start  Control Panel  Network and Internet

Connections  Network Connections  Local Area Connection
Enabled USB 10/100 Network Adapter  Properties.

2. Make sure that you have all the following components installed.

 Client for Microsoft Networks

 NWLink NetBIOS

 NWLink IPX/SPX/NetBIOS Compatible Transport Protocol

 Internet Protocol (TCP/IP)

-

24 -

3. If any components are missing, click on the Install…button to select

the Client/Service/Protocol required. After selecting the component
you need, click Add…to add it in.

-

25 -

4. For making your computer visible on the network, make sure you

have installed File and Printer Sharing for Microsoft Networks.

5. When finished, you must restart your computer to complete

installation.

Wireless USB Adapter

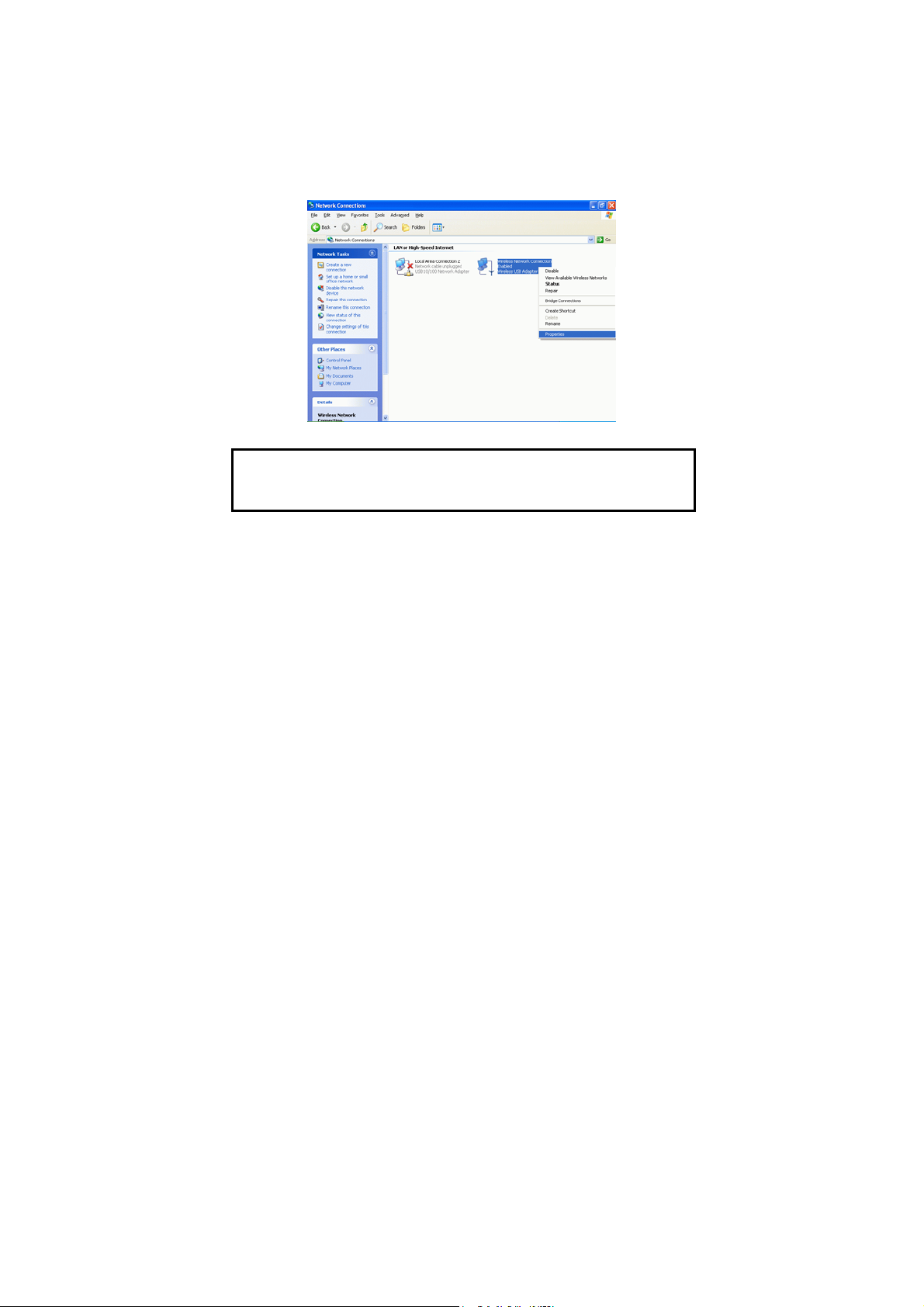

1. Go to Start Control Panel  Network and Internet

Connections  Network Connections  Local Area Connection
Enabled Wireless USB Adapter  Properties

2. Repeat Step 2-5 in previous section. (USB 10/100 Network Adapter

)

-

26 -

Configuration Procedure

Configuration and Monitor Utility for Windows

98SE/ME/2000

After installing the device successfully, go to Start  Programs 

802.11 Wireless + USB 10&100 LAN  Configuration and Monitor

Utility.

The Wireless LAN Monitor Utility icon will appear in the taskbar every
time the device is running. You can open it by double-clicking on this
icon.

-

27 -

Icon Status

Mode Icon Link Status

Access Point mode

Peer-to-Peer mode

Red. The station is not associated

to an Access Point.

Blue. The station associates itself
to an Access Point.

Red. The color is red only when
the card is during resetting and
initialization procedure.

Blue. Peer-to-Peer mode is
activated.

Note: Except for the following configuration utility, using Windows
to configure the wireless network settings in the Windows XP is
recommended. (Please skip to the Configuration for Windows XP
section)

All settings are categorized into 6 tabs:

Status

Statistics

Site Survey

Encryption

Advanced

Info

-

28 -

b

Status

The Status tab will display the current status of the Wireless USB
Adapter.

Item Description

Operating Mode

Channel

SSID

It displays the current operating mode. (Access
Point or Peer-to -Peer).

It shows the selected channel that is currently
used. (There are 14 channels available, depends
on the country.)

The SSID is the unique name shared among all
points in your wireless network. The name must

e identical for all devices and points attempting

-

29 -

Item Description

to connect to the same network.

It shows the current SSID setting of the
Wireless USB Adapter.

Tx Rate

Int Roaming

Radio

Status

Signal Strength

Link Quality

Change

Submit

It shows the current transfer rate. (1, 2, 5.5, or
11Mbps or Auto)

It displays the current roaming status. (Disabled
or Enabled)

It displays the current status of the Wireless
USB Adapter. (On or Off)

It displays the information about the status of
the communication (the BSSID of the Access
Point to which the card is associated).

It displays the signal strength of the connection
between the Wireless USB Adapter and the
Access Point it connects.

It displays the link quality of the connection
between the Wireless USB Adapter and the
Access Point it connects.

Click Change to change the configuration
parameters such as Operating Mode, SSID, Tx

Rate, and Int Roaming. (In Peer-to-Peer mode,
Change button is enabled).

Click Submit to save the changes.

Cancel

Click Cancel to ignore the previous setting.

-

30 -

Statistics

This option shows you to view the available statistic information
(Data packets, Management Packets and Rejected packets). Press the

Reset button to renew or update this list of statistics.

-

31 -

Site Survey

The Site Survey tab shows all the available Access Points and their

features.

Item Description

BSSID

SSID

A set of wireless stations is referred to as a Basic
Service Set (BSS). Computers in a BSS must be
configured with the same BSS ID.

The SSID is the unique name shared among all
points in your wireless network.

The name must be identical for all devices and
points attempting to connect to the same
network.

-

32 -

Item Description

Signal

Channel

Encryption

It displays the signal strength of the connection
between the Wireless USB Adapter and the
Access Point it connects.

It shows the selected channel that is currently
used.

It displays the status of WEP Encryption.

BSS

Re-Scan

Cancel

Exit

It displays the type of Basic Service Set.

Access Point: allows the Adapter to
communicate with a wired network which
employing an Access Point.

Peer-to-Peer: allows PC-to-PC,
station-to-station communication without
employing an Access Point.

Search for all available networks. Clicking on
the button, the device will start to rescan and list
all available sites.

Click Cancel to ignore the previous setting. (Do
not press Cancel while Re-Scan is working.)

Click Exit to exit the application.

-

33 -

Encryption

WEP (Wired Equivalent Privacy) encryption can be used to ensure the
security of your wireless network.

Item Description

Encryption

Key1/Key2/

Key3/Key4

WEP is a data privacy mechanism based on a

64-bit/128-bit shared key algorithm.
Under the drop-down box, you can choose to

have WEP encryption Disabled, 64 Bit, or 128
Bit.

This setting is the configuration key used in
accessing the wireless network via WEP
encryption. To generate an encryption key:

1. Select 64 Bit or 128 Bit.

2. Click "Key1" or "Key2" or "Key3" or "key4"
item, then fill in the appropriate value/phrase.

-

34 -

Default Key

Mode

Authentication
Type

Submit

You can specify up to 4 different keys to decrypt
wireless data. Select the Default key setting from
the pull-down menu.

Two WEP modes are available as below:

Mandatory and Optional.
Mandatory: WEP Encryption is required to

establish connection with other stations within
the wireless network.

Optional: Your station can communicate with

other stations within the wireless network
regardless if they use WEP or not.

The authentication type defines configuration
options for the sharing of wireless networks to
verify identity and access privileges of roaming
wireless network cards.

You may choose between Open System,

Shared Key, and Auto.

Open System: If the Access Point is using

"Open System" authentication, then the
wireless adapter will need to be set to the same
authentication type.

Shared Key: Shared Key is when both the

sender and the recipient share a secret key.

Auto: Select Auto for the USB adapter to select

the Authentication type automatically depending
on the Access Point Authentication type.

Click Submit to save the changes.

Exit

Click Exit to exit the application.

Note: You must use the same value/phrase or WEP key

settings for all wireless computers in order for the
wireless network to function well.

-

35 -

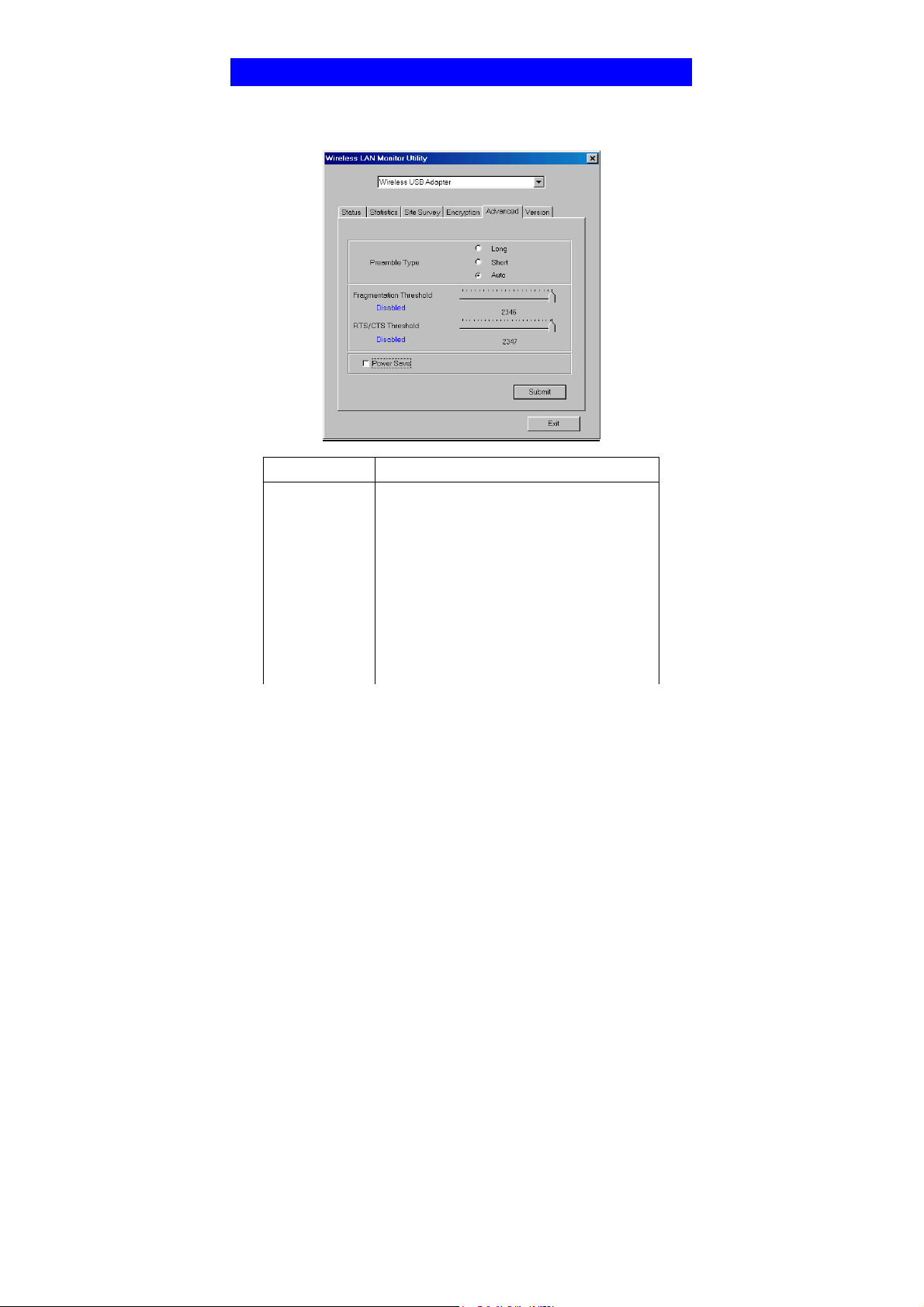

Advanced

You can change advanced configuration settings, such as the
Preamble Type, Fragmentation Threshold and RTS/CTS Threshold.

Item Description

Preamble Type

 Long

 Short

A preamble is a signal used in wireless
environment to synchronize the transmitting
timing including Synchronization and Start
frame delimiter.

If in a "noisy" network environment, the
Preamble Type should be set to Long.

The Short preamble is intended for applications
where minimum overhead and maximum
performance is desired. If in a "noisy" network
environment, the performance would be
decreased.

-

36 -

Fragmentation
Threshold

RTS/CTS
Threshold

Power Save

Submit

 Auto

Select Auto for the USB adapter to select the
Preamble type automatically depending on the
Access Point Preamble type.

To fragment MSDU or MMPDU into small sizes
of frames for increasing the reliability of frame
(The maximum value of 2346 means no
fragmentation is needed) transmission. The
performance will be decreased as well, thus a
noisy environment is recommended.

This value should remain at its default setting of

2347. Should you encounter inconsistent data
flow, only minor modifications of this value are
recommended.

Check the box to allow the Adapter to go to
sleep mode, during which data communication
could be interrupted.

Click Submit to save the changes.

Exit

Click Exit to exit the application.

-

37 -

Info

You can view basic information about the Utility like the Driver, Firmware and

Application Version. Use the Exit button to exit the application.

-

38 -

Configuration for Windows XP

USB 10/100 Network Adapter

1. Go to Start  Control Panel  Network and Internet

Connections  Network Connections.

2. In Network Connections window, right-click the Local Area

Connection Enabled USB 10/100 Network Adapter icon, and

select Properties.

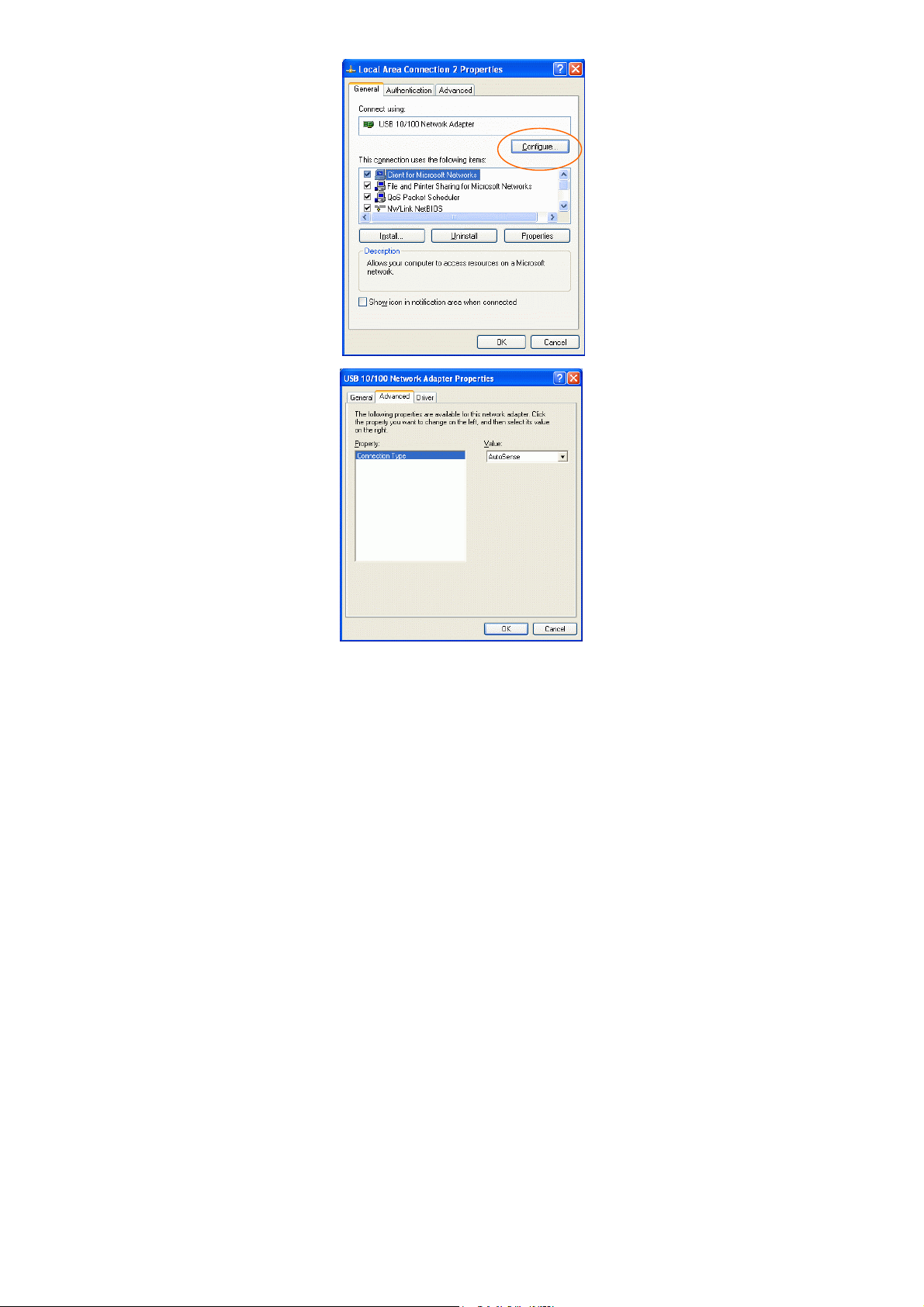

3. In Local Area Connection Properties window, select the General

tab. Click Configure to enable Windows configuration.

-

39 -

-

40 -

Wireless USB Adapter

1. Go to Start  Control Panel  Network and Internet

Connections  Network Connections.

2. In Network Connections window, right-click the Wireless

Network Connection Enabled Wireless USB Adapter icon, and
select Properties.

Note: Double-click the Wireless Network Connection Enabled
Wireless USB Adapter icon and you will see the status of the wireless

PC Card.

3. In Wireless Network Connection Properties window, select the

Advanced tab.

-

41 -

Property Description

802.11 Power
Save

Fragmentation
Threshold

Preamble Type

Enable the function to allow the Adapter to go to
sleep mode, during which data communication
could be interrupted.

To fragment MSDU or MMPDU into small sizes
of frames for increasing the reliability of frame
(The maximum value of 2346 means no
fragmentation is needed) transmission. The
performance will be decreased as well, thus a
noisy environment is recommended.

A preamble is a signal used in wireless
environment to synchronize the transmitting
timing including Synchronization and Start
frame delimiter.

-

42 -

 Long

 Short

 Auto

Rate (Mbps)

RTS Threshold

If in a "noisy" network environment, the
Preamble Type should be set to Long.

The Short preamble is intended for applications
where minimum overhead and maximum
performance is desired. If in a "noisy" network
environment, the performance would be
decreased.

Select Auto for the USB adapter to select the
Preamble type automatically depending on the
Access Point Preamble type.

It shows the current transfer rate. (1, 2, 5.5, or
11Mbps or Auto)

This value should remain at its default setting of

2347. Should you encounter inconsistent data
flow, only minor modifications of this value are
recommended.

4. In Wireless Network Connection Properties window, select the

Wireless Networks tab.

-

43 -

Use Windows to configure…

Check the box to enable Windows configuration.

Available networks

Displays all available networks.

Configure

Click the button to set up a new network or WEP configuration as
illustrated as below.

-

44 -

Refresh

Click the button to refresh and search for all available networks.

Preferred networks

From available network(s) listed above, you can select preferred one(s)
in an order that you can arrange.

The marked one is the currently used network.

-

45 -

Move up

Move the selected network forward one position.

Move down

Move the selected network back one position

Add…

Click the button and the Wireless Network Properties window will
appear. In the Network name field, enter your desired network name
listed in the above Available networks box, and click OK.

Note: The new settings will be active only after you click on OK in the

Wireless Network Connection Properties window.

Remove

Highlight the unwanted network listed in the Preferred networks box,
and click the button to remove it.

Properties

Highlight the network listed in the above Preferred networks box, and
click the button to display its properties.

Once network configuration is done, make sure to click OK. The new
parameters will be saved and active only after doing so.

-

46 -

Uninstall Procedure

Note: In case you need to uninstall the Utility or device, please refer

to below section.

Uninstall Procedure Under Windows 98SE/ME/2000

Uninstall the Configuration Utility

1. Go to Start  Programs  802.11 Wireless + USB 10&100 LAN

 Uninstall Configuration and Monitor Utility.

2. Click OK to continue.

-

47 -

3. Click Yes.

4. Click Finish to complete the uninstalled procedure.

-

48 -

Uninstall the device

Under Windows 98SE/ME

1. Go to Start → Settings → Control Panel → Network.

2. Select USB 10/100 Network Adapter or Wireless USB Adapter

then click Remove. Click OK.

3. The system will prompt you to restart your computer. Click Yes.

-

49 -

Under Windows 2000

USB 10/100 Network Adapter

1. Go to Start → Control Panel → Add/Remove Hardware.

2. When the Welcome screen appears, click Next to continue.

3. In Choose a Hardware Task, select Uninstall/Unplug a device and

click Next.

-

50 -

4. In Choose a Removal Task, select Uninstall a device and click

Next.

5. Check the Show hidden devices check box and locate the device in

the device list. Select the device and click Next.

6. Select Yes, I want to uninstall this device and click Next.

-

51 -

7. Click Finish to complete the uninstalled procedure.

Wireless USB Adapter

1. Repeat Step 1-4 in previous section. (USB 10/100 Network Adapter

2. Check the Show hidden devices check box and locate the device in

the device list. Select the device and click Next.

-

52 -

)

3. Select Yes, I want to uninstall this device and click Next.

4. Click Finish to complete the uninstalled procedure.

Uninstall Procedure Under Windows XP

Uninstall the driver

USB 10/100 Network Adapter

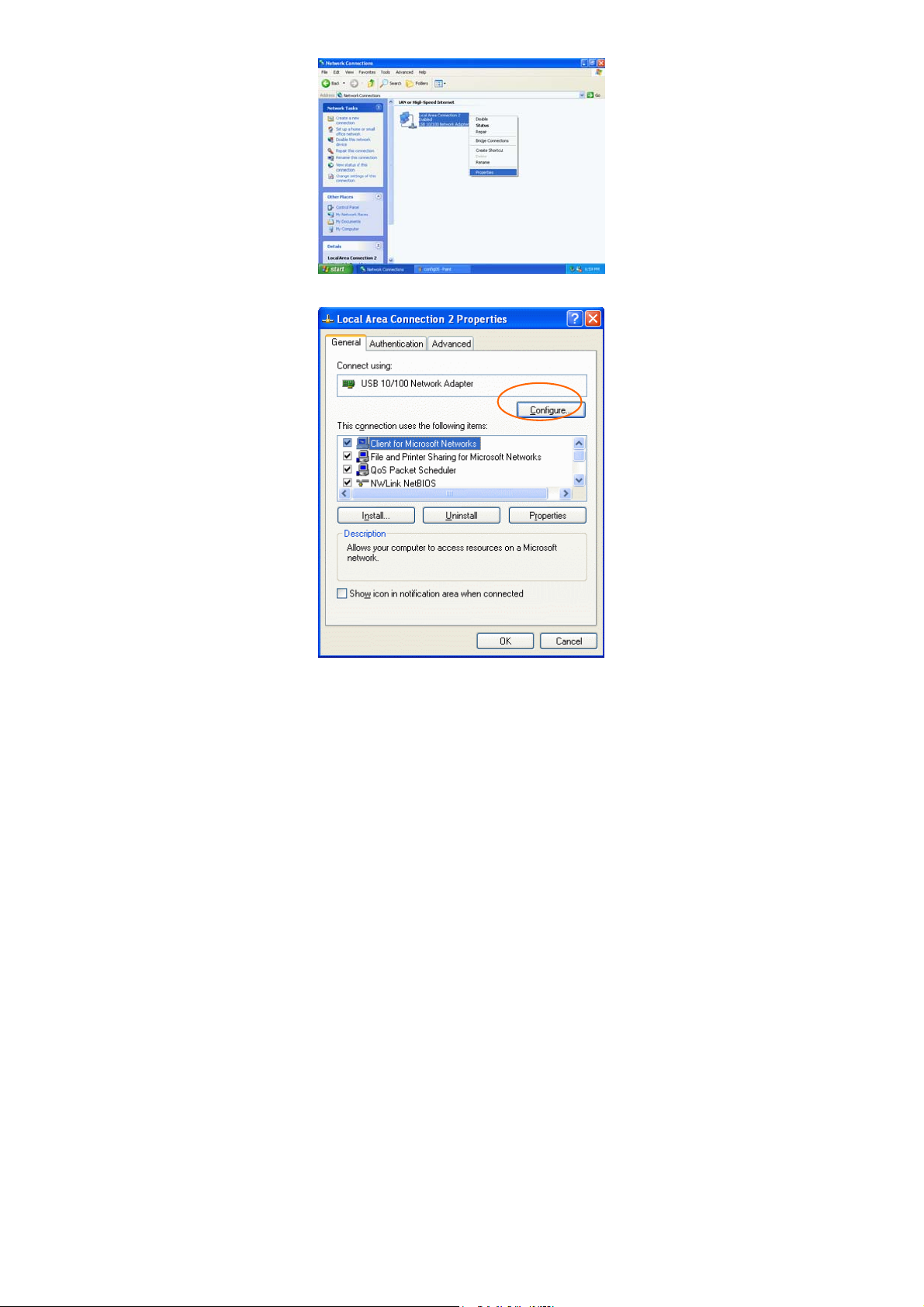

1. Go to Start  Control Panel  Network and Internet

Connections  Network Connections  Local Area Connection
Enabled USB 10/100 Network Adapter  Properties.

-

53 -

2. Click Configure to continue.

-

54 -

3. In Driver tab, click Uninstall to uninstall this device.

4. Click OK to complete the uninstalled procedure.

-

55 -

Wireless USB Adapter

1. Go to Start  Control Panel  Network and Internet

Connections  Network Connections  Wireless Network
Connection Enabled Wireless USB Adapter  Properties.

2. Click Configure to continue.

3. In Driver tab, click Uninstall to uninstall this device.

4. Click OK.

-

56 -

Uninstall the device

USB 10/100 Network Adapter

1. Go to Start  Control Panel  System  Hardware  Device

Manager.

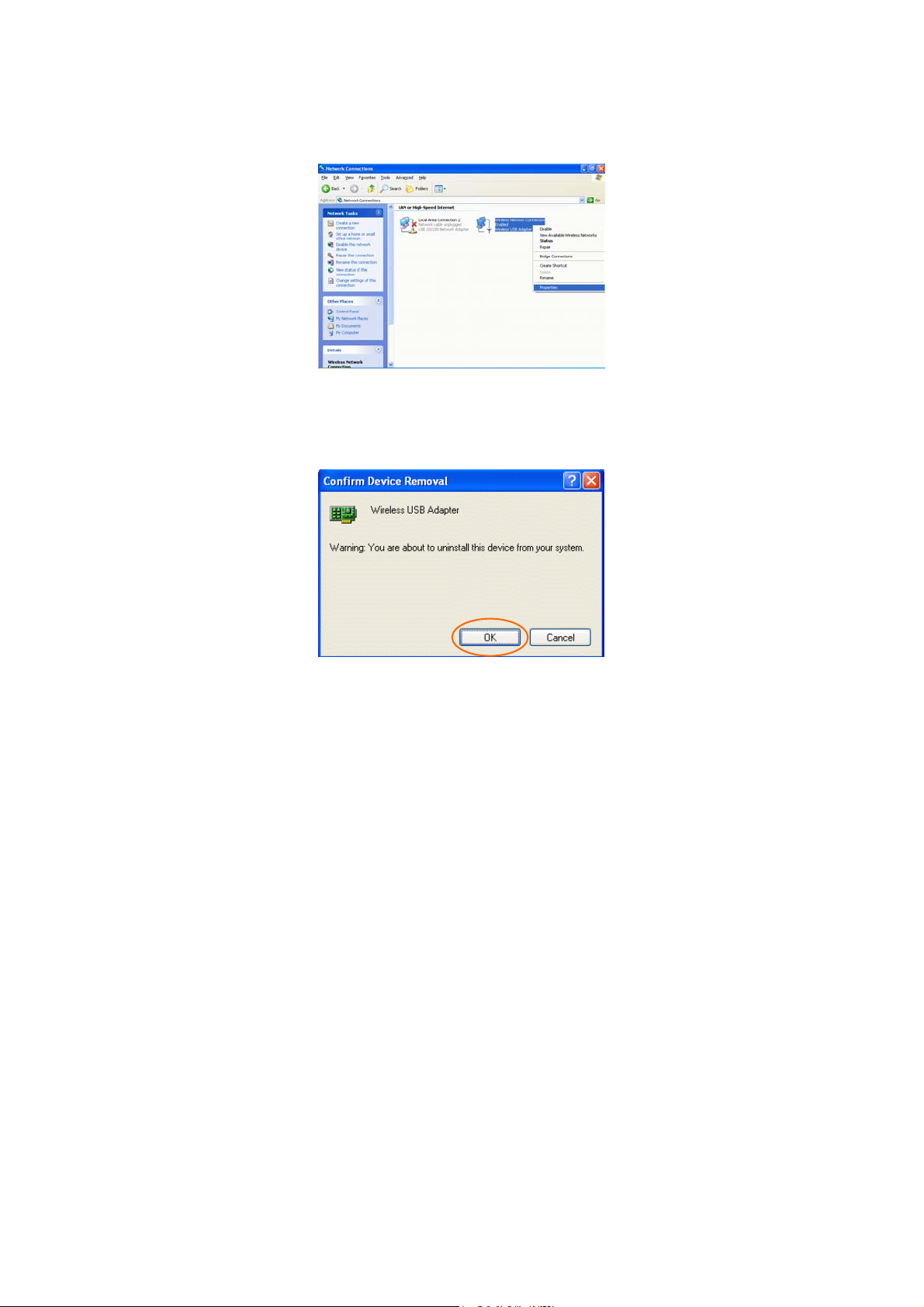

2. In Network Adapter item, right-click USB 10/100 Network

Adapter and then select Uninstall.

-

57 -

3. Click OK to uninstall this device.

Wireless USB Adapter

1. Go to Start  Control Panel  System  Hardware  Device

Manager.

-

58 -

2. In Network Adapter item, right-click USB 10/100 Network

Adapter and then select Uninstall.

3. Click OK to uninstall this device.

-

59 -

Specifications

Wireless

Standard

Host Interface

Physical

Antenna

LED Indicators

Power Requirement

Frequency Range

Number of
Selectable Channels

Modulation
Technique

IEEE 802.11b

USB 1.1

Weight: 450 g

Dimension: 91.5(L) x 64 (W) x 24.2(H) mm

External Antenna, rotating angle 0° to 90°

Ethernet: Green, ON

Power: Green, ON

WLAN: Green, ON

Operating Voltage: 5V DC

 TX consumption: 442mA (Max)

 RX consumption: 261mA (Max)

2.412GHz ~ 2.4835GHz

USA, Canada: 11 channels

Europe: 13 channels

Japan: 14 channels

Direct Sequence Spread Spectrum (CCK, DQPSK,

DBPSK)

Security

Spreading

Bit Error rate

0/64/128 bit WEP

11 chip Barker sequence

-5

-

60 -

Better than 10

Media Access
Protocol

CSMA/CA (Collision Avoidance) with ACK

Supported OS

EMC Certification

Standards

Ports

Data Rate

Supported OS

Windows 98SE/ ME/ 2000/ XP

FCC Part 15 in US

EN300328 and EN300826 (301489-17) in Europe

LAN

IEEE 802.3 for 10BaseT Ethernet

IEEE 802.3u for 100BaseT Ethernet

1 RJ-45 port; 1 USB B type port

10/100 Mbps for Ethernet data transfer

Windows 98SE/ ME/ 2000/ XP

-

61 -
