Abocom Systems UBT1K User Manual
BluetoothTM USB Adapter
User’s Guide
Doc. No. 070102-02
FCC Part 15 Class B Registration
This model Bluetooth USB Adapter (Model No.: UBT1000) must be installed and used in strict accordance with the manufacturer’s
instructions as described in the user documentation that comes with the product.
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interface, and
2) This device must accept any interface received, including interface that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
Warring: Changes or modifications not expressly approved by party responsible for compliance could void the user the user
authority to operate the equipment.
Caution:
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
U.S Service Center:
D-LINK CORPORATION
53 DISCOVERY DRIVE, IRVINE CA 92618, USA
TEL: 714-788-0805
Licensed Software
Bluetooth for Windows (BTW) is the licensed software owned by WIDCOMM, Inc. (“WIDCOMM”).
Trademark(s) ™ and Registered Trademark(s) ®
Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. Microsoft, Windows are registered
trademarks of Microsoft Corporation. Other brand and product names are trademarks and/or registered trademarks of their respective
holders.
Technical Support
AboCom Systems, Inc.
300 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan , R.O.C.
Head office :
Tel: 886-3-5789090
Fax:886-3-5789520
Technical Support:
Tel: 0800-079-123
E-Mail: support@abocom.com.tw
Website: www.abocom.com.tw
Table of Contents
Part I:......................................................................................................................................... 1
Introductions ............................................................................................................................. 2
Features ................................................................................................................................. 2
Specifications ........................................................................................................................ 2
Standard ............................................................................................................................ 2
Interface ............................................................................................................................ 2
Frequency Band ................................................................................................................ 2
Data Rate........................................................................................................................... 2
Security ............................................................................................................................. 2
Typical Range ...................................................................................................................2
Topology ........................................................................................................................... 3
Antenna ............................................................................................................................. 3
RF Topology .....................................................................................................................3
LED indicator.................................................................................................................... 3
Transmitter Power............................................................................................................. 3
Power Requirement........................................................................................................... 3
Physical Specification ...................................................................................................... 3
Supported operating systems............................................................................................. 3
Certification ...................................................................................................................... 3
Software Installation ................................................................................................................. 4
Start Here .............................................................................................................................. 4
For Windows 98(SE)/ME/2000/XP ...................................................................................... 4
Software Un-installation ........................................................................................................... 8
Hardware installation ................................................................................................................ 9
Precaution.............................................................................................................................. 9
Getting Hooked Up ...............................................................................................................9
Setup Diagnostics.................................................................................................................... 12
Part II: ..................................................................................................................................... 13
About Bluetooh ....................................................................................................................... 14
About BTW..................................................................................................................... 14
Icons Used for Bluetooth Devices and Services.............................................................. 15
Basic Operation....................................................................................................................... 18
Search for Bluetooth Devices.............................................................................................. 18
In Windows 2000 ............................................................................................................ 18
In Windows XP............................................................................................................... 18
Pair ...................................................................................................................................... 19
To initiate pairing with a device...................................................................................... 19
How to use the service of File Transfer .............................................................................. 20
Configuration
........................................................................................................................... 22
General................................................................................................................................ 22
Identity ............................................................................................................................ 22
Security ........................................................................................................................... 22
Accessibility........................................................................................................................ 23
Discovery ............................................................................................................................ 25
Perform a periodic Search for Devices............................................................................ 25
Determine which devices will be reported...................................................................... 25
Information Exchange......................................................................................................... 26
Local Services..................................................................................................................... 28
Client Application ............................................................................................................... 29
Network Access .............................................................................................................. 29
Hardware............................................................................................................................. 30
Version Info ........................................................................................................................ 32

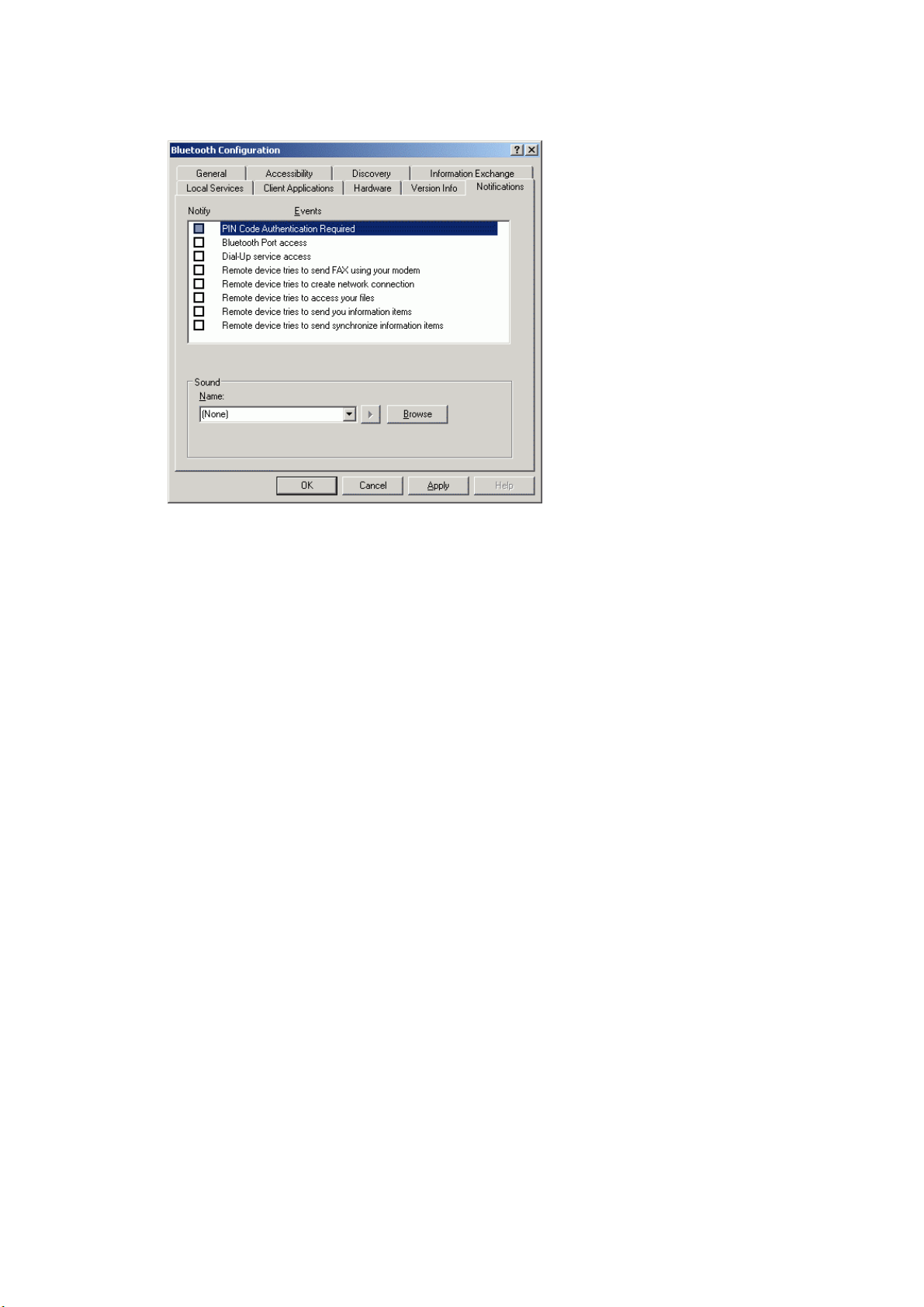

Notifications........................................................................................................................ 33
To associate a sound with a Bluetooth event: ................................................................. 33
Troubleshooting ...................................................................................................................... 35
Part I:
Installation Guide
- 1 -
INTRODUCTIONS
This Bluetooth
Serial Bus port connecting to a desktop or laptop PC. It allows you to make short-range
wireless connections between Bluetooth devices such as cellular phones, personal digital
assistants (PDA), and desktop and notebook computers.
The Bluetooth
almost immediately. Bluetooth
secures data transfers. It helps people share and access the information that's important to
them more easily.
Link your notebook with your handheld, mobile phone, printer and other Bluetooth
within your personal area network (PAN) via a secure short-range wireless radio link. Get rid
of all those troublesome cables and automatically share documents, browse the Internet and
synchronize calendars, address books and more.
Features
Complies with Bluetooth 1.1 specification.
Uses 2.4 GHz ISM frequency band.
High-speed Wireless Transmissions, up to 723 Kbps Data Throughput.
Enable wireless connectivity between a notebook computer and other bluetooth
Connections within ranges up to 32 feet (10 meters).
Provides a high degree of security for communications between Bluetooth devices.
Connect with Bluetooth devices outside your PAN to quickly and easily share
Synchronize devices in your Personal Area Network to keep your data consistent.
Plug and play installation in Windows98 /ME / 2000 / XP.
TM
USB Adapter is specifically designed to plug into an available Universal
TM
USB Adapter uses radio transmission, voice and data are thus transmitted
TM
transmission ensures both protection from interference and
devices
data, files and information with a friend or co-worker.
TM
devices
Specifications
Standard
Bluetooth 1.1 specification compliant
Interface
USB 1.1
Frequency Band
2.400 ~ 2.4835 GHz
Data Rate
Up to 723 Kbps
Security
Data encryption up to 128-bits
Typical Range
Devices connect for access and data sharing within ranges up to 32 feet (10
meters)
- 2 -
Topology
8 devices point-to-multipoint
Antenna
Built in the card
RF Topology
Frequency hopping spread spectrum
LED indicator
Power: Orange
Transmitter Power
Output power meets Class 2 Requirement
Power Requirement
5V DC, 86mA (max.)
Physical Specification
Dimension: 69.53 (L) x 26.68 (W) x 9.19 (H) (mm)
Supported operating systems
Windows 98/ ME /2000 /XP
Certification
FCC Part 15 in US
EN300328 and EN300826 (EN301489-17) in European.
- 3 -
SOFTWARE INSTALLATION
Note: The BTW Software (Version 1.2.2.6 or above) should be installed well prior to the
hardware installation.
Start Here
Once the installation CD is inserted into the computer’s CD-ROM drive, the Auto-Run
function will automatically guide you to start the software installation. If the Auto-Run
function is not workable, however, please open the installation CD to find “setup.exe” file and
double-click the “setup” icon to continue.
Note: Before you install an upgraded version of the software, be sure to uninstall any
previous version, which already exits in your computer. For details of un-installation
procedures, refer to the later section titled “Software Un-installation”.
For Windows 98(SE)/ME/2000/XP
1. On the Welcome screen, click the Next button.
2. When the License Agreement screen is displayed, read the License Agreement, then click
the radio button to the left of “I accept the terms in the license agreement” and click the
Next button.
3. On the Device Information screen, enter the required information:
- 4 -
Device Name—other Bluetooth-enabled devices, when inquiring about devices within
radio range, will see this user-configured device name.
The name can be changed after the installation process through the BTW Configuration
Panel.
Device Type—click the down arrow and choose Desktop or Laptop from the drop-
down list. The device type can be changed after the installation process through the BTW
Configuration Panel.
Click the Next button.
4. On the Destination Folder screen, click the Change button to browse to a new
destination folder for the BTW software. Otherwise, click the Next button to accept the
default folder.
5. The InstallShield Wizard is ready to install the BTW software. If you need to review or
change any settings, click the Back button. Click the Cancel button to exit the Wizard.
Otherwise, click the Install button
- 5 -
6. Click OK at the following message (only for Windows 2000/XP installation).
7. The Installing Bluetooth Software screen displays the installation progress. If prompted to
insert the Windows CD, do so and follow the on-screen instructions.
8. When finished, click Finish to end the Installation Wizard.
9. Remember to restart your computer to have the new configuration take effect.
- 6 -
