Abocom Systems SDW3100 Quick Install Guide

802.11abg

Wireless SDIO Card

User Manual

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:

●

Reorient or relocate the receiving antenna.

●

Increase the separation between the equipment and receiver.

●

Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

●

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

Testing was performed on Notebook PC with antennas at 5 mm spacing. The maximum SAR
value is: 0.476 W/kg.

Table of Contents

Package Contents & System Requirements...................................................................1

Features..............................................................................................................................1

SD WLAN Module Wireless Networks.............................................................................1

SD WLAN Card Network Scenarios......................................................................1

Installing the Driver............................................................................................................3

Accessing WLAN Utility.....................................................................................................6

Configuring WLAN Utility....................................................................................................6

Network Adapters tab.............................................................................................6

IP Address tab.........................................................................................................7

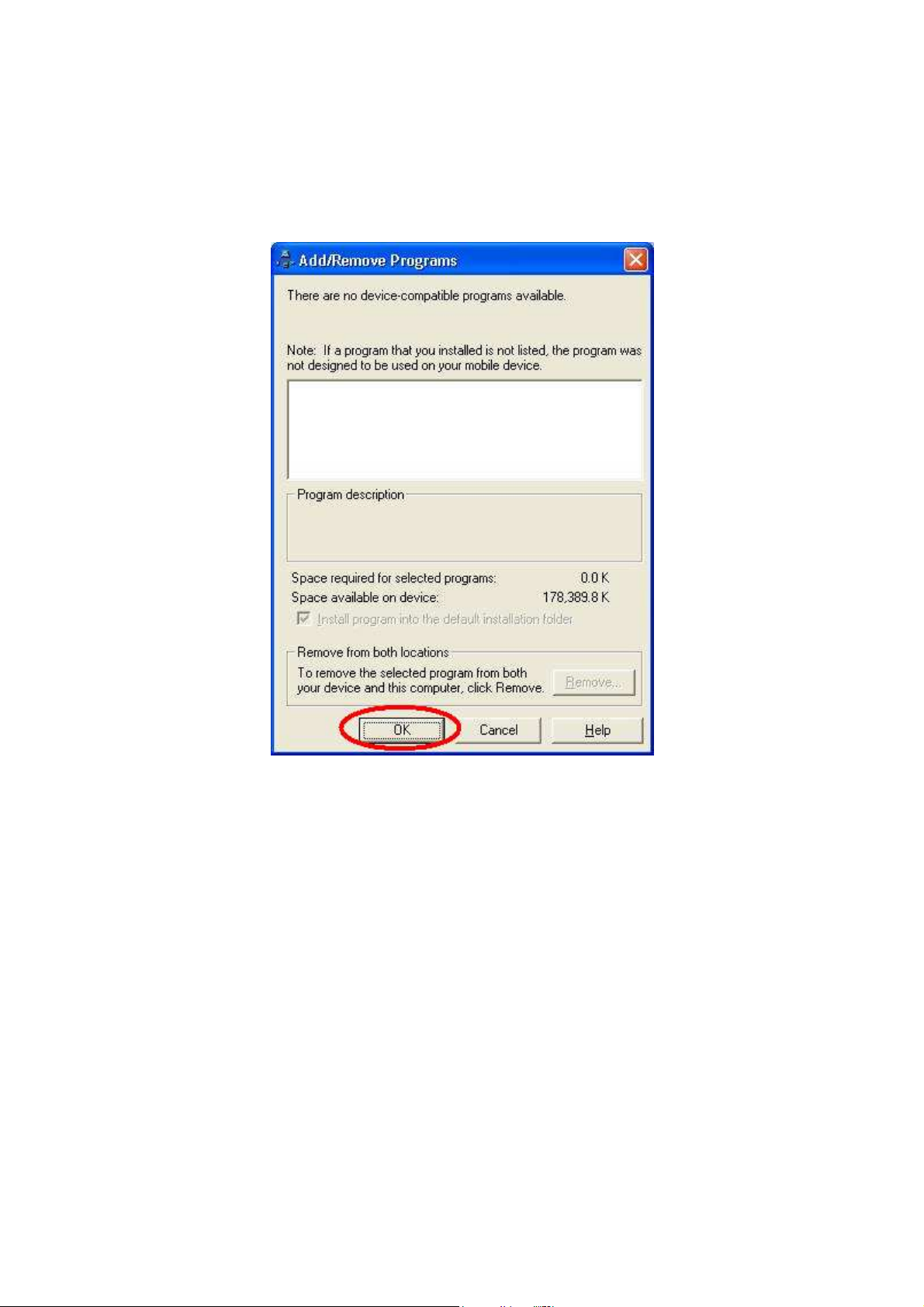

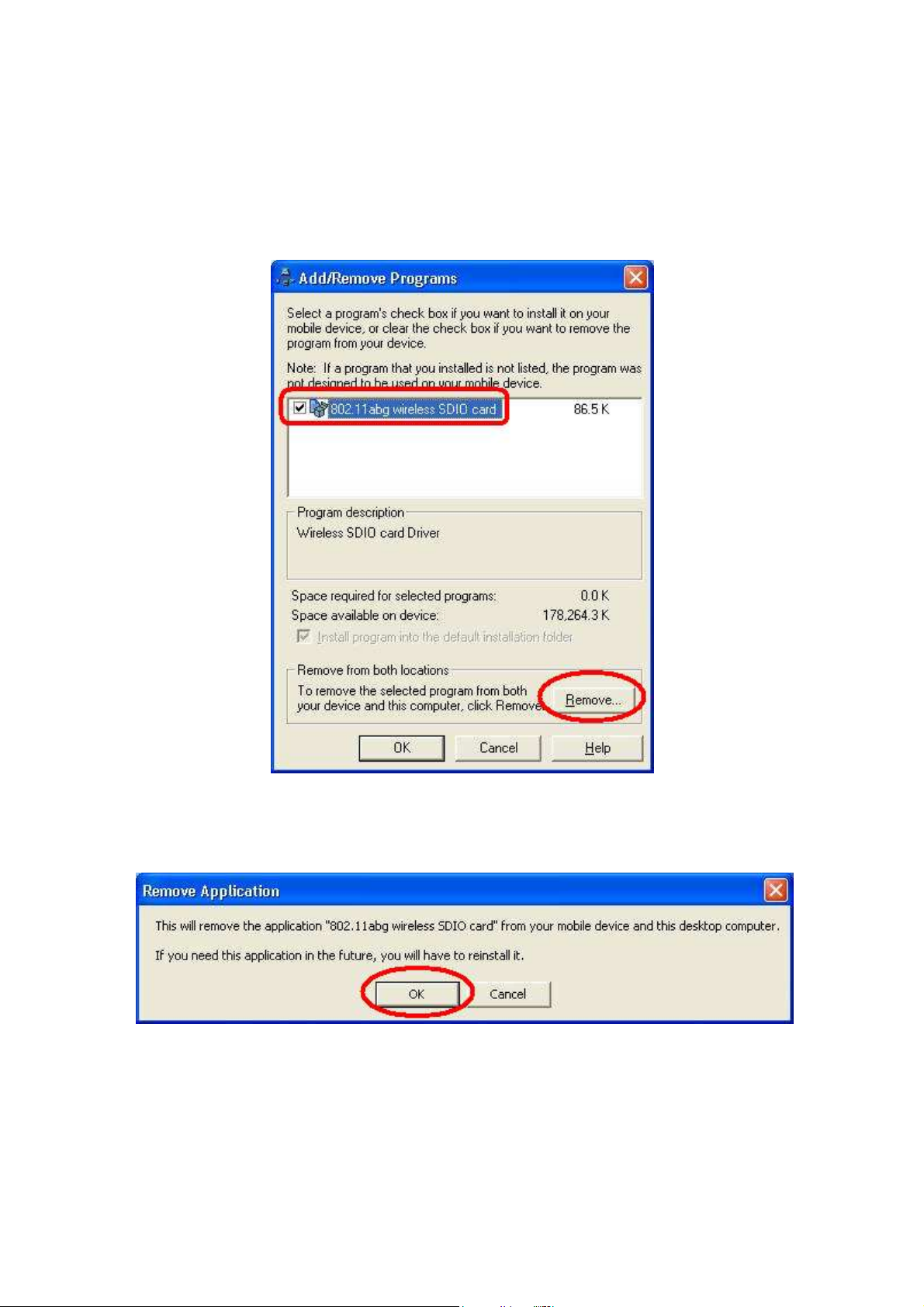

Removing the Driver............................................................................................................9

PACKAGE CONTENTS & S

PACKAGE CONTENTS & SYSTEM

PACKAGE CONTENTS & SPACKAGE CONTENTS & S

1. Manual (In CD-ROM )

2. Drivers and configuration utilities on CD-ROM

3. Quick Install Guide

4. Product Device
If you miss any of these items please contact your agent.

FFFFEATURES

EATURES

EATURESEATURES

The 802.11abg Wireless SDIO Card is a wireless network card that complies with the IEEE 802.11abg
standard on wireless LANs (Revision B).

 SDIO Card size as 40 (L) x 24 (W) x 2.1 (H) mm
 SDIO Interface
 Supports the IEEE802.11a/b/g wireless

YSTEM REQUIREMENTS

YSTEMYSTEM

REQUIREMENTS

REQUIREMENTSREQUIREMENTS

 High radio performance
 Low power consumption
 Data rates of 6-54Mbps for 802.11a and 1-54Mbps for 802.11g
 Embedded 40MHz reference clock supported
 Sleep clock using 32 KHz clock
 Ready OS support as WinCE 5.0 and 6.0, Linux 2.6.9

SD WLAN MODULE WIRELESS NETWORKS

SD WLAN Card Network Scenarios

The 802.11abg Wireless SDIO Card enables you to:

• Connect your computer to a Small Office/Home Office (SOHO) network that includes Wi-Fi access

points

• Connect your computer to a Local Area Network (LAN) Infrastructure that includes the 802.11abg

Wireless SDIO Card, or other IEEE 802.11b compliant LAN systems

Wireless stations can be equipped with the 802.11abg Wireless SDIO Card, but also with other WLAN PC
Cards. Both of them share the same wireless functionality.

1

Home Networking

With 802.11abg Wireless SDIO Card, wireless access to the Internet or other devices is at your fingertips.
All you need to do is connect the 802.11abg Wireless SDIO Card to an existing access point that may be
connected to the external Cable or xDSL modems and you are ready to:



Share files and printers, and



Access the Internet

Enterprise Networking

With the Wi-Fi certified access point in the corporate network system, you can connect to a corporate Local
Area Network (LAN) infrastructure to access all network facilities in wireless. LAN Infrastructures may
either be:



Stand-alone wireless LANs



Wireless network infrastructures connected to an existing Ethernet network

2
