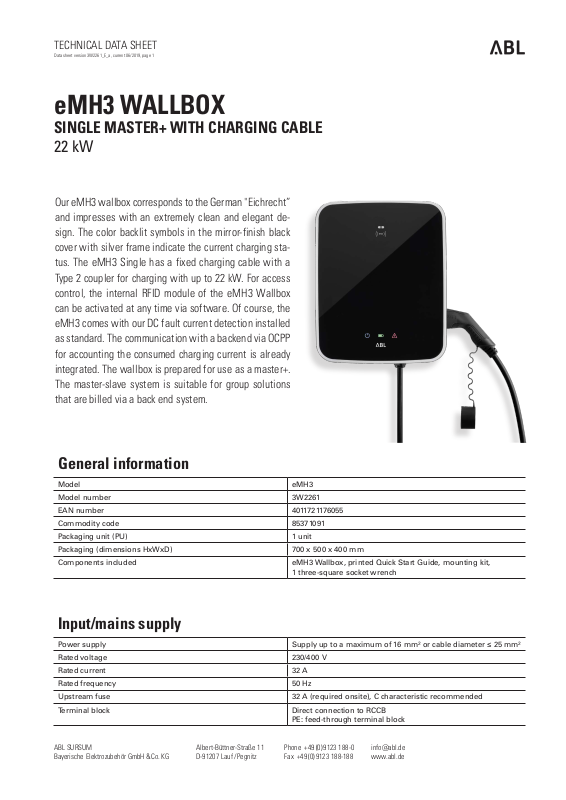

ABL eMH3 WALLBOX SINGLE MASTER+ WITH CHARGING CABLE TECHNISCHES DATENBLATT

TECHNICAL DATA SHEET

Data sheet version 3W2261_E_a, current 06/2019, page 1

eMH3 WALLBOX

SINGLE MASTER+ WITH CHARGING CABLE

22 kW

Our eMH3 wallbox corresponds to the German "Eichrecht”
and impresses with an extremely clean and elegant de­sign. The color backlit symbols in the mirror-finish black
cover with silver frame indicate the current charging sta­tus. The eMH3 Single has a fixed charging cable with a
Type 2 coupler for charging with up to 22 kW. For access
control, the internal RFID module of the eMH3 Wallbox
can be activated at any time via software. Of course, the
eMH3 comes with our DC fault current detection installed
as standard. The communication with a backend via OCPP
for accounting the consumed charging current is already
integrated. The wallbox is prepared for use as a master+.
The master-slave system is suitable for group solutions
that are billed via a back end system.

General information

Model eMH3

Model number 3W2261

EAN number 4011721176055

Commodity code 85371091

Packaging unit (PU) 1 unit

Packaging (dimensions HxWxD) 700 x 500 x 400 mm

Components included eMH3 Wallbox, printed Quick Start Guide, mounting kit,

1 three-square socket wrench

Input/mains supply

Power supply

Rated voltage 230/400V

Rated current 32A

Rated frequency 50Hz

Upstream fuse 32A (required onsite), C characteristic recommended

Terminal block Direct connection to RCCB

Supply up to a maximum of 16 mm² or cable diameter ≤ 25 mm²

PE: feed-through terminal block

ABL SURSUM
Bayerische Elektrozubehör GmbH & Co. KG

Albert-Büttner-Straße 11
D-91207 Lauf / Pegnitz

Phone [phone]
Fax [phone]

[e-mail]
www.abl.de

TECHNICAL DATA SHEET

Data sheet version 3W2261_E_a, current 06/2019, page 2

Output/vehicle connection

Connection system Single charging cable with Type 2 connector in acc. with

Output voltage 230/400V

Max. charging current 32A

Maximum output 22kW

IEC62196-2, ca. 6m

Protection/integrated components

RCCB RCCB, TypeA, 30mA

DC fault current detection electronic, I

Energy meter MID approved

Calibration law module Logging Gateway (LGW)

Load switching Installation contactor, 4-pole, 40A

Welding detection Contactor welding switches o the charging point

Temperature monitoring internal, charging current reduction or shut down

Δn d.c.

≥ 6 mA

Charging monitor/status indicators

Charge controller EVCC2

Indication (operating state/fault indication) LED

Access control RFID MIFARE, QR code, SMS or smartphone app

Communication EV in acc. with IEC 61851-1 Mode 3

Communication EVSE RS485

Backend communication LTE - OCPP 1.6 and 1.5, transport via SOAP or WebSockets

Standards/guidelines

IEC 61851-1

IEC 61439-7 ACSEV

in acc. with MessEV Modul B

Operating conditions

Storage temperature -30 to 85°C

Operating temperature -25 to 40°C in acc. with DIN EN 61851-1

Relative humidity 5 to 95%, no condensation

Class of protection I

Overvoltage category III

Degree of pollution 3

Degree of protection (housing) IP54

Impact strength IK08

Maximum elevation ≤ 2,000m AMSL

Power dissipation 7W

ABL SURSUM
Bayerische Elektrozubehör GmbH & Co. KG

Albert-Büttner-Straße 11
D-91207 Lauf / Pegnitz

-30 to 50°C with integrated derating function
