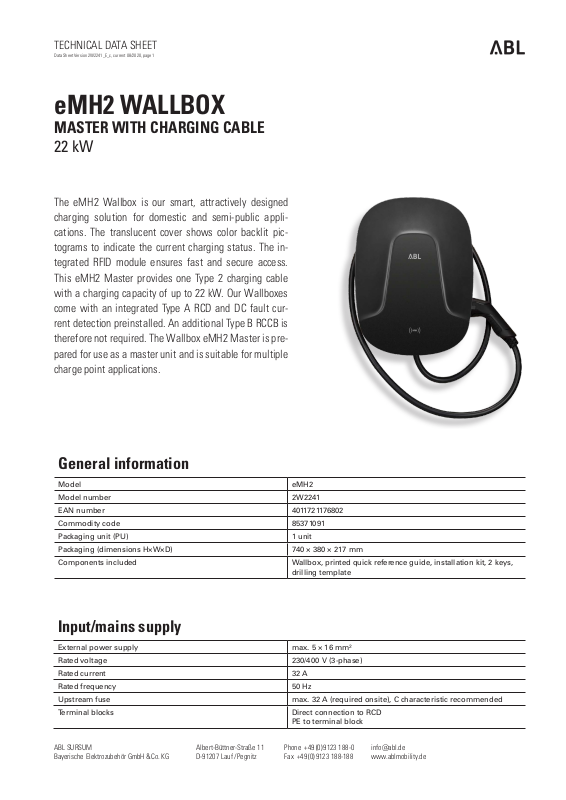

ABL eMH2 WALLBOX MASTER WITH CHARGING CABLE TECHNISCHES DATENBLATT

TECHNICAL DATA SHEET

Data Sheet Version 2W2241_E_c, current 08/2020, page 1

eMH2 WALLBOX

MASTER WITH CHARGING CABLE

22 kW

The eMH2 Wallbox is our smart, attractively designed
charging solution for domestic and semi-public appli­cations. The translucent cover shows color backlit pic­tograms to indicate the current charging status. The in­tegrated RFID module ensures fast and secure access.
This eMH2 Master provides one Type 2 charging cable
with a charging capacity of up to 22 kW. Our Wallboxes
come with an integrated Type A RCD and DC fault cur­rent detection preinstalled. An additional Type B RCCB is
therefore not required. The Wallbox eMH2 Master is pre­pared for use as a master unit and is suitable for multiple
charge point applications.

General information

Model eMH2

Model number 2W2241

EAN number 4011721176802

Commodity code 85371091

Packaging unit (PU) 1 unit

Packaging (dimensions H×W×D) 740×380×217mm

Components included Wallbox, printed quick reference guide, installation kit, 2 keys,

drilling template

Input/mains supply

External power supply max. 5×16mm²

Rated voltage 230/400V (3-phase)

Rated current 32A

Rated frequency 50Hz

Upstream fuse max. 32A (required onsite), C characteristic recommended

Terminal blocks Direct connection to RCD

PE to terminal block

ABL SURSUM
Bayerische Elektrozubehör GmbH & Co. KG

Albert-Büttner-Straße 11
D-91207 Lauf / Pegnitz

Phone [phone]
Fax [phone]

[e-mail]
www.ablmobility.de

TECHNICAL DATA SHEET

Data Sheet Version 2W2241_E_c, current 08/2020, page 2

Output/vehicle connection

Connection system Single charging cable with Type 2 connector in acc. with

Output voltage 230/400V

Max. charging current 32A

Maximum output 22kW

IEC62196-2, ca. 6.35m

Protection/integrated components

RCCB RCD, TypeA, 30mA

DC fault current detection electronic, I

Energy meter MID approved (displayed in side window)

Load switching Contactor, 4-pole

Weld detection Contactor welding trips RCD

Temperature monitoring internal, charging current reduction or shut down

Δn d.c.

≥ 6 mA

Charging monitor/status indicators

Display (operating state/error codes) LED

Access control RFID card, QR code or smartphone app

Communication in acc. with IEC 61851-1 Mode 3

Master/Slave communication RS485

Backend communication OCPP 1.6 via LAN or LTE/WIFI (optional)

Standards/guidelines

IEC 61851-1

IEC 61439-7

IEC 62196-1

IEC 62196-2

Operating conditions

Storage temperature -30 to 85°C

Operating temperature -30 to 40°C

Relative humidity 5 to 95%, no condensation

Class of protection I

Overvoltage category III

Degree of pollution 3

Degree of protection (housing) IP54

Impact strength IK08

Maximum elevation ≤ 2,000 m AMSL

Power dissipation n/a
