ABL Beta User Manual

Accessories Auxiliary Lights

Beta

• auxiliary halogen full beam light

• compact rectangular size

Premium lighting solutions

Premium lighting solutions

Accessories - Auxiliary Lights

Beta

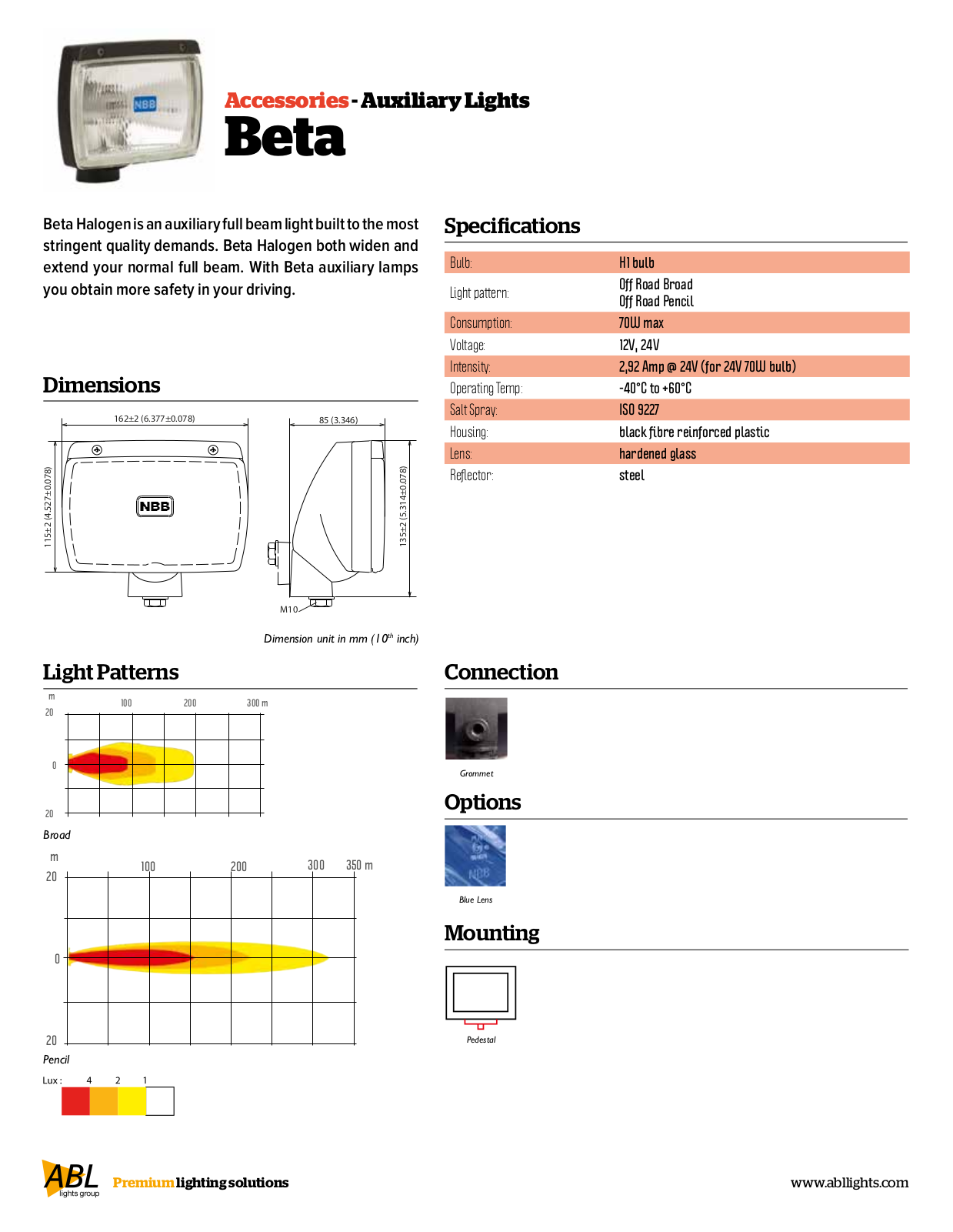

Beta Halogen is an auxiliary full beam light built to the most
stringent quality demands. Beta Halogen both widen and
extend your normal full beam. With Beta auxiliary lamps
you obtain more safety in your driving.

Dimensions

162±2 (6.377±0.078)

115±2 (4.527±0.078)

Dimension unit in mm (10th inch)

85 (3.346)

135±2 (5.314±0.078)

M10

Light Patterns

m

20

100 300 m

200

Specications

Bulb:

Light pattern:

Consumption: 70W max
Voltage:
Intensity:
Operating Temp:
Salt Spray: ISO 9227
Housing: black fibre reinforced plastic
Lens:
Reflector:

H1 bulb
Off Road Broad

Off Road Pencil

12V, 24V
2,92 Amp @ 24V (for 24V 70W bulb)

-40°C to +60°C

hardened glass
steel

Connection

0

20

Broad

m

20

0

20

Pencil

Grommet

Options

350 m

100

200

300

Blue Lens

Mounting

Pedestal

Premium lighting solutions www.abllights.com
