Page 1
Accessories Auxiliary Lights
Alpha 225 Xenon
• auxiliary xenon full beam light
• reinforced plastic housing
• ECE LED pilot light
Premium lighting solutions
Premium lighting solutions
Page 2

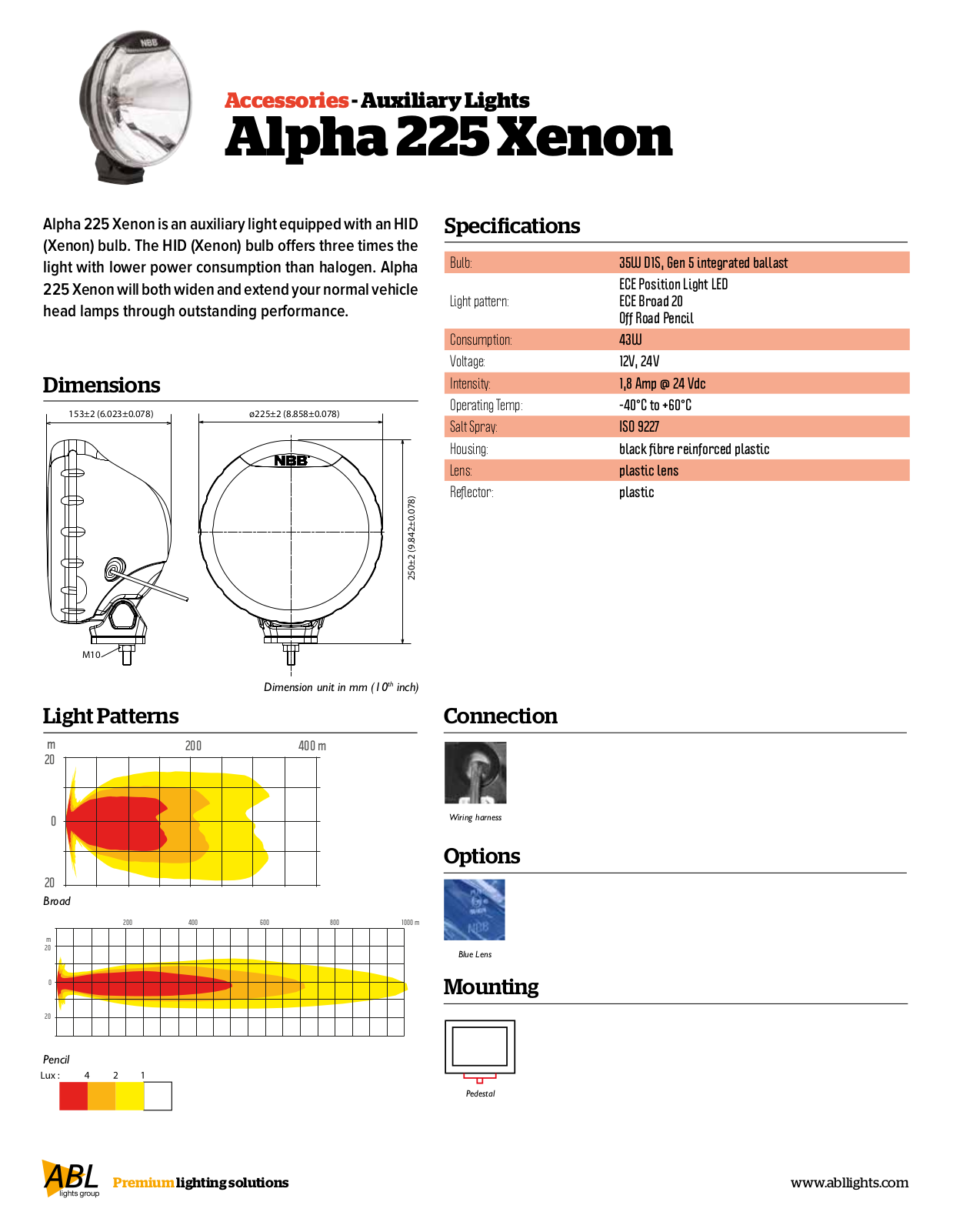

Accessories - Auxiliary Lights
Alpha 225 Xenon
Alpha 225 Xenon is an auxiliary light equipped with an HID
(Xenon) bulb. The HID (Xenon) bulb oers three times the
light with lower power consumption than halogen. Alpha
225 Xenon will both widen and extend your normal vehicle
head lamps through outstanding performance.
Dimensions
153±2 (6.023±0.078)
M10
ø225±2 (8.858±0.078)
Specications
Bulb:
Light pattern:
Consumption: 43W
Voltage: 12V, 24V
Intensity:
Operating Temp:
Salt Spray: ISO 9227
Housing: black fibre reinforced plastic
Lens:
Reflector: plastic
250±2 (9.842±0.078)
35W D1S, Gen 5 integrated ballast
ECE Position Light LED
ECE Broad 20
Off Road Pencil
1,8 Amp @ 24 Vdc
-40°C to +60°C
plastic lens
Light Patterns
m
20
0
20
Broad
200 400 600 800 1000 m
m
20
0
20
Pencil
Dimension unit in mm (10th inch)
Connection
200 400 m
Wiring harness
Options
Blue Lens
Mounting
Pedestal
Premium lighting solutions www.abllights.com
