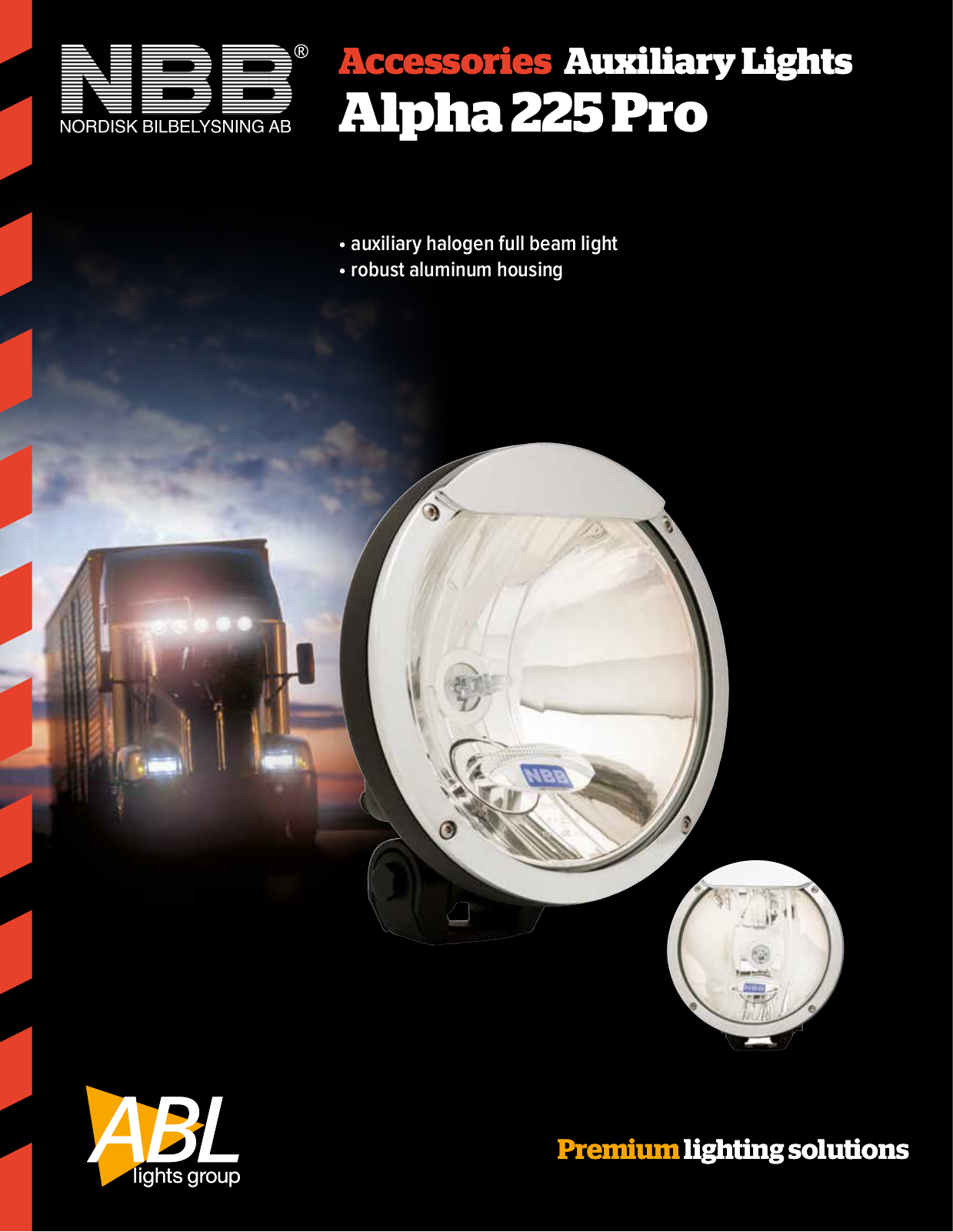

ABL Alpha 225 Pro User Manual

Accessories Auxiliary Lights

Alpha 225 Pro

• auxiliary halogen full beam light

• robust aluminum housing

Premium lighting solutions

Premium lighting solutions

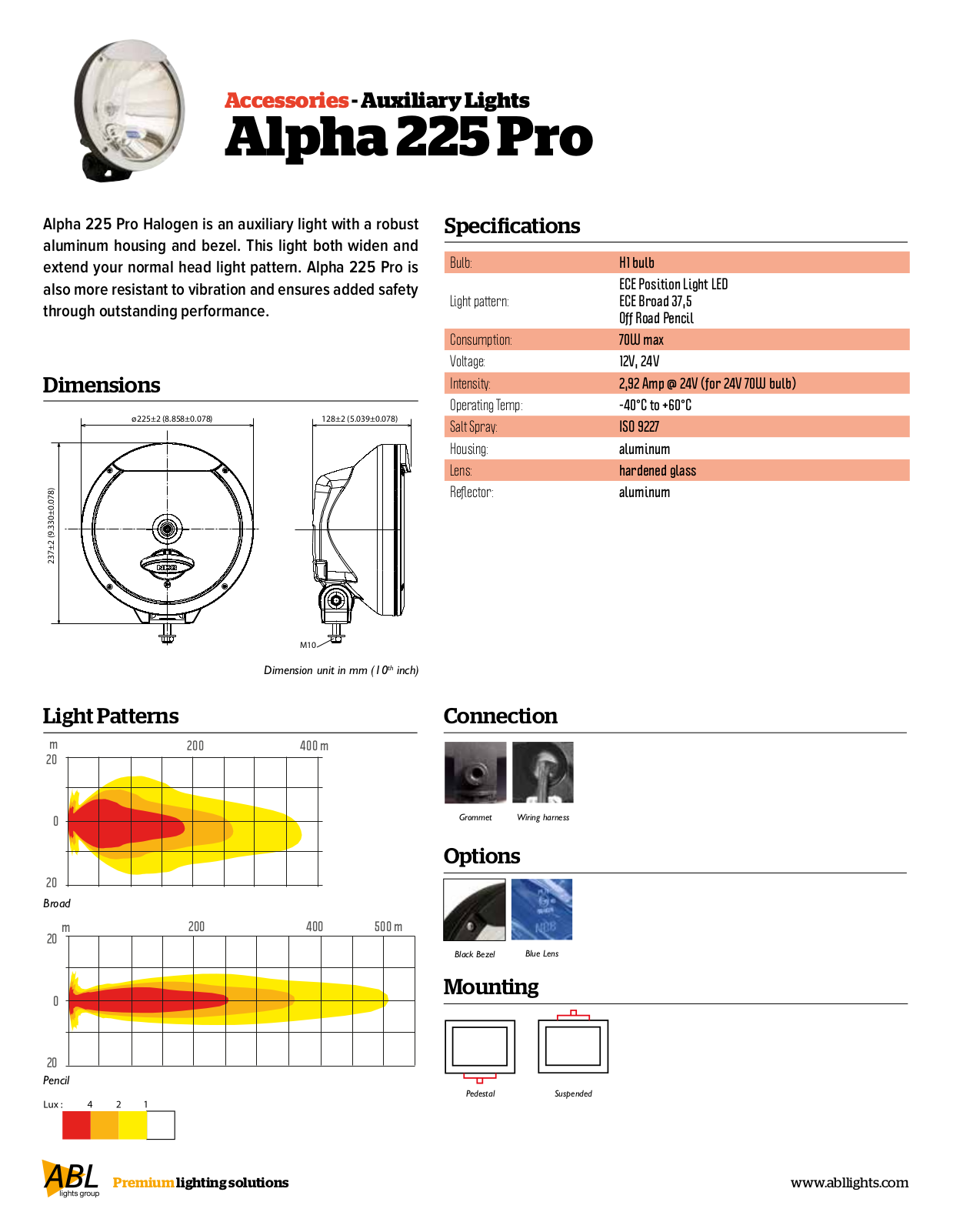

Accessories - Auxiliary Lights

Alpha 225 Pro

Alpha 225 Pro Halogen is an auxiliary light with a robust
aluminum housing and bezel. This light both widen and
extend your normal head light pattern. Alpha 225 Pro is
also more resistant to vibration and ensures added safety
through outstanding performance.

Dimensions

ø225±2 (8.858±0.078)

237±2 (9.330±0.078)

Dimension unit in mm (10th inch)

128±2 (5.039±0.078)

M10

Specications

Bulb:

Light pattern:

Consumption: 70W max
Voltage: 12V, 24V
Intensity:
Operating Temp:
Salt Spray: ISO 9227
Housing: aluminum
Lens:
Reflector: aluminum

H1 bulb
ECE Position Light LED

ECE Broad 37,5
Off Road Pencil

2,92 Amp @ 24V (for 24V 70W bulb)

-40°C to +60°C

hardened glass

Light Patterns

m

20

0

20

Broad

m

20

0

20

Pencil

200 400 m

200 400 500 m

Connection

Grommet Wiring harness

Options

Black Bezel

Blue Lens

Mounting

Pedestal

Suspended
