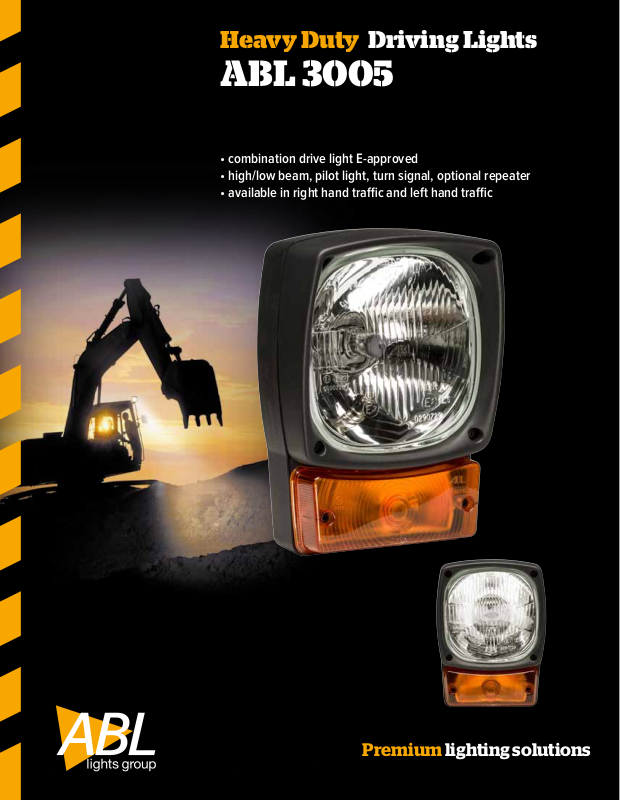

Heavy Duty Driving Lights
ABL 3005
• combination drive light E-approved
• high/low beam, pilot light, turn signal, optional repeater
• available in right hand trac and left hand trac
Premium lighting solutions
95±2 (3.740)
Heavy Duty - Driving Lights
ABL 3005
The ABL 3005 combination drive light is the choice for
a High/low beam headlight with intergrated turn signal and
pilot light. This light is E-approved for right hand and left
hand trac.
Dimensions
128±2 (5.039)
154±2 (6.062)
208±2 (8.188)
154±2 (6.062)
45±2
(1.771)
M10
Dimension unit in mm (10th inch)
Specications
Bulb:
Light pattern:
Voltage: 12V, 24V
Intensity: 2,92 Amp @ 24V (Low Beam)
Operating Temp: -40°C to +85°C
Salt Spray:
Housing: black fibre reinforced plastic
Lens: glass lens
H4 - P21 and T8
ECE R20 High / Low Beam
ECE R6 Turn Signal
ECE R7 Pilot Light
ECE R6 optional repeater
ISO 9227
Connection
Grommet
Mounting
Rear Swivel
