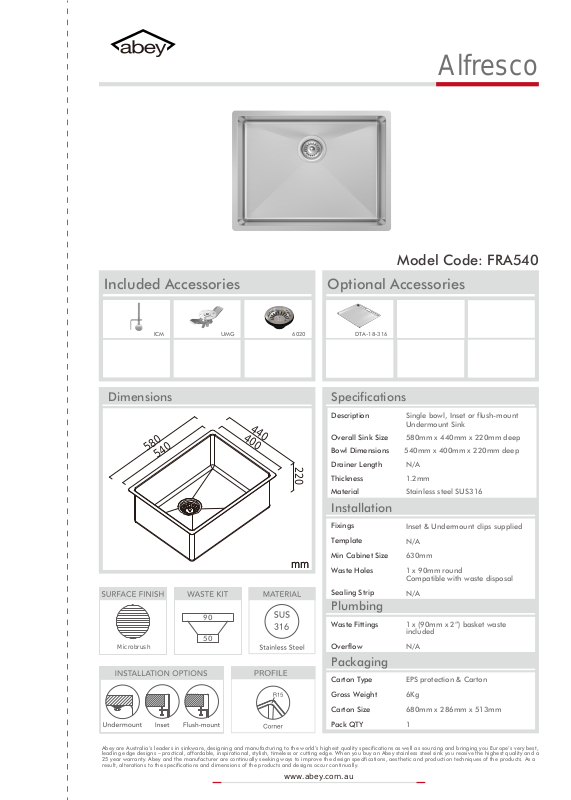

Alfresco
Model Code: FRA540
Included Accessories
ICM
Dimensions
580
540
90
Microbrush
50
440
400
316
6020
220
mm
mm
Optional Accessories
DTA-18-316UMG
SC380ZF-S
Specifications
Description
Overall Sink Size
Bowl Dimensions
Drainer Length
Thickness
Material
Installation
Fixings
Template
Min Cabinet Size
Waste Holes
Sealing Strip
Plumbing
Waste Fittings
Overflow
Single bowl, Inset or flush-mount
Undermount Sink
580mm x 440mm x 220mm deep
540mm x 400mm x 220mm deep
N/A
1.2mm
Stainless steel SUS316
Inset & Undermount clips supplied
N/A
630mm
1 x 90mm round
Compatible with waste disposal
N/A
1 x (90mm x 2”) basket waste
included
N/A
Packaging
Carton Type
Gross Weight
Carton Size
Pack QTY
Abey are Australi a’s leader s in sinkware, designing and manufacturing to the world’s highest quality specific ations as well as sourcing and bringing you Europe’s very bes t,
leading edge designs – practical, affordable, inspirational, stylish, timeless or cutting edge. When you buy an Abey stainless steel sink you recei ve the highest quality and a
25 year warranty. Abey and the manufacturer are contin ually seeking ways to improve the design specifications, aesthetic and production techniques of the prod ucts. As a
result, alterations to the specifications and dimensions of the products and designs occur continually.
www.abey.com.au
EPS protection & Carton
6Kg
680mm x 286mm x 513mm
1
