Page 1

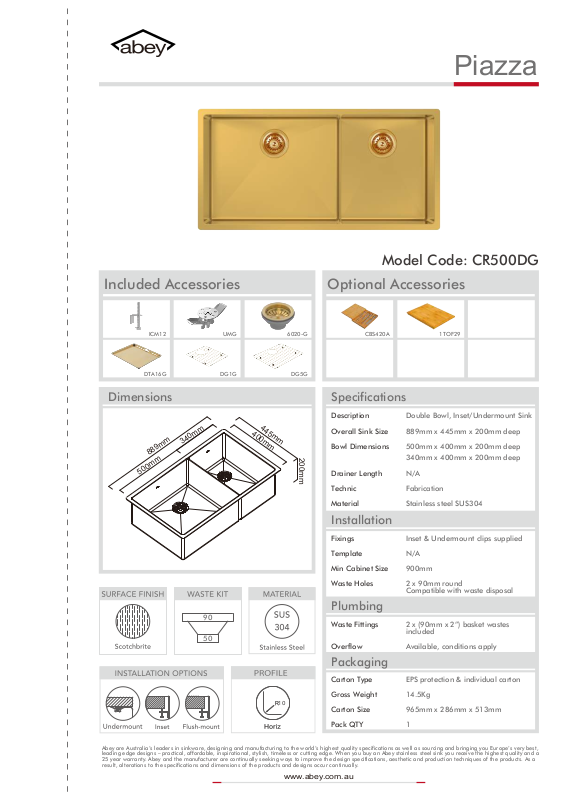

Piazza
Model Code: CR500DG
Included Accessories
DTA16G
Dimensions
340mm
889mm
500mm
DG1G DG5G
445mm
400mm
6020-G
200mm
Optional Accessories
1TOF29CBS420AUMGICM12
Specifications
Description
Overall Sink Size 889mm x 445mm x 200mm deep
Bowl Dimensions 500mm x 400mm x 200mm deep
Drainer Length N/A
Technic Fabrication
Material Stainless steel SUS304
Installation
Fixings
Template
Min Cabinet Size
Waste Holes
Double Bowl, Inset/Undermount Sink
340mm x 400mm x 200mm deep
Inset & Undermount clips supplied
N/A
900mm
2 x 90mm round
Compatible with waste disposal
Plumbing
90
50
Waste Fittings
Overflow
2 x (90mm x 2”) basket wastes
included
Available, conditions apply
Packaging
Carton Type
10
Abey are Australia’s leader s in sin kware, designing and manufacturing to the world’s highest quality specifications as well as sourcing and bri nging you Europe’s very best,
leading edge designs – practical, affordable, inspirational, stylish, timeless or cutting edge. When you buy an Abey stainless steel sink you receive the highest quality and a
25 year warranty. Abey and the manufac turer are continually seeking ways to improve the design specifications, aesthetic and production techniques of the produ cts. As a
result, alterations to the specifications and dim ensions of the products and designs occur continually.
www.abey.com.au
Gross Weight
Carton Size
Pack QTY
EPS protection & individual carton
14.5Kg
965mm x 286mm x 513mm
1
